YAMAHA / DTX532KFS

Variations

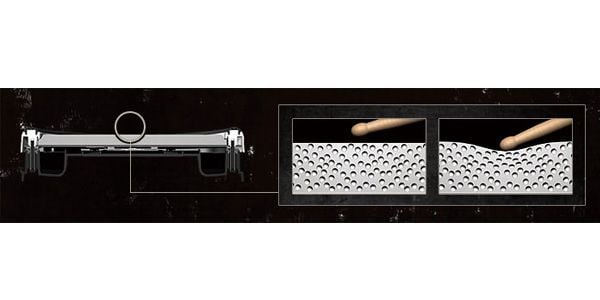

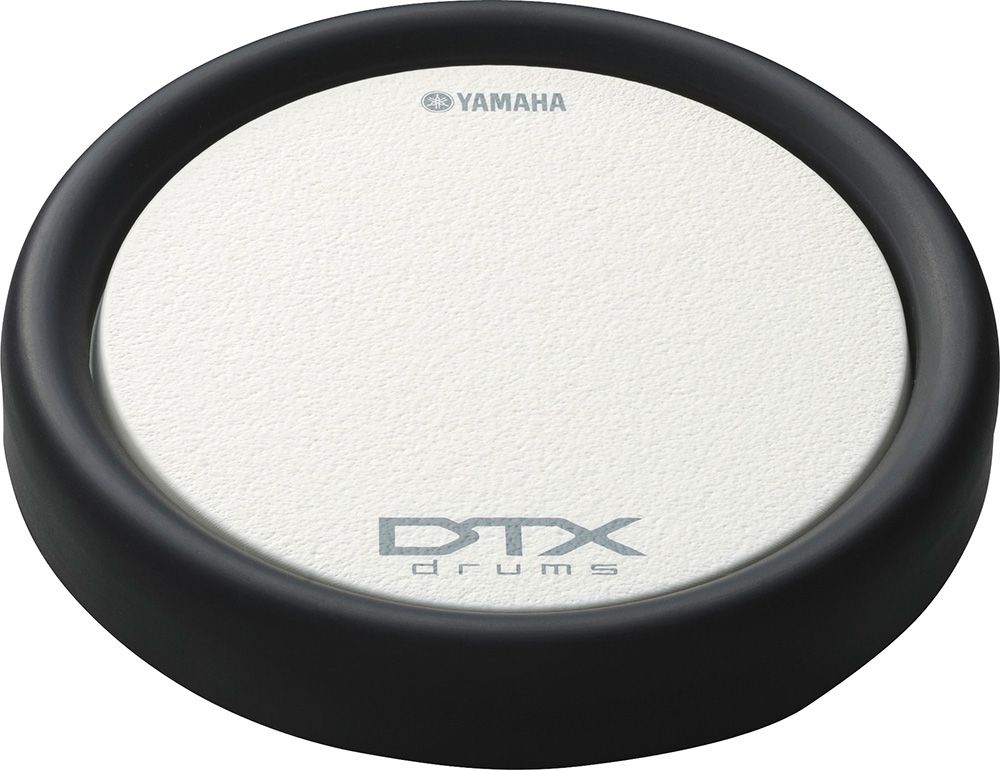

The DTX532K uses the DTX-PAD XP80 as the snare drum. The crash/ride cymbal is equipped with a three-zone pad and the RHH135 real hi-hat pad that can be moved up and down to support the drummer's expressive power.

■ Electronic drum set
■ DTX502 series
■ With throne

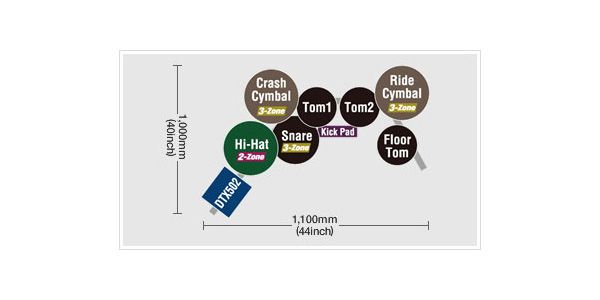

■ Set contents:

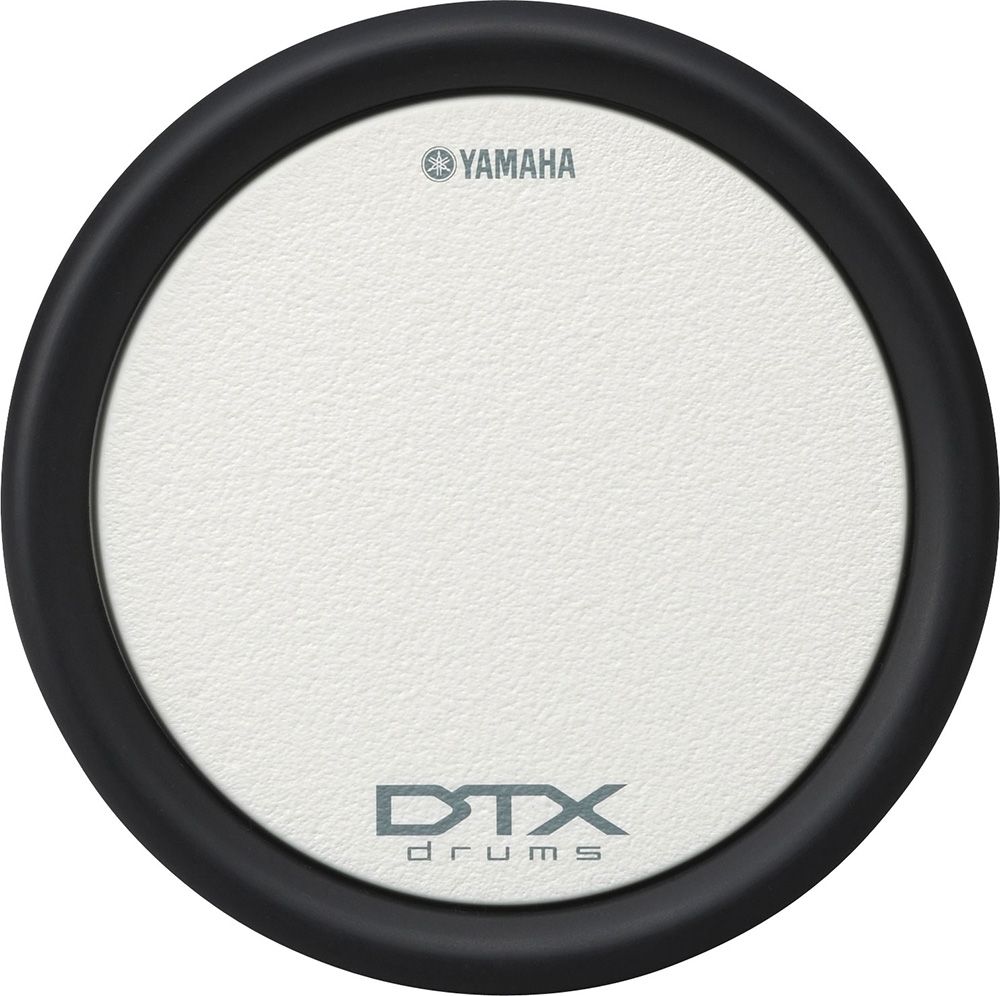

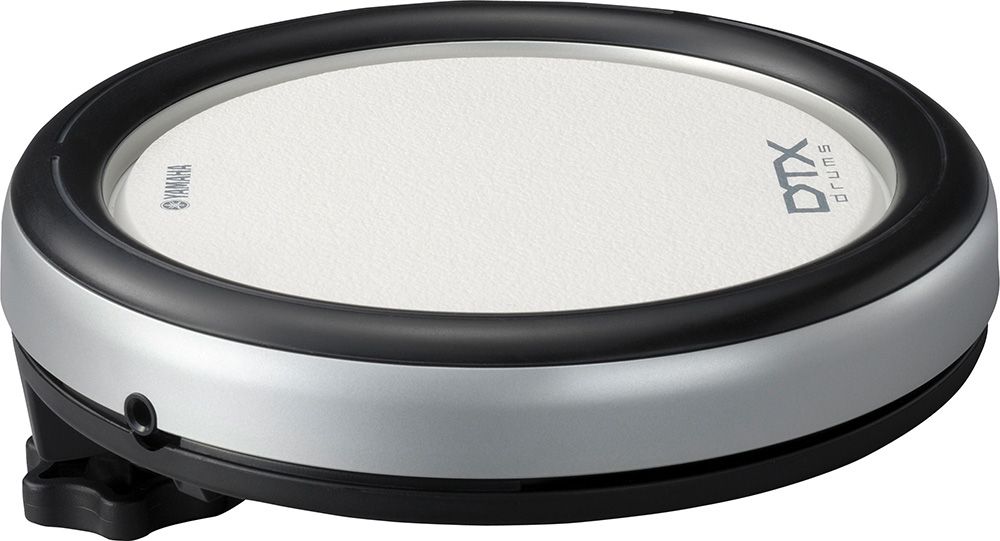

・ Snare: XP80
・ Tom: TP70
・ Floor Tom: TP70

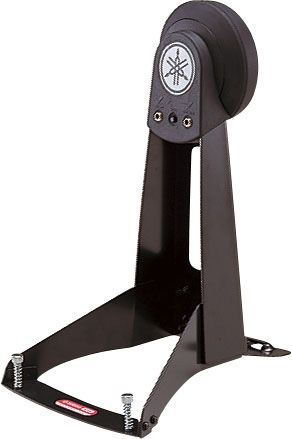

・ Kick Pad: KP65

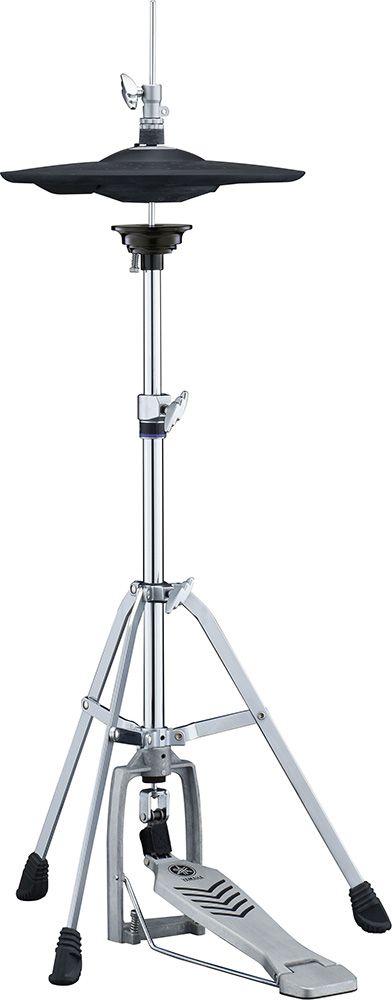

・ HH Pad: RHH135 + HS650A

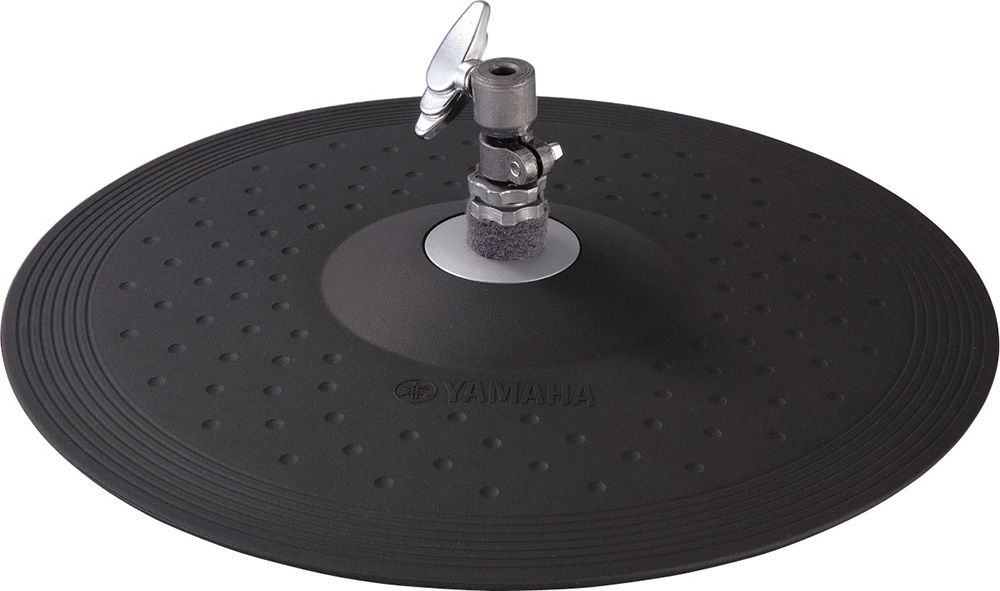

・ Crash Cymbal: PCY135
・ Ride Cymbal ： PCY135

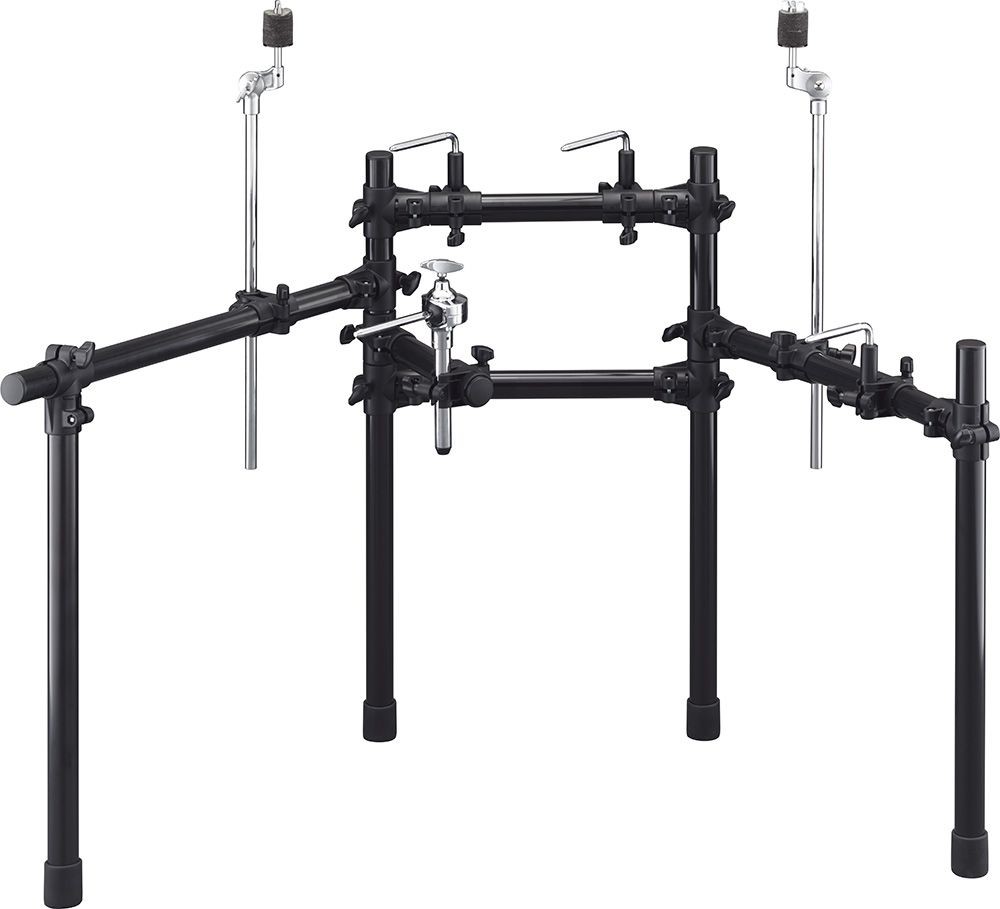

・ Rack system: RS502
・ Drum trigger module: DTX502
・ Foot pedal: FP6110A
・ Drum Sloan: DS550U

■ Sound module:
・ Sound source method: AWM2
・ Maximum polyphony: 32 sounds
・ Effects: Reverb: 9 types, master equalizer
・ Number of drum kits: 50 preset kits, 50 user kits (capacity: 1MB)
・ Number of voices: 691 drum / percussion sounds, 128 keyboard sounds
・ Number of readable waves: 20 (16 bits, WAV / AIFF format, 1MB capacity)
・ Trigger setup: 14 presets, 16 users
・ Sequencer
Number of songs: 1 demo song, 37 practice songs, 22 pad songs, 40 user songs
・ Sequencer
Capacity: about 104,000 sounds (capacity: 1MB)
Note resolution: 96 resolution per quarter note
Recording method: Real time
・ Click
Number of user clicks: 30
Tempo: 30-300 / min, tap tempo function
Beat: 1/4 to 16/4, 1/8 to 16/8, 1/16 to 16/16
Timing: Accent, quarter note, eighth note, sixteenth note, eighth triplet
・ Metronome: tempo 30-300, tap tempo function, accent, quarter note, eighth note, sixteenth note, triplet
Display: 16 characters x 2 lines LED with backlight, 3 digits 7 segment LED, tempo confirmation LED x 2

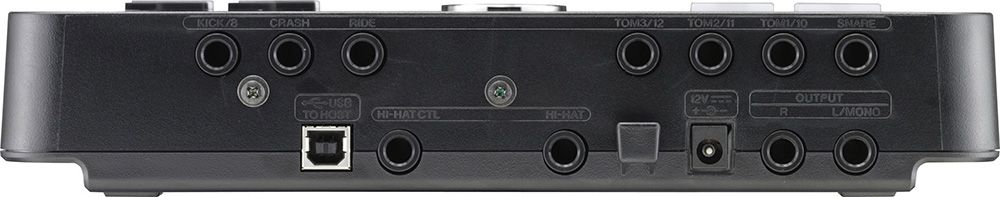

・ Connection terminals
Trigger input 1, 5, 6, 9 (stereo standard phone terminal, L: trigger, R: rim switch)
Trigger input 2/10, 3/11, 4/12, 7/8 (stereo standard phone terminal L: trigger, R: trigger)
Hi-hat control terminal
OUTPUT L / MONO, R (standard phone jack)
PHONES (stereo standard phone jack)
AUX IN (stereo mini connector)
USB (TO HOST)
DC IN
■ Power consumption: 8W
■ Dimensions and weight: 251mm (W) × 130mm (D) × 48mm (H), 610g
■ Accessories: Power adapter (PA-3C or equivalent recommended by YAMAHA), warranty card, instruction manual, module holder, module holder screws x2
