WESAUDIO / _TITAN

A high-quality 10-slot rack for API500 equipped with USB/LAN terminals, compatible with WesAudio's new ""ng500"".

■10-Slot Rack for API500 Series

_TITAN is a 10-slot power supply rack compatible with the API500 series, and is fully compatible with WesAudio's newly proposed ""ng500 (Next Generation 500 series)."" When combined with _TITAN, it enables remote or digital recall of GCon-compatible modules from an external environment via a single USB or Ethernet (LAN) cable.

■Key Features

- The GCon-compatible frame structure enables communication with multiple ""ng500 (Next Generation 500 series)""-compatible API500 modules via a single USB or LAN cable.

- Control up to 10 modules via USB or Ethernet (LAN) connection (UDP-based, single subnet)

- Stereo link management via the GConManager application

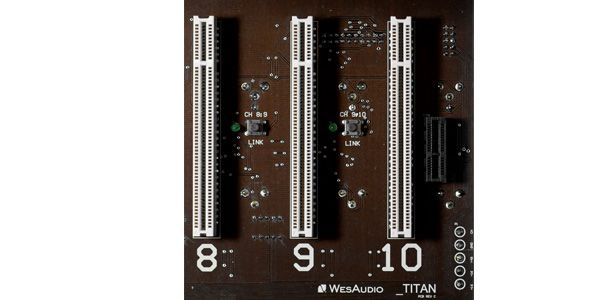

- Equipped with a special ""I.A.C."" (Internal Audio Connector) in slot 10. Future development of modules utilizing this connector will enable the realization of digital audio interfaces, analog summing modules, and more. Each slot can be individually activated via the GCon Manager. Each audio signal can be connected simultaneously via the rear-panel XLR or via I.A.C.

- Stereo linking between modules that support the GCon protocol (e.g., Mimas, Dione) is enabled using the Link button.

- Communication drivers, documentation, and software will be made public, allowing for the release of third-party products based on the ""ng500"" project.

- In addition to the standard API500 connectors for the 10 slots, an ng500-specific connector is also included.

- Supports remote firmware upgrades. Titan and other WesAudio ng500 modules support easy firmware updates via USB or Ethernet.

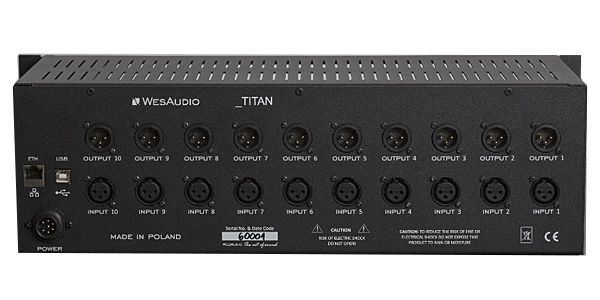

10 channels x XLR inputs and outputs

Internal stereo link switch (can also be controlled via GConManager)

Linear external power supply provides stable, high-capacity 5A power

Power mode switch (115/230V)

Specifications

SLOT: 10 slots
IN/OUT: 8 XLR
PORT: 1 USB port, 1 Ethernet (LAN) port
STEREO LINK SWITCH: 9 link switches (1:2, 2:3, 3:4, 4:5, 5:6, 6:7, 7:8, 8:9, 9:10)
POWER SUPPLY: Linear power supply (2-way) capable of delivering 5A of total current
SIZE: 3U
CURRENT CAPACITY:
Total for all slots: 2500mA = 2.5A
(Per slot: 250mA) × 10 slots)

+16V = 2.5A
-16V = 2.5A
+48V = 0.2A

This product is AC110-120V
