audio technica / ATM350D

This condenser microphone can be mounted directly on the rim of a snare or tom. Its high-input design, capable of handling a maximum sound pressure level of 159 dB, delivers low-distortion sound. Its unidirectional pattern blocks unwanted sounds from the rear and sides. It can also be switched to hypercardioid or omnidirectional with an interchangeable unit.

■Type: Back electret condenser
■Polar pattern: Cardioid
■Frequency response: 40-20,000Hz
■Low cutoff: 80Hz, 12dB/octave
■Sensitivity: -49dB (3.5mV) (0dB=1V/Pa, 1kHz)
■Output impedance: 200Ω
■Maximum input sound pressure level: 159dB SPL (1kHz THD1%)
■Dynamic range: 130dB (1kHz at Max SPL)
■Signal-to-noise ratio: 65dB (1kHz at 1Pa, A-weighted)
■Phantom power: 11V-52V DC, 3.5mA
■Switch: Flat, low cut
■Weight:
Microphone: 14.5g

Power module: 90g
■Dimensions Microphone: 37.8mm long, 12.2mm diameter
Power module: 92mm long, 18.9mm diameter
■Output connector: Power module: 3-pin XLR-M type
■Cord: 4.0m long (fixed to microphone), 3.2mm diameter, uses HIROSE HR10 type connector
■Optional replacement units: UE-O omnidirectional, UE-H hypercardioid

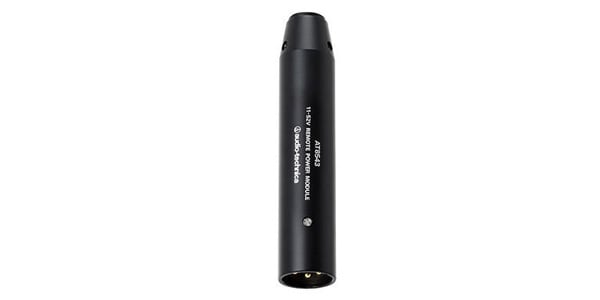

*Installed in the power module AT8543

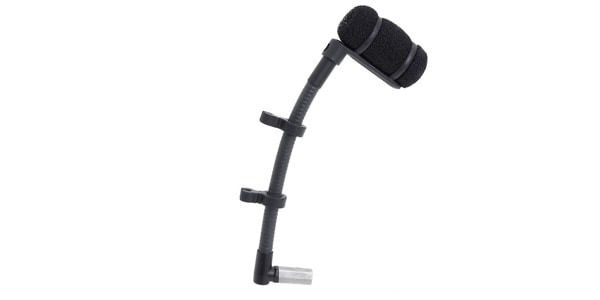

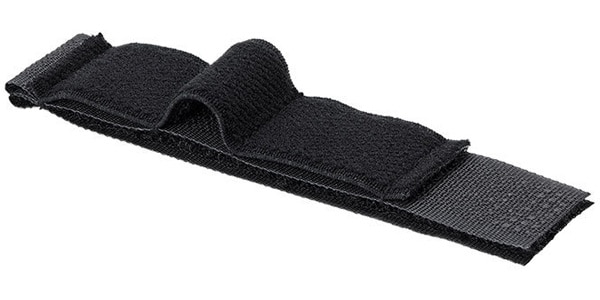

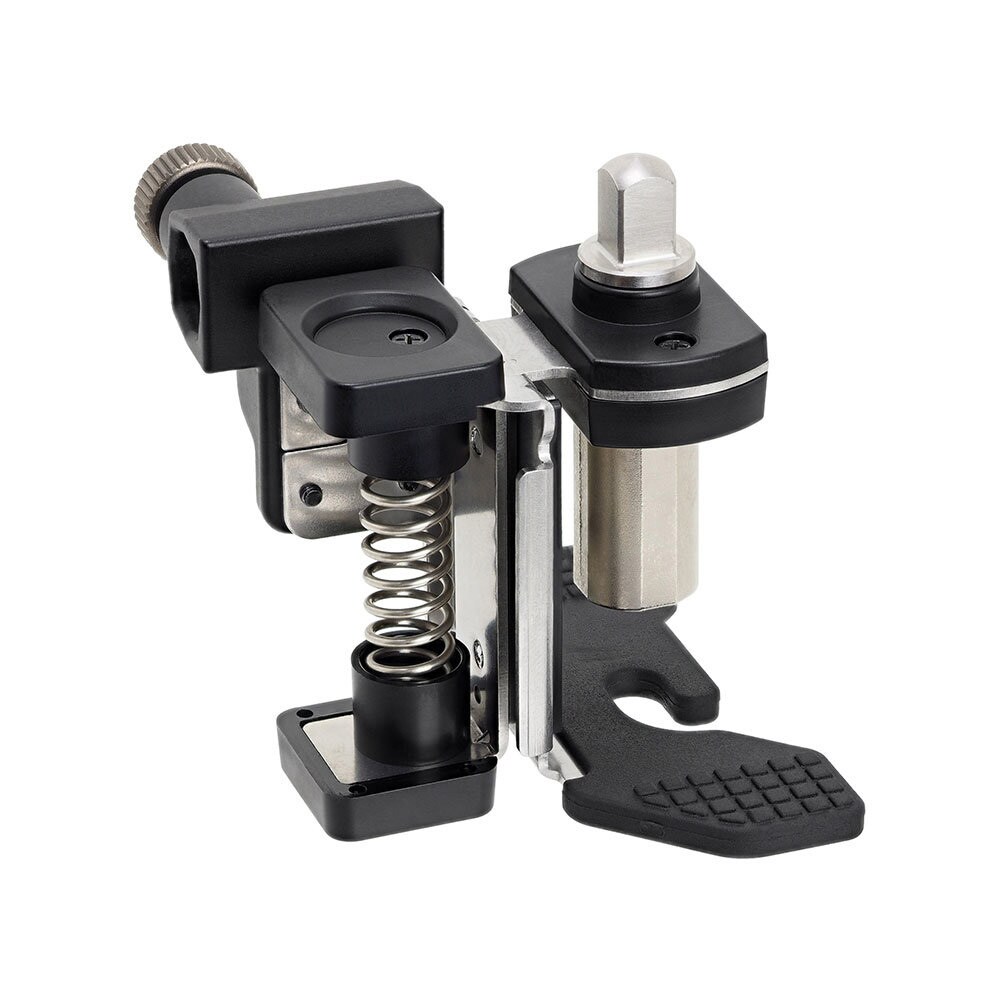

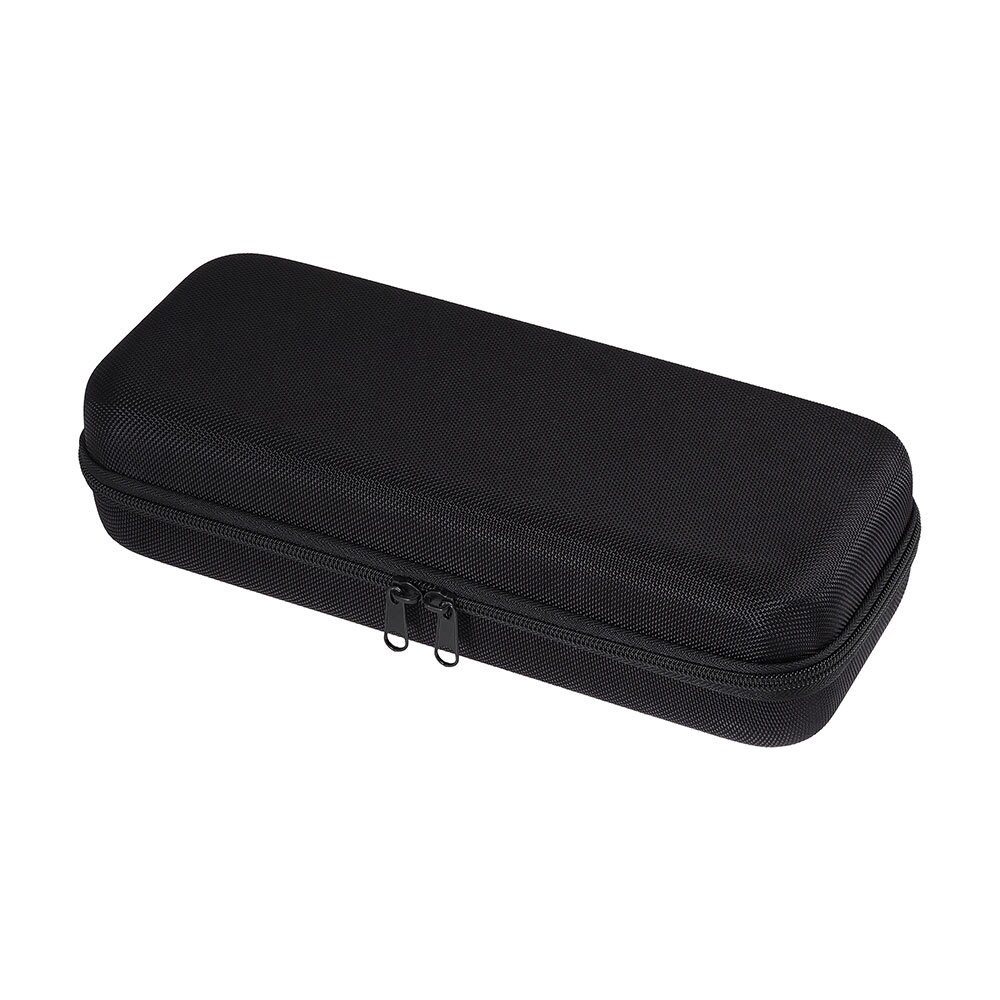

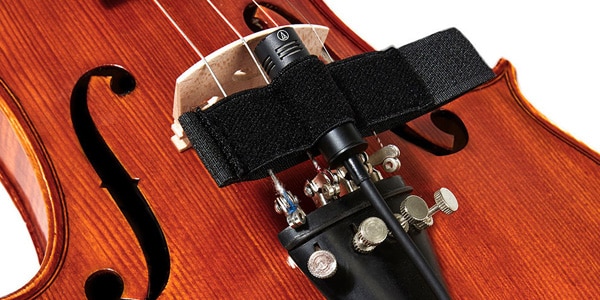

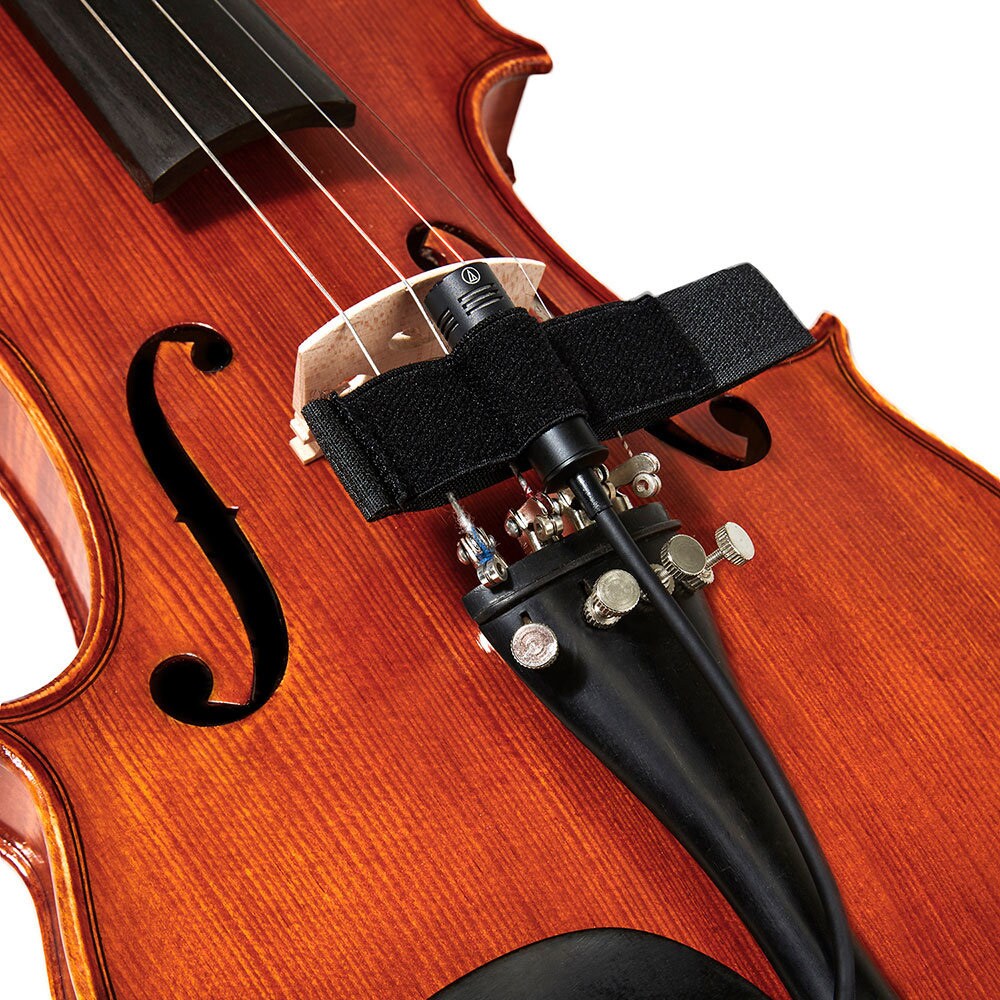

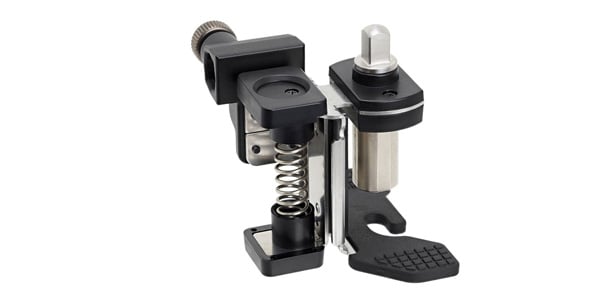

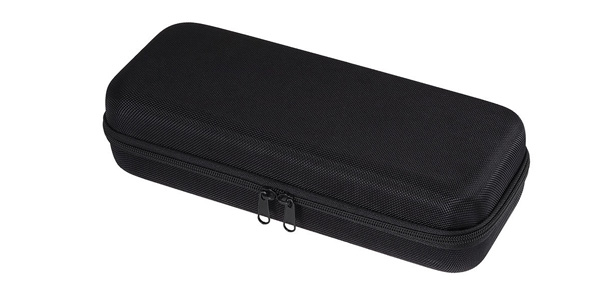

●Accessories: Gooseneck/Standard AT8490 (¥3,500 excluding tax), Drum Mount AT8491D (¥10,000 excluding tax), Power Module AT8543 (¥15,000 excluding tax), Violin Mount AT8468 (¥2,500 excluding tax), Hard case (¥3,000 excluding tax)
● Sold separately: UE-O Omnidirectional (¥10,000 excluding tax), UE-H Hypercardioid (¥10,000 excluding tax)
