audio technica / ATM350W

This compact condenser microphone is ideal for capturing woodwind and other instruments. It includes an adjustable, rubber-padded hook-and-loop strap for a secure grip. It also features a low-cut switch to reduce noise, delivering clear sound with high sound pressure levels and minimal distortion.

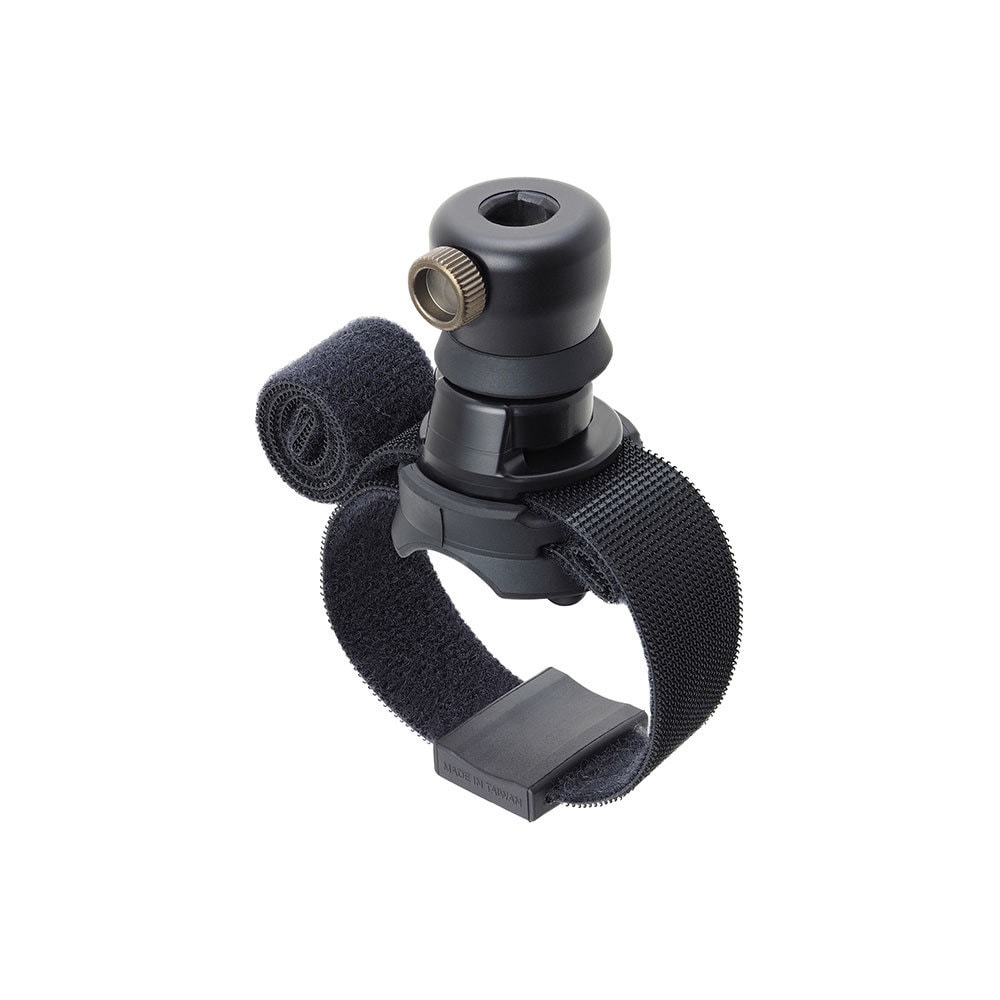

Mount

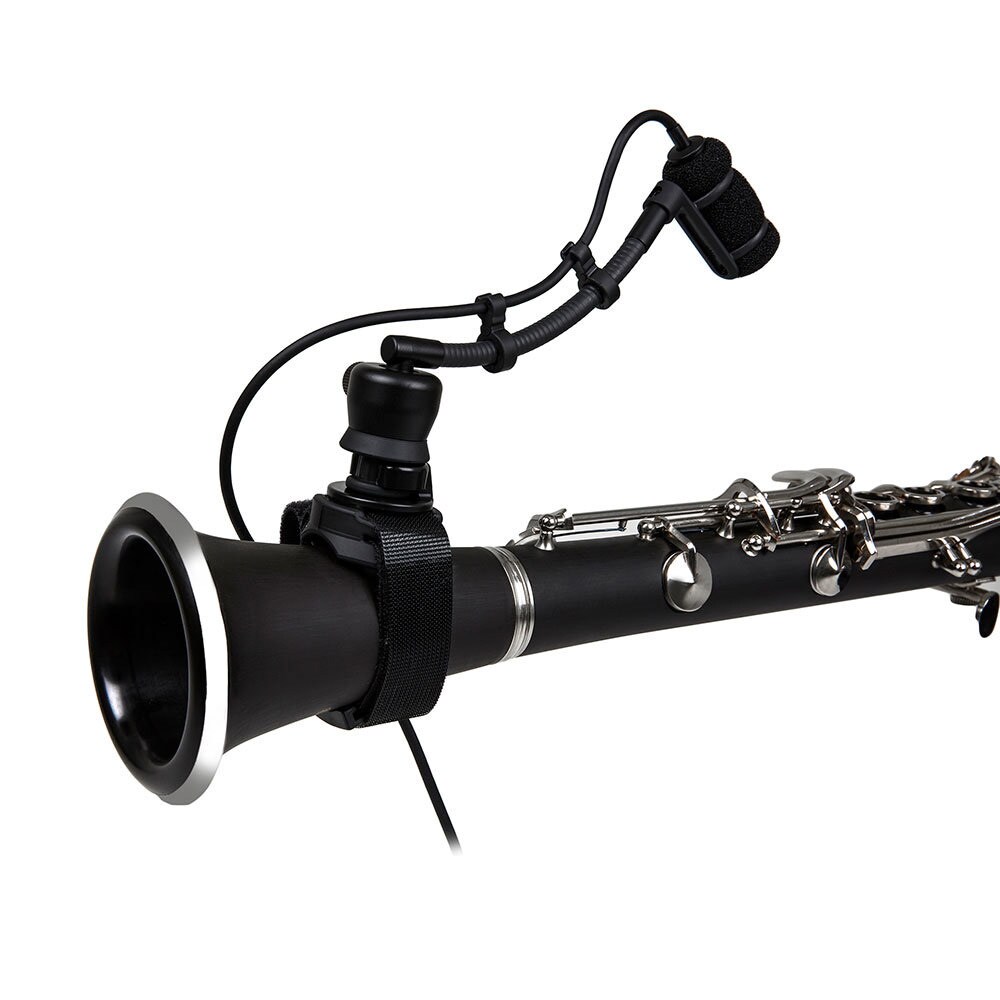

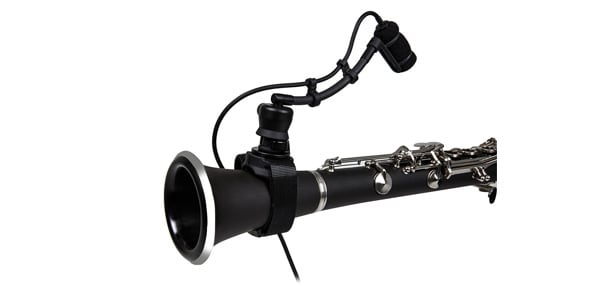

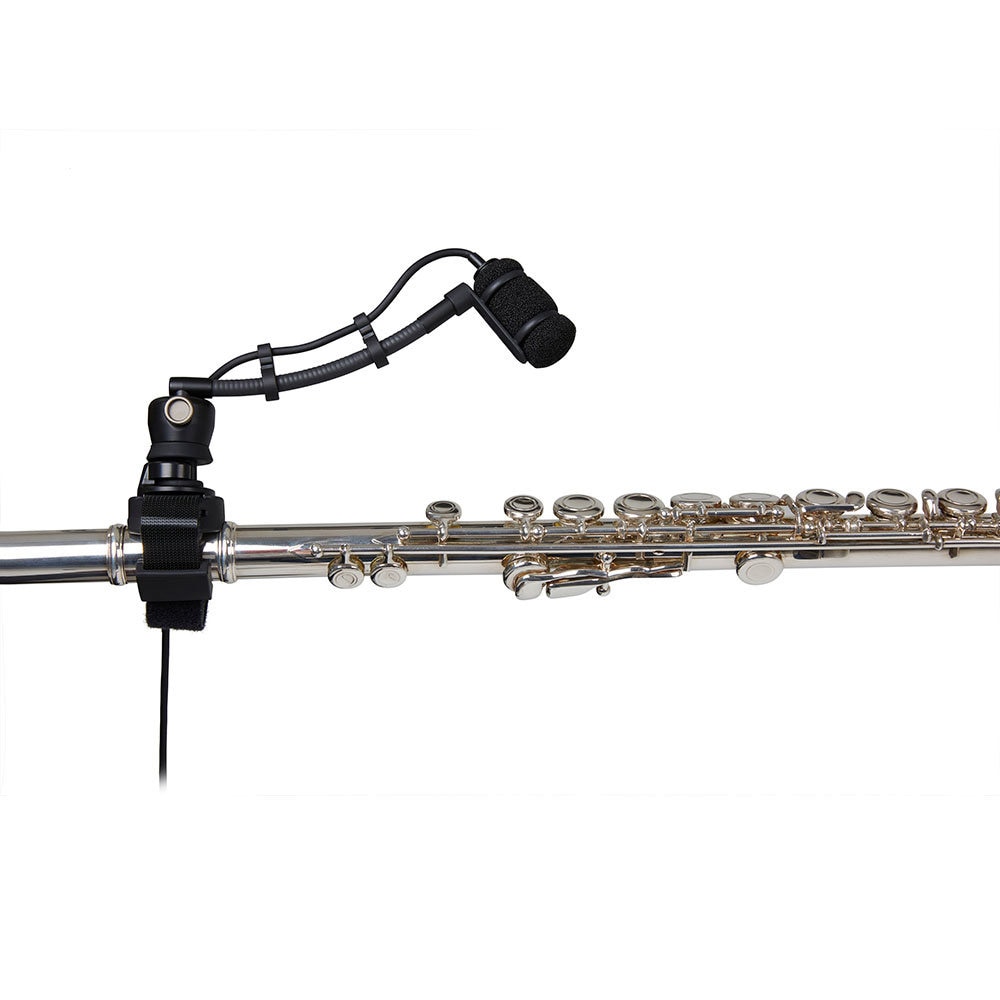

- Hook-and-loop mount ideal for woodwind instruments such as flutes and clarinets.

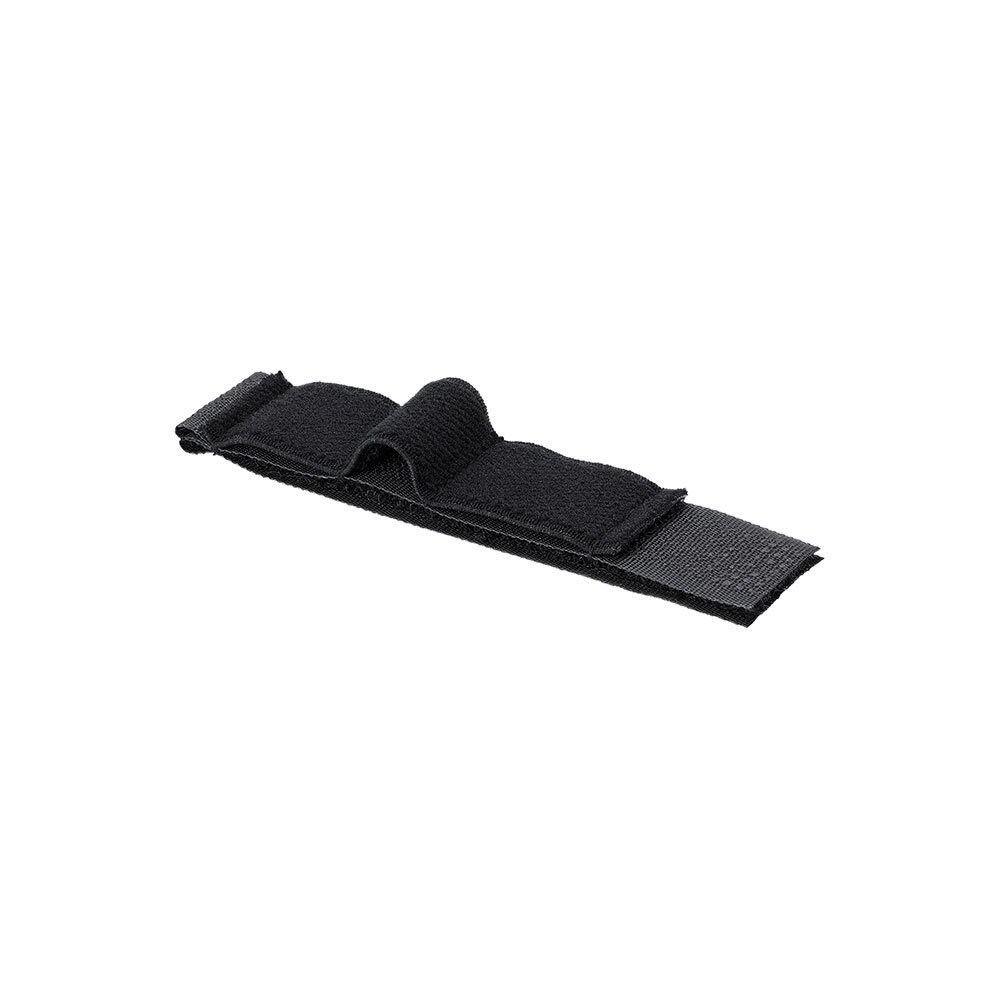

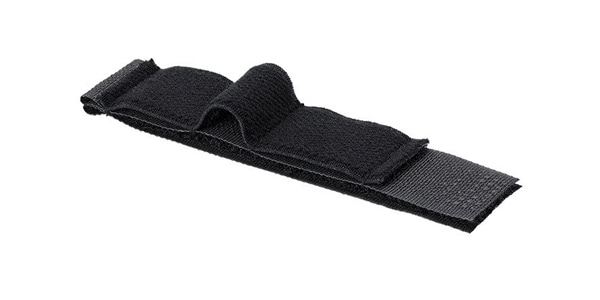

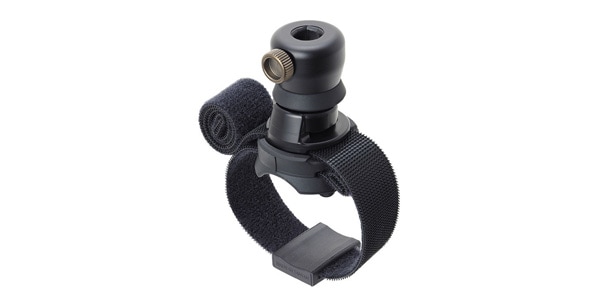

- Adjustable hook-and-loop strap with rubber pads for a secure grip on the instrument.
- Point-contact rubber grip that does not interfere with the instrument's vibration.

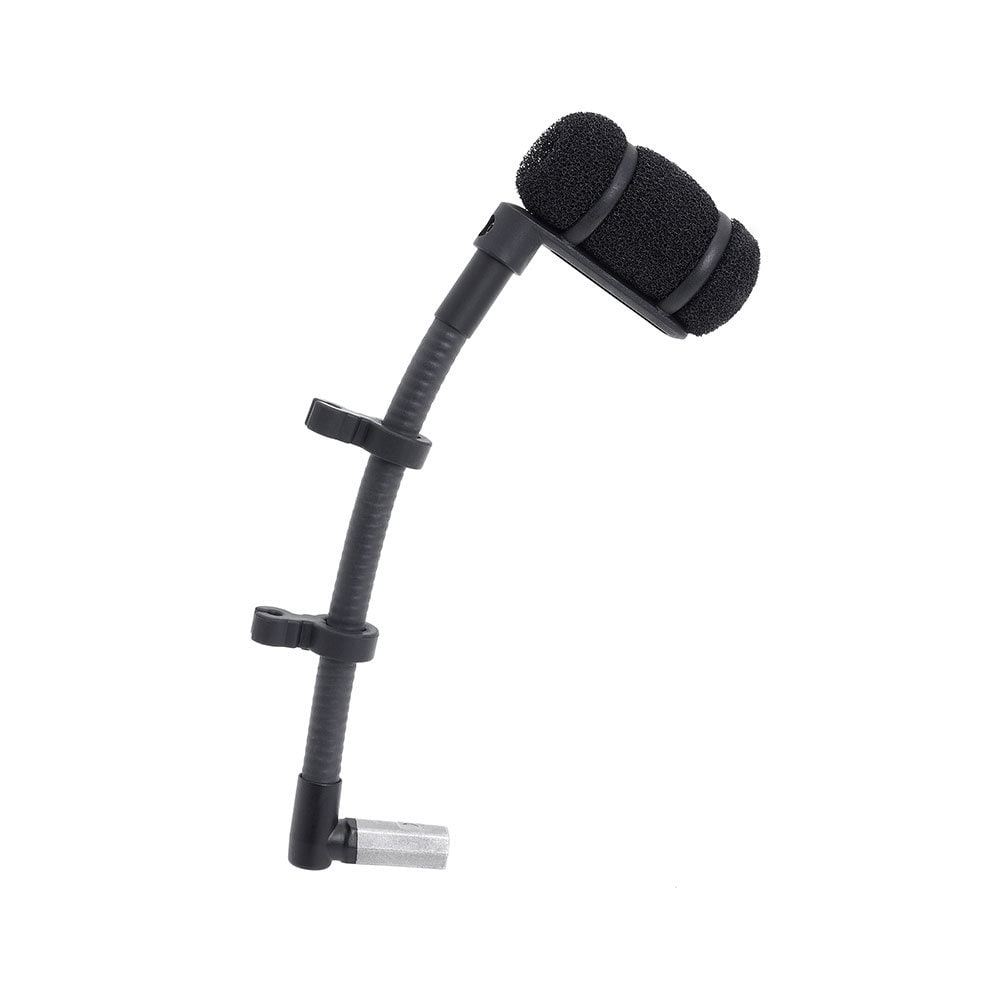

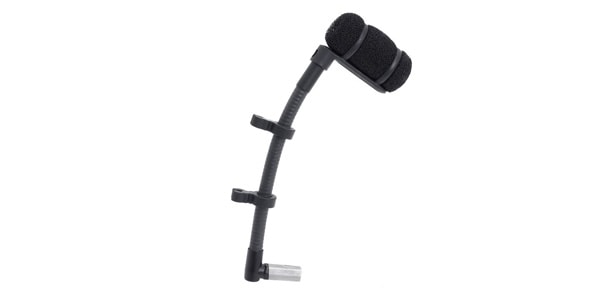

- Equipped with a swivel mechanism for easy gooseneck positioning.

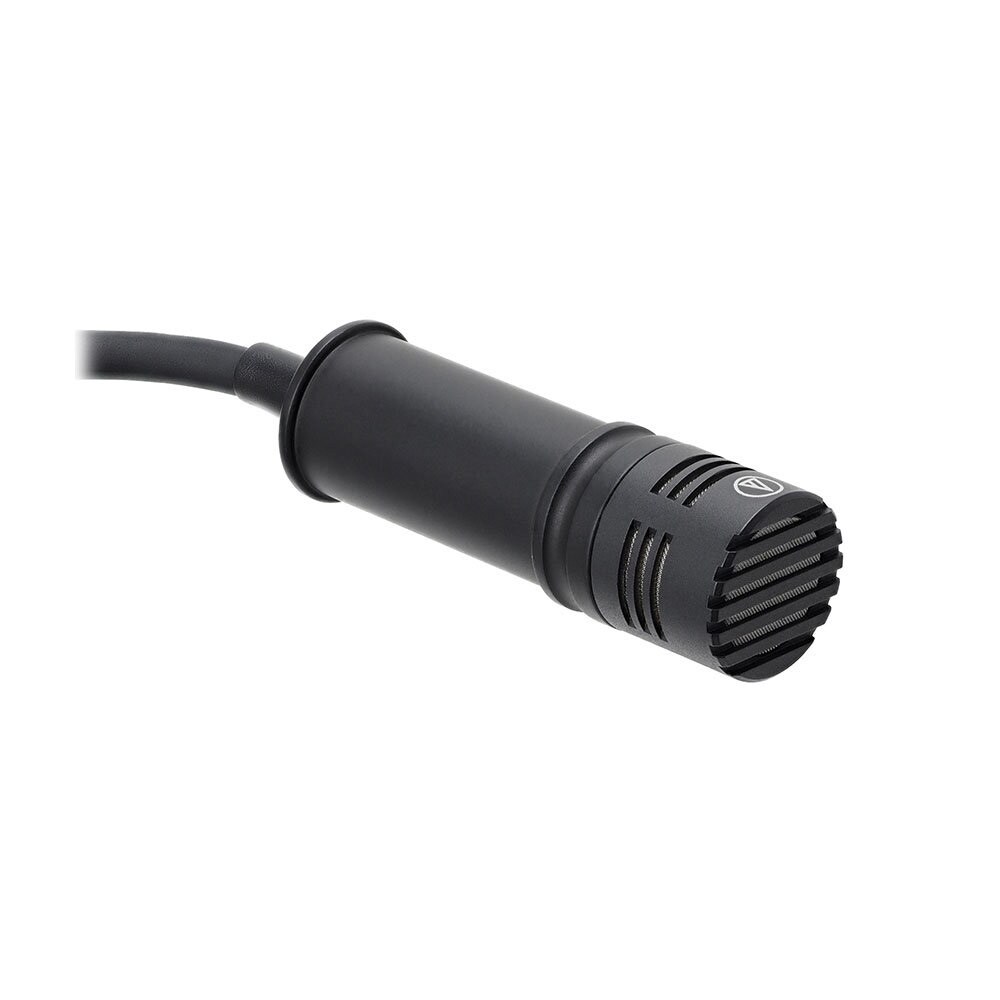

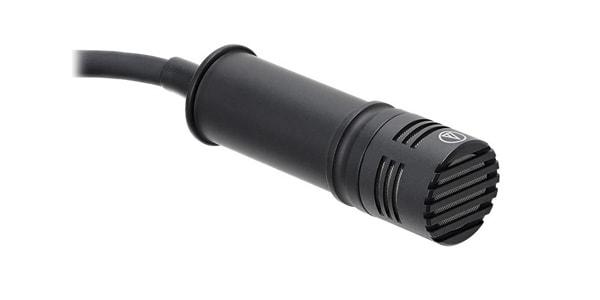

Microphone
- High-power design with a maximum sound pressure level of 159 dB.
- Crisp, clear, and balanced response even at high sound pressure levels.
- Equipped with a low-cut switch to reduce background noise.
- Cardioid characteristics isolate unwanted sounds from the rear and sides.
- Accurately captures the desired sound source and achieves a high margin against feedback.
- Can be converted to hypercardioid or omnidirectional with an optional replacement unit.

■Condenser microphone
■Polar pattern: Cardioid
■Frequency response: 40-20,000Hz
■Low cut: 80Hz, 12dB/octave
■Sensitivity: -49dB (3.5mV) re 1V at 1Pa
■Output impedance: 200Ω
■Maximum input sound pressure level: 159dB SPL, 1kHz at 1% T.H.D.
■Dynamic range (typical): 130dB, 1kHz at Max SPL
■Signal-to-noise ratio: 65dB, 1kHz at 1Pa
*Typical A-weighted value when using the Audio Precision System Two.
■ Phantom Power: 11V–52V DC, 3.5 mA typical
■ Switch: Flat, Low-Cut
■ Weight: Microphone: 14.5g, Power Module: 90g
■ Dimensions
Microphone: 37.8mm length, 12.2mm diameter

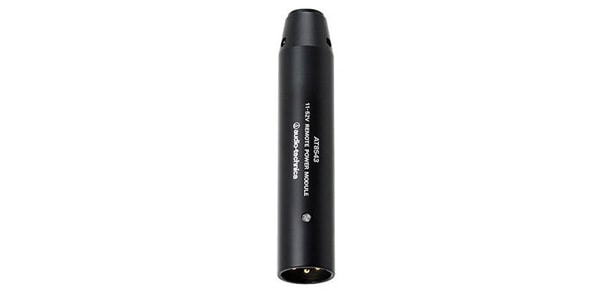

Power Module: 92mm length, 18.9mm diameter
■ Output Connector: Power Module: 3-pin XLRM type
■ Cord: 4.0m length (fixed to microphone), 3.2mm diameter, uses HIROSE HR10 type connector
■ Optional Replacement Units: UE-O Omnidirectional, UE-H Hypercardioid
