BABICZ / FCHTOMBK

Variations

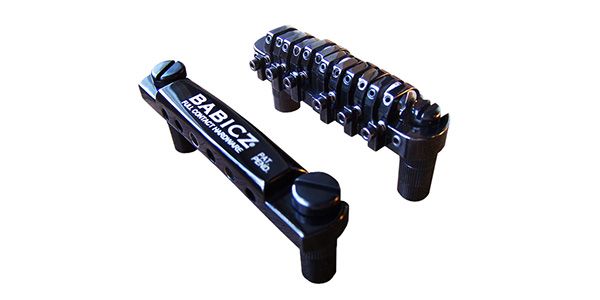

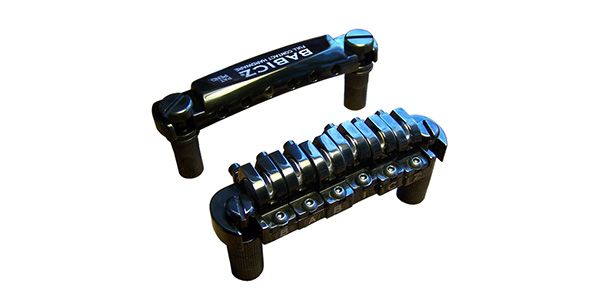

This Tune-O-Matic bridge features BABICZ's proprietary eCAM saddle technology. Its large contact area provides exceptional stability, and the height of each string can be adjusted individually.

Babicz Full Contact Hardwareについて

「エレキギターやベースのブリッジにおいて、重要なのは『トーン』です。いかに重量を増やさずに、より豊かなトーン、安定性、サステイン、そして細かな調整機能を手に入れるか。それこそがFull Contact Hardware（フルコンタクト・ハードウェア）の真髄です」 — ジェフ・バビッツ

従来のサドル

1. 一般的なサドルは2本の小さなイモネジで支えられています。

2. サドル下に生じる隙間により、トーンやサステインの伝達効率が著しく低下してしまいます。
Babicz eCAMサドル

1. eCAMサドルは、点ではなく面で支えることによいり、圧倒的なサステインとトーンを実現。

2. 隙間がないことにより、どのような弦高設定でも弦振動をロスなくボディへ伝えます。

FCH（フルコンタクト・ハードウェア）は、従来のサドルよりも精密な弦高調整、オクターブ調整が可能。
各eCAMサドルに弦高ロック機能を備え、激しい振動にさらされても設定した弦高を確実に維持します。

■Guitar Bridge & Tailpiece
■Tune-O-Matic
■ORIGINAL SERIES
■Includes arched plate (LP type) and flat plate (SG type)
■Made of aluminum
■String spacing: 2.07"" (approx. 52.5mm)

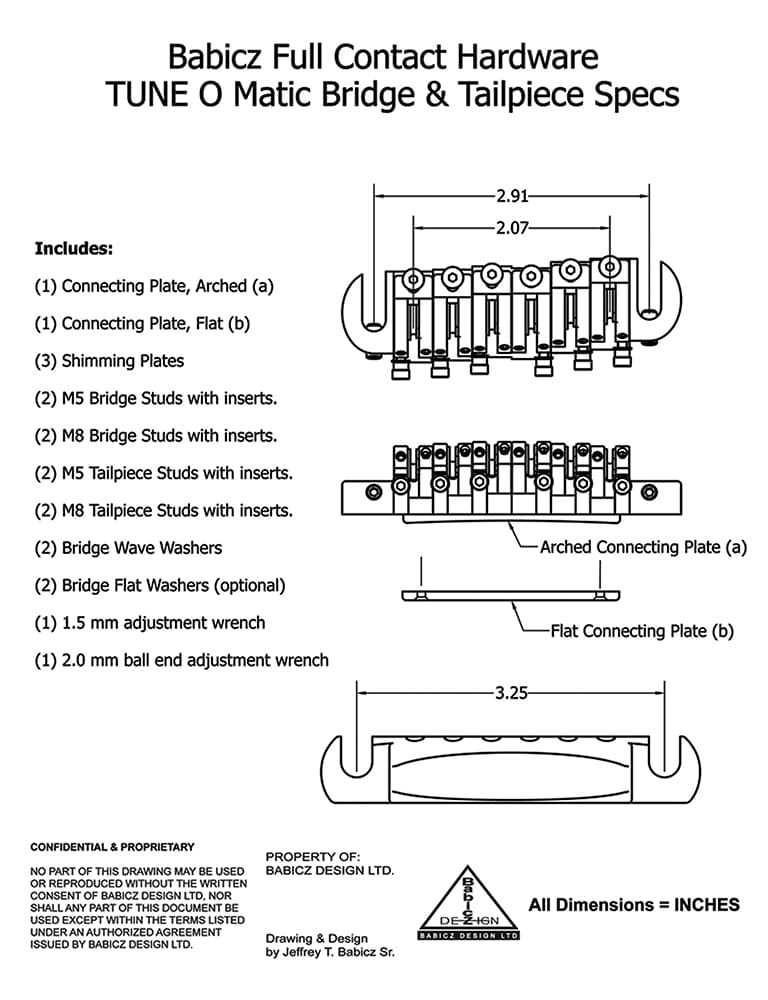

■Includes: Bridge, tailpiece, studs/anchors (M5, M8), one pair each, plate, shim, adjustment wrench
■Weight: Bridge: Approx. 65g, tailpiece: Approx. Approximately 36.9g
■Black

~From the manufacturer's website~
The FCH-TOM is compatible with a wide range of Gibson-style guitars equipped with a Tune-O-Matic bridge/stop bar tailpiece. Traditional TOM-type bridges do not allow for individual string height adjustment and only have two studs for contact with the body. The FCH-TOM bridge not only allows for individual string height adjustment, but also ensures that the bottom of the bridge is always in close contact with the guitar body (using connecting shim plates where appropriate). This eliminates loss of sustain and vibration to the body. String height adjustment is achieved by rotating the center of the eCAM, raising and lowering the string height. The saddle does not tilt or wobble, and its bottom always remains in close contact with the base plate, allowing for precise string height adjustment. Additionally, a screw is included to lock the saddle to the base plate, ensuring exceptional stability.
