JBL / Control 62P-WH

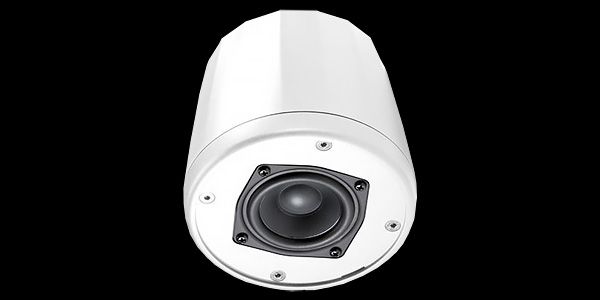

The JBL Control 62P WH is a lightweight, compact ceiling-mounted speaker. It's ideal for reproducing mid- and high-frequency sounds from music and speech. Its high impedance of 16 ohms allows for parallel connection of up to eight speakers with a 2 ohm amplifier. It's available in white.

■ Pendant Speakers
■ Pair

- Ultra-compact size of φ128 x 121 mm featuring a 2.5-inch driver.
- Ideal for mid- to high-frequency music and speeches.
- Can be used as a satellite speaker with the Control 60PS/T subwoofer. Four satellite speakers can be used simultaneously with one subwoofer.
- High impedance of 16 Ω allows eight speakers to be connected in parallel with one 2 Ω amplifier channel.

Frequency Range (-10dB): 150Hz to 20kHz
Coverage Angle (1.5kHz to 10kHz average): 140° (+25°/-50°)
Power Handling Capacity (Program/Pink): 30W/15W
Sensitivity: 84dB (2.83V)
Maximum Sound Pressure Level: 97dB SPL
Nominal Impedance: 16Ω
Driver Configuration: 2.5 inches (64mm)
Color: White

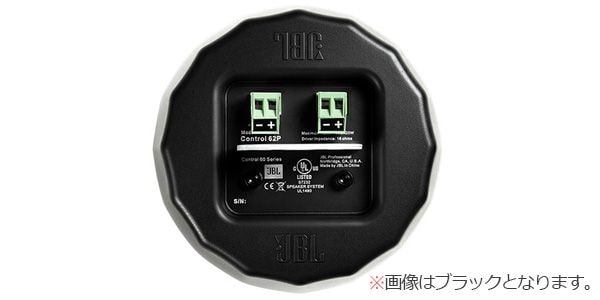

Input Connector: Euroblock
Dimensions (φ×D): 128×121mm (excluding protrusions)
Weight: 0.7kg
Accessories: 2 x Support Cable Kits, 4 x 2-Pin Euroblock Connectors, 4 x Terminal Covers, Japanese Instruction Manual
