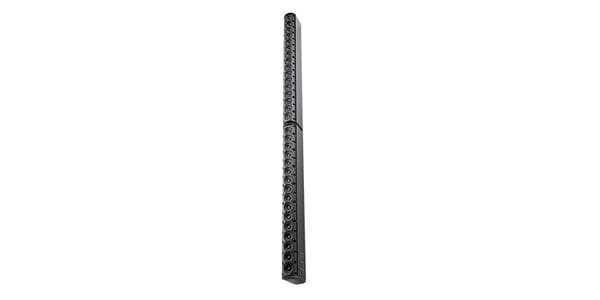

JBL / CBT 200LA-1 column speaker system

Column speaker system, 8Ω, 650W, black, 1 piece

＜Specifications＞
■ Frequency range (10dB) 80Hz-20kHz
■ Directional angle
Horizontal 150 °
Vertical (switching) Narrow: 15 °, Broad: 30 °, APG: 22 °
■ Allowable input *1 650W
■ Maximum sound pressure
Narrow 123dB SPL (Speech mode) 120dB SPL (Music mode)
Broad 121dB SPL (Speech mode), 118dB SPL (Music mode)
APG (on axis) 122dB SPL (Speech mode), 119dB SPL (Music mode)
■ Driver configuration 50mm full range x 32
■ Sensitivity (1W, 1m)
Narrow 95dB SPL (Speech mode), 92dB SPL (Music mode)
Broad 93dB SPL (Speech mode), 90dB SPL (Music mode)
APG (on axis) 94dB SPL (Speech mode), 91dB SPL (Music mode)
■ Nominal impedance 4Ω *2
■ Transformer tap
100V 240W / 120W / 60W *3
70V 240W / 120W / 60W / 30W *3
■ Input terminal Screw terminal
■ ABS resin, Black
■ Dimensions (W × H × D) 99 × 2,000 × 153mm (removal part)
■ Weight: 15kg
■ Accessories: Wall mount brackets, installation brackets

* 1 IEC pink noise, crest factor 6dB, 2 hours.
* 2 When the upper and lower modules are connected in parallel. 8Ω for a single module.
* 3 Total price is for set of the upper and lower modules.
