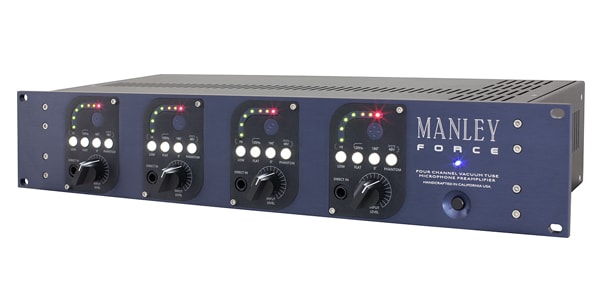

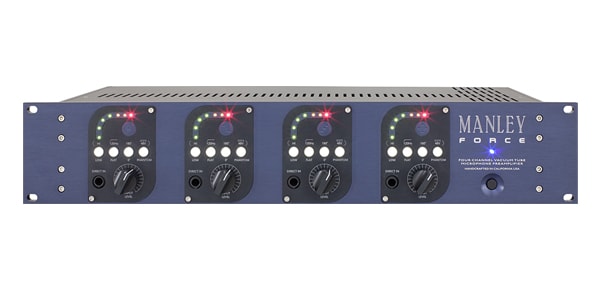

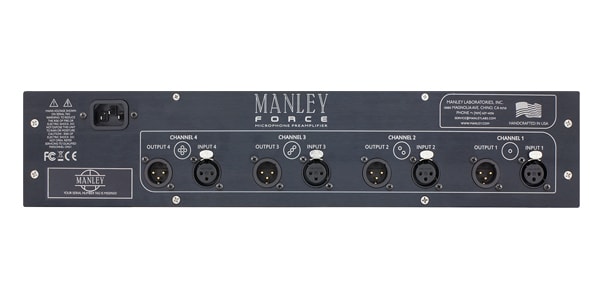

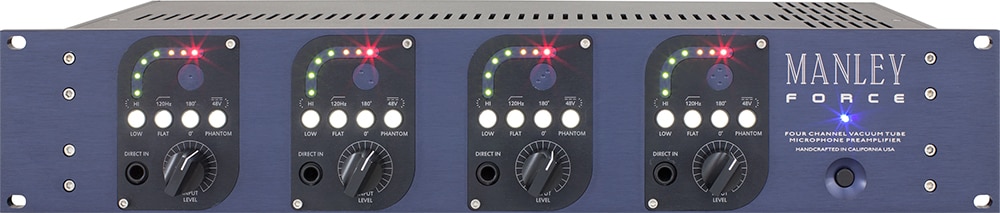

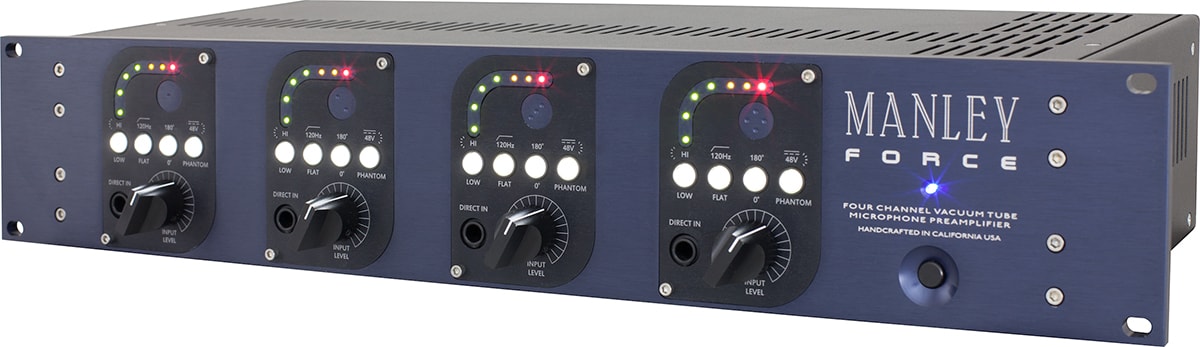

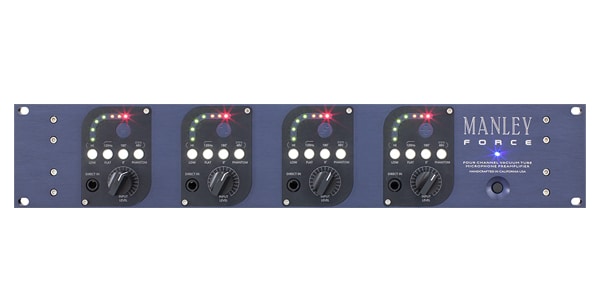

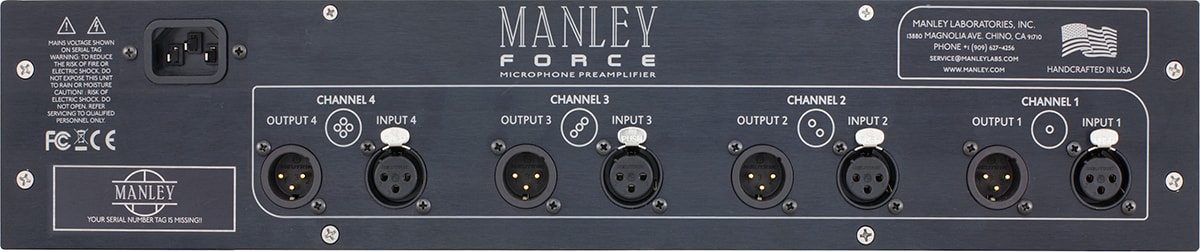

MANLEY / FORCE

MANLEY/FORCEは、高い人気を誇るチャンネルストリップ、COREのバキューム・チューブ・マイクプリアンプを4チャンネル搭載したモデル。

■マイクプリアンプ、4ch、2U
アメリカのプレミアムなハイエンドスタジオギアメーカーManleyから発表された "FORCE" は、高い人気を誇るチャンネルストリップ、COREのバキューム・チューブ・マイクプリアンプを4チャンネル搭載しています。

Vacuum Tubes: 4 x 12AX7WA dual triodes
Balanced Transformer Coupled XLR Microphone Input Impedance: 1250 Ohms
Unbalanced 1/4" Direct Input Impedance: 10 Meg Ohm
Maximum Input Mic input (Low Gain Setting): -5 dBu or 435mV RMS @ 0.5% THD
Maximum Input Mic input (High Gain Setting): -25 dBu or 44mV RMS @ 0.5% THD
Maximum Input Direct input (Low Gain Setting): +24 dBu or 12V RMS @ 0.5% THD
Maximum Input Direct input (High Gain Setting): +17 dBu or 5.5V RMS @ 0.5% THD
Maximum Output (1kHz Sine, into 100 kOhm load, 0.1% THD+N: +35 dBu
Maximum Output (1kHz Sine, into 100 kOhm load, 0.1% THD+N: 43V RMS
Maximum Output (1kHz Sine, into 600 Ohms load, 0.1% THD+N): +22 dBm
Hi-current WFDRIVE Balanced Output Impedance: 50 Ohms
Output Headroom (referenced to +4 dBu): 31 dB
Dynamic Range: 118 dB @ LOW GAIN, 100 dB @ HI GAIN
THD & Noise (1Khz @ +4dBu BW 22Hz-22KHz): 0.004% at Low Gain setting
THD & Noise (1Khz @ +4dBu BW 22Hz-22KHz): 0.04% at Hi Gain setting
Noise Floor Micpre (A WGT): - 85dB @ LOW GAIN, -66dB @ HI GAIN
Signal to Noise Ratio (Ref. to +4dBu): 87dB @ LOW GAIN, 68dB @ HI GAIN
EIN (22-22kHz BW, A WGT): -129dB with 150 Ohm source impedance @ LO GAIN
Frequency Response: 20 Hz to 20 kHz -0.1dB, +0.3 dB
Gain via Microphone Input: 40 LOW or 50dB HI GAIN (60dB available via internal jumper)
Gain via Line Input: 20 or 30dB (40dB available via internal jumper)
Low Signal Green LED (Output Level): -22 dBu
High Signal Red LED (Output Level): +24 dBu
AUTOMUTE warmup delay: 30 seconds
Power consumption: 36 Watts
Operating mains voltage: 90 to 254 VAC (internal universal supply)
Mains Voltage Frequency: 50~60Hz
Dimensions: 19" x 3 1/2" x 7" (occupies 2u)
Unit weight: 8.6 lbs.
Shipping weight: 11.8 lbs.
