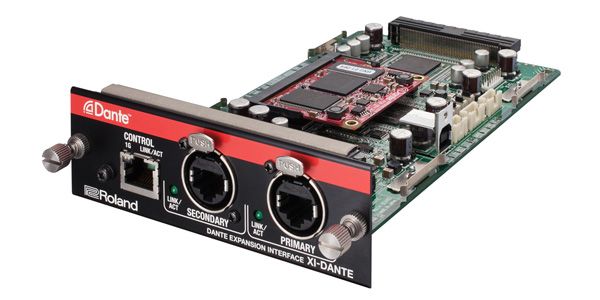

ROLAND / XI-DANTE

O.H.R.C.A M-5000／M-5000C、 V-1200HD用 DANTEインターフェイス・モジュールです。

■DANTE Expansion Interface
■For O.H.R.C.A M-5000 and V-1200HD

◇When used with the M-5000
Supports bidirectional audio transmission of 32 channels at 96 kHz and 64 channels at 48 kHz.
Equipped with two ports, PRIMARY and SECONDARY, and a LAN terminal for connecting to a PC/MAC.
The PRIMARY and SECONDARY terminals are duplicated for redundant systems.

◇When used with the V-1200HD
16 input channels and 16 output channels can be connected to the internal audio processor (48 kHz).

◇Dante Controller
""Dante Controller"" is an application from Audinate that manages Dante networks and configures audio routing.
Compatible with Windows and Mac. ""Dante Controller"" can be downloaded (free of charge) from the Audinate website.

Dante Virtual Soundcard
""Dante Virtual Soundcard"" is an application from Audinate that enables a computer to function as a Dante device on a Dante network. It is compatible with Windows and Mac. ""Dante Virtual Soundcard"" enables direct audio data transmission between computers and Dante devices on the network using applications compatible with standard Mac Core Audio or ASIO audio interfaces. ""Dante Virtual Soundcard"" can be downloaded from the Audinate website (fees apply).
