FOCUSRITE / RedNet D64R

RedNet D64R is a bridge I / O to incorporate MADI format into RedNet system. Supports both coaxial and optical, and can convert MADI (AES10) signals of up to 64 channels (at 48 KHz) to Dante standards.

■ Audio interface ・ MADI → Dante

Each input and output is equipped with a sample rate conversion (ASRC) function, so even when a MADI-based console or computer system is connected, it can absorb the digital clock shift.

Add a MADI-based digital console seamlessly to your Dante audio networking system
・ Supports both coaxial and optical, and can convert MADI (AES10) signals of up to 64 channels (at 48 KHz) to Dante standard
・ Equipped with sample rate converters for all inputs and outputs, allowing different sample rates to be set for both MADI and RedNet
・ Routing is possible from multiple computers connected to the Dante networking system. No hardware patching required

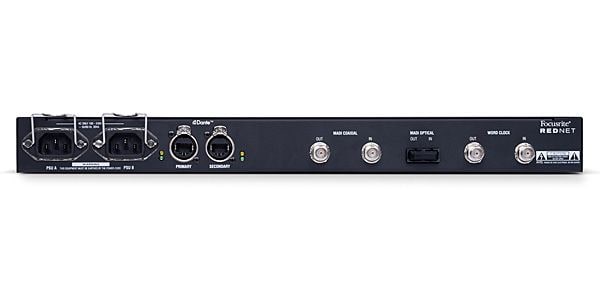

・ Redundant Ethernet connector and power socket to increase reliability and security in the field
・ Assuming severe usage such as tours, the outside and inside are ruggedly designed. In addition, EtherCon is adopted for the connection terminal, ensuring high reliability

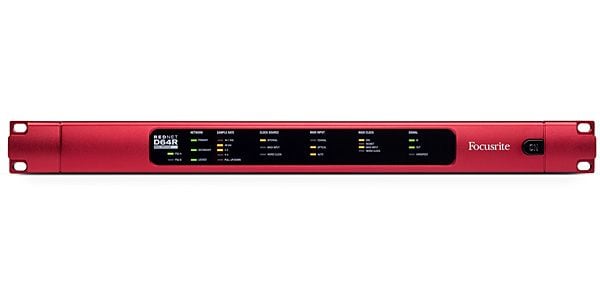

The compact 1U D64R is not only portable, but also fully compatible with other Dante network products
・ Ethernet cable included

■ Specification

・ Sample rate converter: Sampling rate range 44.1-216kHz (MADI)
・ Sampling rate: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% / -0.1% / + 0.1% / + 4.167%) at 24 bit
・ Word clock: input 1xBNC 75Ω, output 1xBNC 75Ω
・ Size: H44.5m x W482.6mm x D308mm
・ Weight: 4.32kg
・ Power supply: 2 x built-in type, universal power supply compatible, power consumption 30 VA
