FOCUSRITE / RedNet HD32R

A high quality audio interface that integrates Dante digital audio networking system with ProTools | HD.

■ Audio interface

Connects to ProTools via Mini DigiLink port and functions as a 64ch (32 in 32 out) break box, supports a wide range of ProTools | HDX to HD cards, up to 6 in ProTools | HDX, up to 3 in ProTools | HD HD32R connection is possible up to the unit.

■ Features
Integrate ProTools into Dante network

・ Add Pro Tools | HD or Pro Tools | HDX to the digital audio networking system Dante. Build large-scale networking
・ Accessible from multiple computers connected to the Dante networking system
・ Add 32 I / O with one unit
・ Connect to ProToolsHD with Mini DigiLink and add 32 channels of input / output with one unit. ProTools | HDX can connect up to 6 devices and ProTools | HD can connect up to 3 devices
・ Avid interface can be connected to the provided Expansion DigiLink port
Upgrade to RedNet interface while maintaining full compatibility with stored sessions, including TDM or AAX DSP based plug-ins

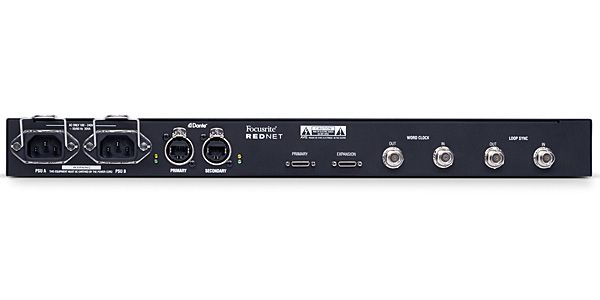

・ Redundant Ethernet connector and power socket to increase reliability and security in the field

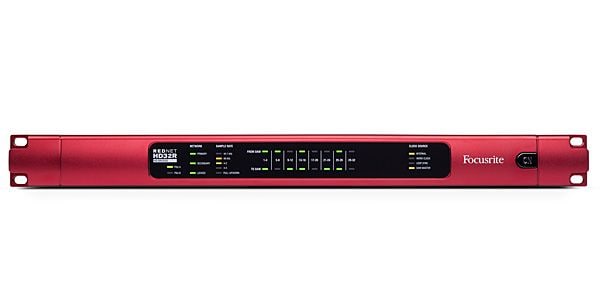

・ 1U rack mount size with excellent portability
・ Ethernet cable included

■ Specification
・ Sampling rate: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% / -0.1% / + 0.1% / + 4.167%) at 24 bit
・ ProToolsHD, Primary Port: 1 x Mini DigiLink, Expansion Port: 1 x Mini DigiLink
・ Loop sync: Word clock input: 1 x BNC 75Ω, Word clock output: 1 x BNC 75Ω
Word clock: Word clock input: 1 x BNC 75Ω, Word clock output: 1 x BNC 75Ω
・ Size: H: 44.5mm, W: 482.6mm, D: 296mm
・ Weight: 3.9 kg
・ Power supply: 2 x built-in type, universal power supply compatible, power consumption 30 VA
