ROLAND / JD-XA

Variations

An analog/digital crossover synthesizer for sound creators, which combines the versatility of analog synths with the versatility of digital synths, without compromising anything!

recommended item

BEHRINGER / DeepMind 12 Analog synthesizer

¥118,820(incl. tax)

Analog synthesizer, 49 keys, 12 voices

49 keys (velocity sensitive, with aftertouch)
Maximum polyphony:
Analog part = 4 sounds
Digital part = 64 sounds (varies depending on the sound source load)
Constitution:
Analog part = 4 parts (2OSC + 1AUX, 1Filter, 1AMP, 2Pitch ENV, 1Filter ENV, 1AMP ENV, 2LFO, 1MOD LFO)
Digital part = 4 parts (3 partials <3OSC, 3Filter, 3AMP, each envelope, each LFO>)
*The digital part is a SuperNATURAL synthesizer compatible with Integra-7.
Effect:
Multi-effect = 8 systems, 67 types (1 system for each part)
Part EQ = 8 lines (1 line for each part)
Total effect (TFX) = 2 systems, 29 types
Delay
Reverb = 6 types
Master EQ
Mic input reverb = 8 types
Controller:
Pitch bend/Modulation lever
Pitch/Modulation wheel

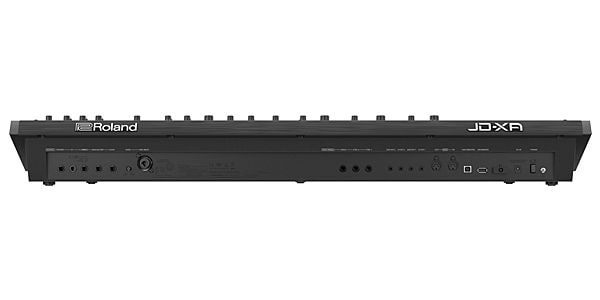

Connecting terminal:
PHONES terminal = stereo standard type
MAIN OUTPUT terminals (L/MONO, R) = TRS standard type
ANALOG DRY OUTPUT terminal = standard type
CLICK OUTPUT terminal = stereo standard type
MIC terminal = combo type (XLR, TRS standard)/balance
FOOT PEDAL terminals (CTRL 1, CTRL 2, HOLD)
CV/GATE OUTPUT terminals (2 systems) = mini type (CV: OCT/V supported . GATE: + 5V output)
MIDI terminals (IN, OUT)
USB COMPUTER terminal (USB Hi-Speed AUDIO/MIDI compatible): USB B type
(Please use USB 2.0 Hi-Speed compatible USB port and USB cable of PC.)
USB MEMORY terminal: USB A type
DC IN terminal
Power ac adapter
Current consumption 3,000mA
Accessories Instruction manual, AC adapter, power cord, warranty card, Roland user registration card
Option: Keyboard stand (*1) = KS-18Z
Pedal switch = DP series
Expression pedal = EV-5, USB memory (*2)
*1 When using the KS-18Z, make sure that the installation height is 1 m or less.
*2 Please use the USB memory (USB2.0 Hi-Speed compatible) sold by Roland. We cannot guarantee operation if other products are used.
External dimensions/mass: Width (W) 899 mm Depth (D) 388 mm Height (H) 111 mm, mass 6.5 kg
