KLARK TEKNIK / DN9610

The KLARK TEKNIK DN9610 extends AES50 multi-channel digital audio network connections (CAT-5E/Cat-6 cable) up to 100m.

■AES50 Repeater
The DN9610's durable, compact alloy case is protected by a shock-absorbing silicone sleeve, allowing it to be placed anywhere. It's roughly the same size as many DI boxes!

Each DN9610 can extend two AES50 streams up to 100m. It features dual redundant power supplies for seamless recovery in the event of a power failure, and the power connector features a locking DC connector for added protection.

The DN9610 operates at 24-bit 48kHz and 24-bit 96kHz, supporting two simultaneous AES50 streams at different clock rates! And latency through the unit is just 0.03ms.

Multiple DN9610s can be connected in series to extend AES50 transmission over considerable distances.

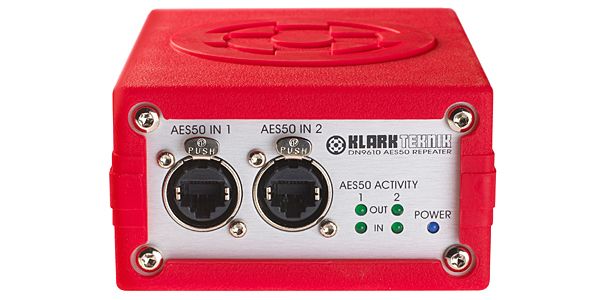

Separate LED status indicators are provided for power, AES50 input 1, AES50 input 2, AES50 output 1, and AES50 output 2, and the four RJ-45 sockets use rugged Neutrik EtherCON connectors.

The DN9610 works with any AES50-compatible device.

- Two independent AES50 connections extend up to 100m
- Transmits and receives up to 96 bidirectional 24-bit audio channels
- Supports dual redundant AES50
- Durable, locking Neutrik EtherCon connectors
- LED indicators for each AES50 connection status
- Two asynchronous AES50 ports
- 0.03mS latency
- Stackable with textured silicone covers

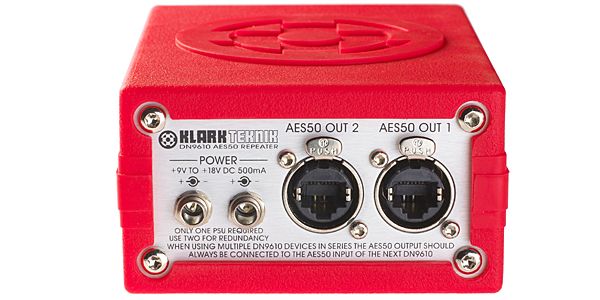

- Lockable redundant PSU connectors
- Operates from a standard 9-18V 500mA DC power supply
- Includes a universal PSU
