MIDAS / DL32

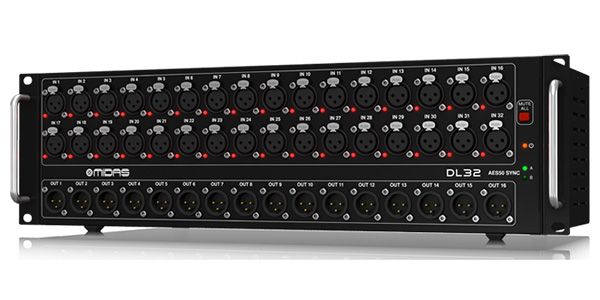

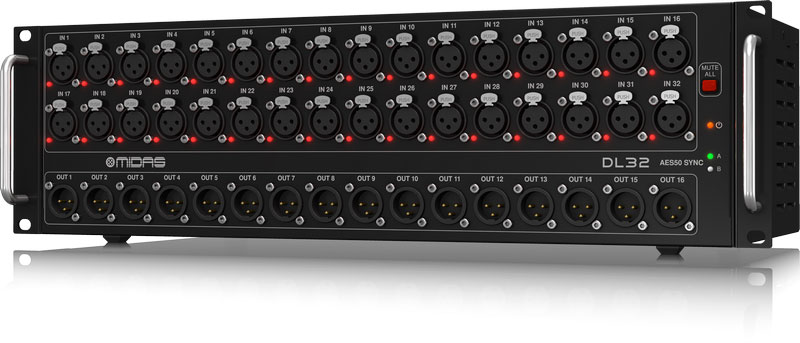

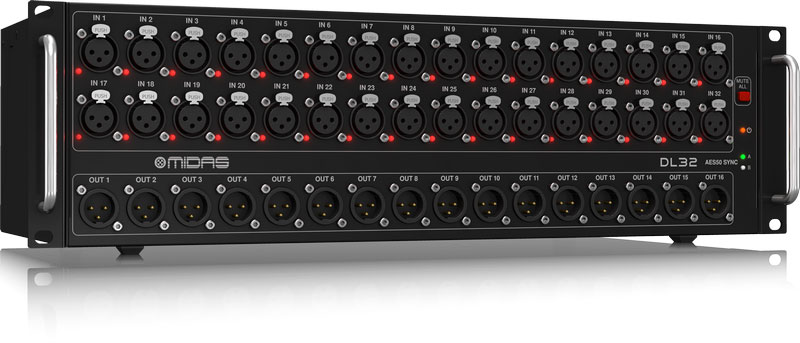

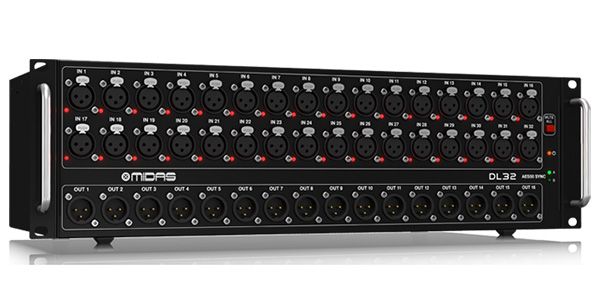

The DL32 is a 32-in/16-out stage box compatible with the MIDAS M32 series. It features 32 MIDAS PRO microphone preamps.

■ Stage Box

■ 32 in/16 out

■ For M32

■ 32 MIDAS PRO microphone preamps (+48V phantom power), XLR inputs

■ 16-channel XLR outputs

■ Dual ADAT outputs usable in splitter mode and for standalone digital multicore applications

■ Two AES-3 ports (AES/EBU), allowing direct connection to digital inputs of PA systems

This unit provides 32 remote-enabled microphone preamps and 16 analog XLR returns for stage placement, enabling connections up to 100m with a single CAT-5/5e cable.


? 32 MIDAS PRO microphone preamps (+48V phantom power)

? Eight electronically balanced, low-impedance, line-level outputs

? Connectable to ULTRANET personal monitoring system for IEM systems

Dual ADAT outputs usable in splitter mode and as a standalone digital multi-core application

? Two AES-3 ports (AES/EBU) for direct connection to PA system digital inputs

? Remote operation via CAT5/5e cable (STP) up to 100m

? Bidirectional communication to MIDI devices between FOH and stage via MIDI In/Out

? Neutrik etherCON used for AES50 and ULTRANET network ports

? Durable, robust 3U rackmount chassis for portability

? Auto-ranging, universal switch-mode power supply

? Mute-All-Inputs function allows for noise-free correction of any input on stage

*The DL32's ULTRANET output does not supply power to connected P16-M units. Therefore, all P16-M units connected to the DL32 must be powered by their own separate external 12V DC power supply. For applications requiring multiple ULTRANET connections with power supply, we recommend using the SD16, which has four power-supplied ULTRANET ports, or the P16-D ULTRANET distributor, which supports up to eight P16-M units.
