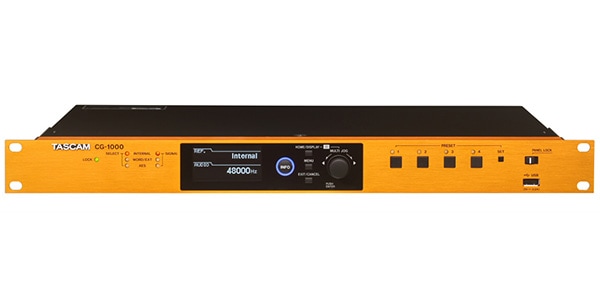

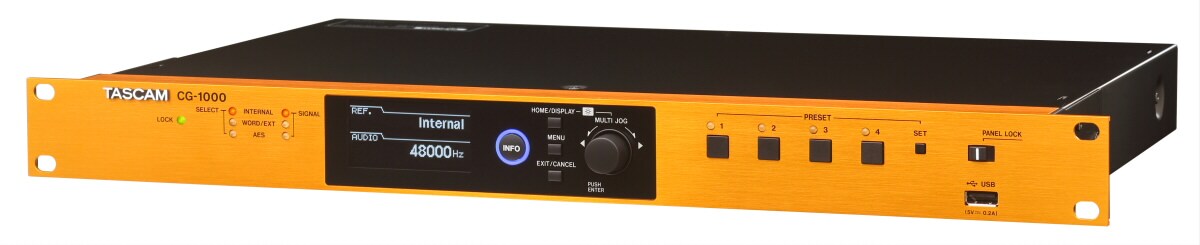

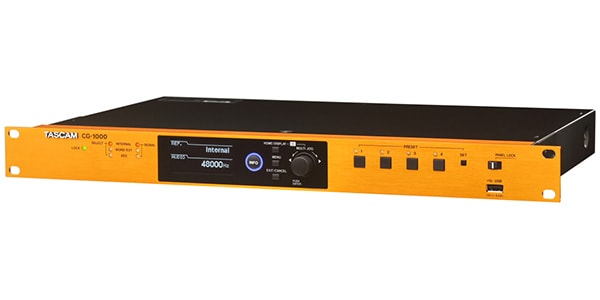

TASCAM / CG-1000

TASCAMのマスタークロック・ジェネレーター。インターナル・クロックに高精度OCXO採用。10MHz対応外部入力端子を搭載。自社設計のジッターマネジメント回路により、外部クロックのジッターを低減。ビデオ/ワード出力へ安定したクロックの提供が可能です

≪Product specifications≫
■ The internal clock is equipped with a high-precision OCXO (crystal oscillator with constant temperature chamber) that is not affected by environmental temperature
■ Equipped with an external input terminal compatible with 10MHz, it is possible to build a system with higher accuracy
Jitter management circuit that supplies a stable clock
■ Glitchless relock circuit that does not generate noise or sound interruption when clock drops out or recovers

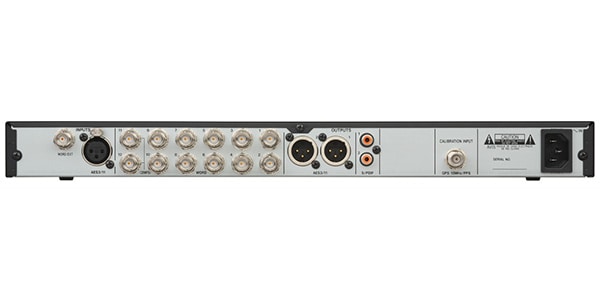

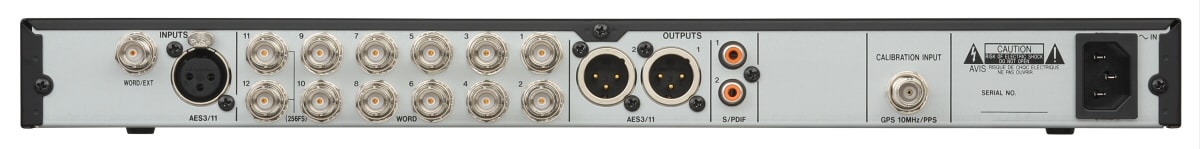

■ Supports a large-scale audio synchronization system with abundant output terminals including 12 letter outputs
■ AES3 and AES11 can be selected as external master clock source
■ Analyzer function that can measure input frequency
■ The word clock output level adjustment function allows signals to be supplied to devices at optimal levels
■ Self-calibration function using an external oscillator (Atomic / GPS 10MHz, GPS PPS)
* To use the calibration function, it is necessary to separately prepare an oscillator with a built-in GPS antenna / 10MHz, PPS output.
■ Word clock supports up to 192kHz
■ Up to 4 system settings can be registered by calling the button and registered settings can be imported / exported via USB
■ Strong nut tightening type Amphenol BNC connector
■ Independent board structure for each terminal
■ 3P plug power cable
■ Panel lock switch to prevent malfunction
■ 128 × 64 dot organic EL display with wide viewing angle
■ Aluminum front panel that matches studio equipment
■ Firmware can be updated via USB terminal
■ EIA 1U rack mount size
■ RoHS compliant product
■ Power supply AC100V-240V, 50 / 60Hz
■ Power consumption
■ Weight 3.1 kg
■ Accessories Power cord, rack mount screw kit, instruction manual (with warranty)
