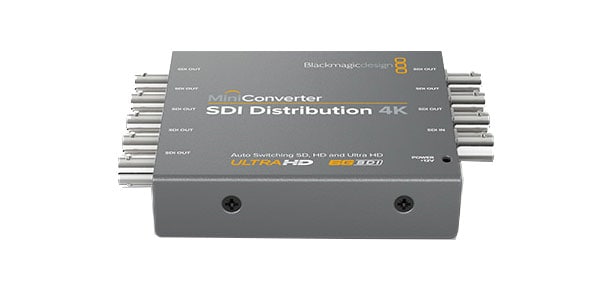

Blackmagic Design / Mini Converter SDI Distribution 4K

Distributes all formats including SDI/HD-SDI/3G-SDI/6G-SDI to 8 SDI outputs.

Format:
■ SD video format: 525i59.94 NTSC, 625i50 PAL
■ HD video format: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080p50 , 1080p59.94, 1080p60
■ 2K video format: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
■ Ultra HD video format: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
■ 4K video format: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25
■ SDI standard: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B, SMPTE 425M, SMPTE ST-2081
■ SDI video rate: SDI video interface can be switched between SD/HD/Ultra HD/DCI 4K
■ SDI video sampling: 4:2:2, 4:4:4
■ SDI audio sampling: TV standard sample rate (48kHz/24bit)
■ SDI color accuracy: 10-bit
■ SDI color space: YUV, RGB
■ Automatic SDI switching: SD/HD/6G-SDI is automatically detected
■ ASI support: Yes
