audio technica / ATW-1302

The audio-technica/ATW-1302 is a handheld 1-channel wireless set that supports a wide range of applications from speech to live performance. Up to 10 channels can be used simultaneously. Furthermore, the stability is improved by the antenna that can be installed externally. Supports new spurious standard.

System specifications:
■ Operation radio band 2.4GHz ISM band
■ Audio dynamic range 109dB
■ Distortion rate 0.05% or less
■ Communication distance 60m (between receiver unit and transmitter)
* When there is no jamming radio wave in the line of sight

■ Operating temperature range 0-40℃
■ Audio frequency characteristics 20-20,000Hz
■ Audio sampling 24bit/48kHz
■ Latency 3.8ms

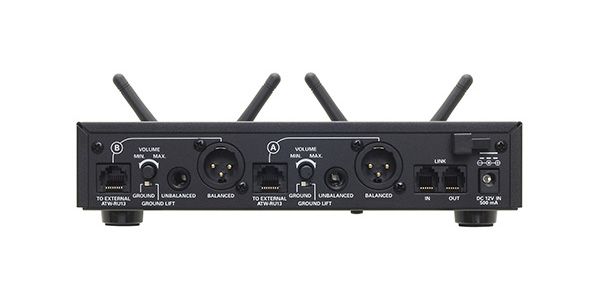

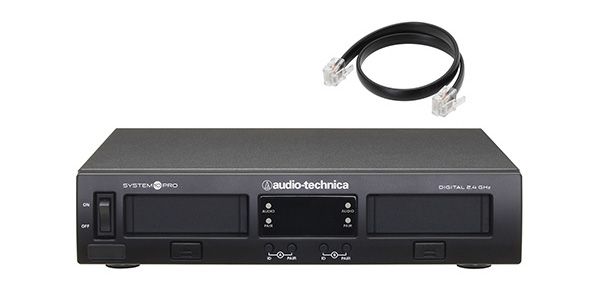

■ Receiver body / Receiver unit: ATW-RC13J / ATW-RU13J
■ Reception method Automatic channel setting method
■ Maximum audio output level 0 dBV (XLR 3-pin male, balanced) 6 dBV (φ6.3 mm monaural jack, unbalanced)
■ Power supply DC12V (use the included AC adapter, for domestic use only)
■ Outer dimensions ATW-RC13J: H44xW209.8xD169.3mm ATW-RU13J: H77.6xW57xD19mm
■ Weight ATW-RC13J: about 940g ATW-RU13J: Approx. 64g

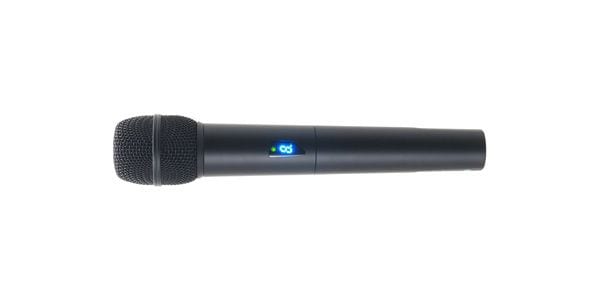

■ Microphone type transmitter: ATW-T1002J
■ Transmission output 10mW
■ Power supply DC3V (AA alkaline batteries x 2)
■ Operating time approx. 6 hours (when using AA alkaline batteries)
■ Outer dimensions: φ50xD254.8mm (excluding protrusions)
■ Weight: 280g (excluding batteries)
