SHURE / BLX1288J/P31-JB

Variations

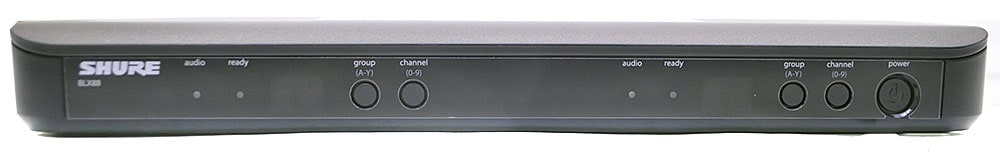

This is a three-piece set made by Shure: the BLX1 bodypack transmitter, the BLX2/PG58 handheld transmitter, and the BLX88 dual-channel receiver.

■ Bandwidth: 800MHz
■ Number of Receiving Channels: 2
■ Number of Simultaneous Channels: 6
6 Channels
■ Antenna Type: Diversity
■ Audio Output Connector: Phone, XLR
■ RF Sensitivity: -105dBm 12dB SINAD
■ Range: Approximately 90m (Note: Radio wave range varies depending on radio wave conditions, presence of reflections and interference, and transmit power.)
■ Audio Output: XLR Connector: -27dBV (100kΩ load), 6.35mm Phone Jack: -13dBV (100kΩ load)
■ Output Impedance: XLR Connector: 200Ω, 6.35mm Phone Jack: 50Ω
■ Power Supply: 12-15VDC 320mA (using included adapter), Handheld Microphone: AA, 1.5V, alkaline battery, Belt-Pack Transmitter: AA, 1.5V, alkaline battery
■ Dimensions: Receiver: 40 x 388 x Dimensions: 116mm, Handheld Transmitter: 53mm diameter x 224mm (grip diameter 37.5mm), Belt-pack Transmitter: 64.5 x 110 x 21.5mm (excluding antenna)
Weight: Receiver: 241g, Handheld Microphone: 218g (excluding batteries), Belt-pack Transmitter: 82g (excluding batteries)

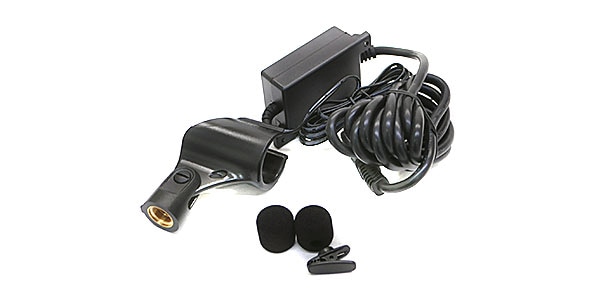

Included Accessories: BLX88 Dual-Channel Wireless Receiver, BLX1 Body-Pack Transmitter, PGA31-TQG Headset Microphone (with windscreen), BLX2 Handheld Transmitter (with PG58 Dynamic Cardioid Microphone Capsule), Microphone Clip, PS23 AC Adapter
