YAMAHA / VS6W Speaker

Variations

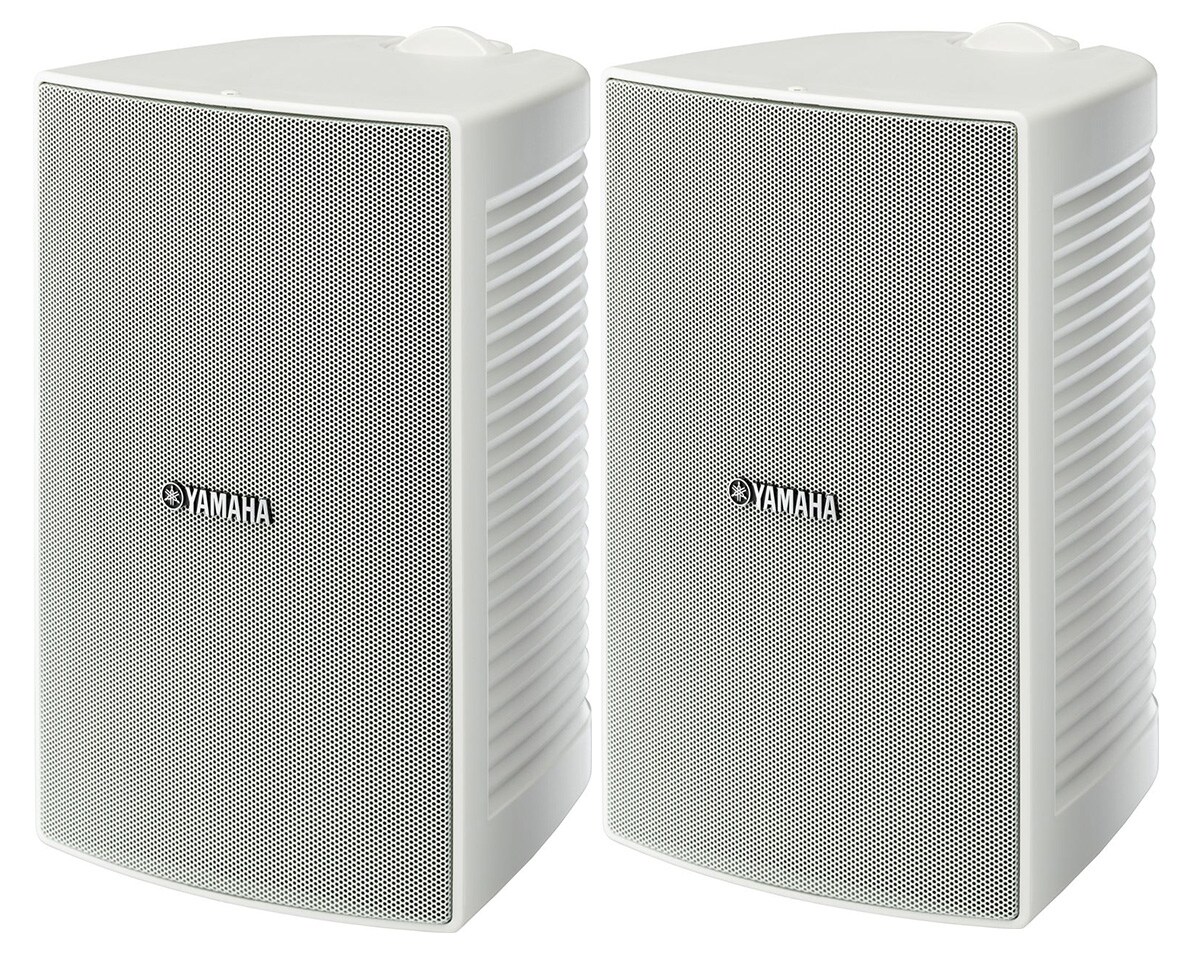

This is a 2-way, 6-inch model from the VS series of surface-mount speakers for commercial spaces. It supports both low and high impedance, making it suitable for installation in a variety of systems. It also complies with IPX3 waterproofing standards, making it suitable for outdoor installation.

~From the manufacturer's website~
The Perfect Complement

The VS Series surface-mount speakers for commercial spaces are weatherproof speakers that support both low- and high-impedance connections. Switching between low- and high-impedance connections, as well as changing the wattage when using high-impedance connections, can be easily done with a tap on the rear panel. The speakers are also IPX3 (weatherproof) compliant, allowing them to be installed outdoors under eaves, and their simple, stylish cabinets complement a variety of spaces. Black and white models are available to suit your needs.

- The stylish cabinet and a variety of sizes and colors allow it to fit into a variety of spaces.
- Supports both low-impedance and high-impedance connections.
- The included bracket allows for installation in either portrait or landscape orientation.

■ Type: 2-way bass reflex type
■ Frequency response (-10dB): 80Hz - 20kHz
■ Nominal dispersion angle (Horizontal x Vertical): 90° x 90°
■ Rated impedance:
Lo-Z: 8Ω
100V line: 400Ω (25W), 800Ω (12.5W), 1.6kΩ (6.3W)
70V line: 200Ω (25W), 400Ω (12.5W), 800Ω (6.3W), 1.6kΩ (3.1W)
■Power Rating
NOISE: 25W
PGM: 50W
MAX: 100W
■Output Sound Pressure Level (1W, 1m): 90dB SPL
■Component
LF: 16cm cone
HF: 2.5cm balanced dome tweeter
■Connector: 2 pairs of barrier strips
■Waterproof: IPX3 (can be installed outdoors under a eaves or other location protected from direct rain)
■Dimensions & Weight: 190W x 308H x 219D mm, 2.8kg
■Accessories: Mounting bracket (U-bracket), terminal cover
■Pair

■Installation Simulation Software: CISSCA

- Quickly estimate the number of speakers required for your project
- Easy setup and operation
- Convenient report output function for smooth system proposals
