CLEAR-COM / RM-704

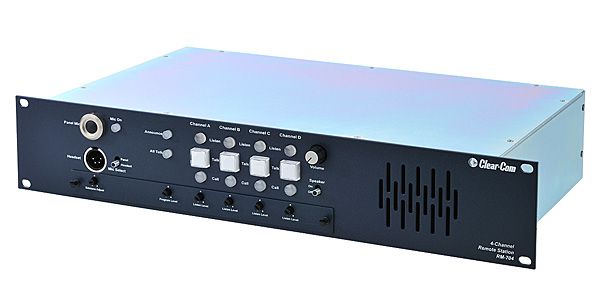

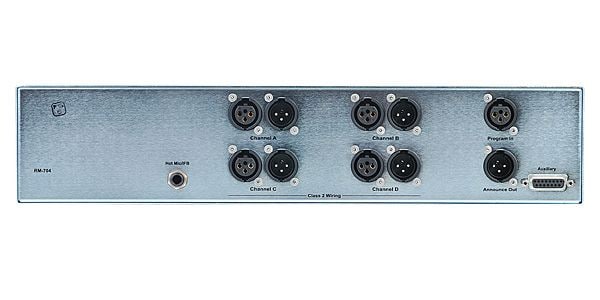

This is a remote station for the Encore series made by CLEAR-COM.

[Microphone Preamplifier]
Input: 200Ω dynamic type
Input Level: -55dBV
Gain: +41dB (from intercom line)
[Panel Microphone Preamplifier (Gooseneck Microphone Option)]
Connector: 1/4"" panel mounting jack
Input Level: -45dB
Frequency Response: 150-15KHz
[Headphone Amplifier]
Impedance: 50Ω-2KΩ
Output Level: +20dBV (600Ω)
Distortion: 0.2% THD (1KHz)
Frequency Response: 150-18KHz (±) +/- 2dB
Gain: +37dB (from intercom line)
[Speaker Amplifier]
Impedance: 8-50Ω
Output Level: 4W @ 8Ω
Distortion: 0.5% THD (1KHz)
[Local Program Amplifier (XLR Connector...1 Circuit)]
Input Level: -10dB
Frequency Response: 150-18 kHz (±) +/- 2 dB
AUX Program Input (D-SUB connector... 4 circuits... to each channel)
Input Level: -10 dBV (unbalanced input)
Stage Announcement Output: 600 Ω transformer-balanced, 0 dB
SPDT relay contacts, 24 V/2 A withstand voltage
General Specifications:
Remote station with built-in speaker
Dimensions: 483 (W) x 89 (H) x 267 (D) mm, 2U (mounting bracket removable)
Weight: 2.9 kg
