audio technica / ATW-1701

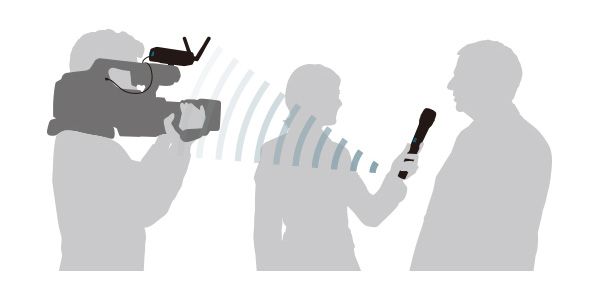

The ATW-1701 is a wireless set ideal for recording audio from handheld cameras and digital SLR cameras. By combining a beltpack transmitter and optional microphones (sold separately), you can create a system tailored to your needs. Eight channels can be used simultaneously, and the automatic channel setting function makes setup easy.

■Camera Wireless System
■2.4GHz
■Microphone sold separately

■Simultaneous use: Up to 8 channels
■Easy setup: Simply connect the cable to your equipment and select the output mode.
■Equipped with automatic channel setting function
■Three diversity modes for stable communication.
■Real-time two-way communication automatically avoids interfering frequencies.
■Shoe mount with 1/4-inch thread (Receiver: ATW-R1700) for mounting to a camera or stand.
■Receiver can operate continuously for up to approximately 12 hours.
■LCD display ideal for monitoring while shooting.
Transmitter and receiver have 4-level battery level indicators, and reception level can be displayed in 5 levels.
■Multi-pairing function allows you to pre-register up to 8 transmitters to a single receiver.
■By connecting to audio-technica wireless microphones, such as headworn and lavalier microphones, you can create a system tailored to your needs.

■System Specifications
Operating Frequency Band: 2.4 GHz ISM Band
Audio Dynamic Range: 109 dB
Distortion: Less than 0.05%
Communication Distance: 30 m radius, 60 m diameter (line of sight, no jamming)
Operating Temperature Range: 0 to 40°C
Audio Frequency Response: 20 to 20,000 Hz
Audio Sampling: 24-bit/48 kHz

■Receiver (ATW-R1700)
Reception Method: Automatic Channel Setting
Maximum Audio Output Level: +6 dBV (φ3.5 mm TRS balanced) / 0 dBV (φ3.5 mm Dual mono)
Monitor Output Level: 70 mW + 70mW (φ3.5mm, 32Ω)
Built-in battery: 3.7V dedicated lithium-ion rechargeable battery
Battery life: Approximately 12 hours (depending on usage environment)
Battery charging time: Approximately 4 hours 30 minutes (depending on usage environment) Charging temperature range: 5 to 35°C
External dimensions: H91.4 x W56 x D27.8mm
Weight: Approximately 105g

■Two-piece transmitter (ATW-T1001J)
Transmitting output: 10mW
Power supply: DC3V (2 x AA alkaline batteries)
Operating time: Approximately 6 hours (using AA alkaline batteries)
External dimensions: H107 x W70.2 x D24.9mm (excluding protrusions)
Weight: Approximately 100g (excluding batteries)

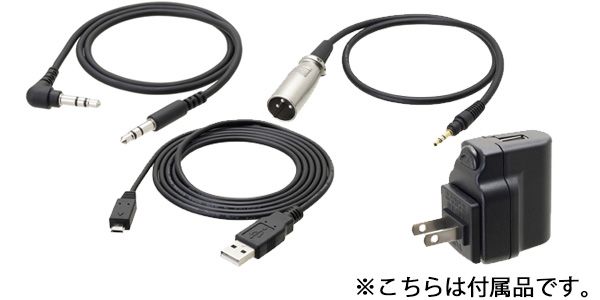

■Accessories
Two antennas
Receiver holder
AC adapter (USB type)
USB cable
φ3.5mm stereo cable
φ3.5mm to XLR male

※Interference with other devices
Bluetooth-enabled devices, wireless LAN/Wi-Fi devices, digital cordless phones, microwave ovens, and other devices using the same 2.4GHz frequency band as this product may not function properly. Audio may be interrupted by interference from devices that use radio waves in the same frequency band. Similarly, the radio waves from this product may affect these devices, so please install devices that may interfere with each other farther away.
