CLEAR-COM / RS703 TW2ch仕様ベルトパック

2ch belt pack station. The signal is transmitted by one 3-pin XLR cable according to the TW specification. It can be used in combination with the dedicated TW adapter TWC-701.

[直輸入品][Direct Import]

■ TW 2ch specification belt pack
■ Simple and functional design
■ Belt clip can rotate 90 degrees
■ Some functions can be customized with DIP switches

[General]
・Operating voltage: 12V to 30V
・Operating temperature: 0° to 70°
・Current consumption: ~26mA (when all inputs are off)
・Dimensions (excluding protrusions: 114.3 (W) x 86.4 (H) x 43.2 (D) mm
・Weight: 0.31kg
[Mic preamplifier]
・Frequency characteristics: 280Hz to 15kHz ±3dB
・Distortion rate: <0.1%
・S/N ratio:> 65db
[Headphone amplifier]
・Frequency characteristics: 150-20kHz ± 3dB
・Distortion rate: <0.5%
・S/N ratio:> 50dB
・Crosstalk:> 80dB
・Side tone signal:> 45dB (-80dB mic input)

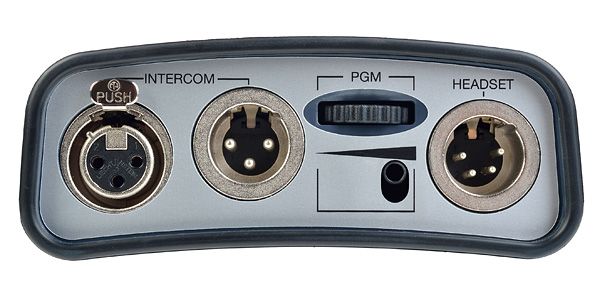

[Connector]
・Intercom line: XLR 3-pin male x 1, XLR 3-pin female x 1
・Headset: XLR 4-pin male x 1
[DIP switch]
1) Microphone type selection: ON = Dynamic (default), OFF = Electret
2) Headset output: ON = High (default), OFF = Low
*The initial setting at the manufacturer is Low, but High is the initial setting for domestic shipments.
3) Minimum volume setting (Ach): ON = Mute at min level (default), OFF = Not silent at min level
4) LED settings: ON = LED normal operation (default), OFF = All LEDs dark
5) Call on talk setting (Ach): ON = Call occurs operation, OFF = No call when talk on (default)
6) Toe clutch setting (Ach): ON = Latch enabled (default), OFF = Latch disabled
7) Minimum volume setting (Bch): ON = Mute at min level (default), OFF = Not silent at min level
8) RTS/Clear-Com settings: ON = RTS compatible, OFF = Clear-Com compatible (default)
9) Call on talk setting (Bch): ON = Call occurs operation, OFF = No call when talk on (default)
10) Toe clutch setting (Bch): ON = Latch enabled (default), OFF = Latch disabled
