EOWAVE / DOMINO

The Domino Module is a compact, discrete analog synth voice module that combines a VCO, VCF, VCA, and envelope.

■Synthesizer

EOWAVE Domino is a MIDI-compatible discrete analog synthesizer in the vein of the KORG MS20 and Roland TB-303. All of the VCO, VCF, and VCA circuits used in the Domino are discrete, transistor-based circuits. This transistor architecture achieves a simple yet extremely unique sound. Its rich yet vivid sound boasts a quality that allows it to be used as is without relying on external effects processing.

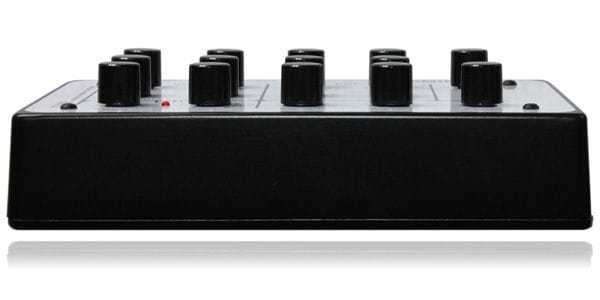

The sound generator section is simply configured with 1 VCO, 1 VCF, 1 VCA, 1 Env, and 1 LFO. The cute body, reminiscent of the domino pieces in the board game, is housed in a sturdy aluminum die-cast chassis, and the easy-to-understand control panel design allows you to quickly achieve the sound you imagine.

Voice Configuration
■1 x Analog Oscillator (Sawtooth/Square Wave Mixable)
■Auto Glide (On during legato playing, Time: Set via MIDI CC)
■LFO Pitch Modulation
■LFO Pulse Width Modulation
■1 x 24dB Analog Resonant Filter
■LFO and Envelope Cutoff Modulation
■1 x LFO (Speed ​​Control: 0-20Hz, 8 Waveforms, MIDI Clock Sync Capable)
■1 x Envelope (Time: 1ms-10s, Attack, Decay/Release, Sustain)
■Analog VCA
■VCA Control: Envelope/Gate
■Accent Function (On at Velocity Values ​​of 120 or Higher)

Sequencer & Arpeggiator
■8-Step Sequencer (MIDI CC) (Step control via MIDI)
■Arpeggiator (1-3 octaves, ascending/descending/ascending & descending/play order, latch mode)
■MIDI clock sync capable

Connections
■Audio Input (unbalanced, 6.3mm standard phone jack)
■Audio Output (unbalanced, 6.3mm standard phone jack)
■Power Input (dedicated AC adapter, 12VAC/1A)

General
■Dimensions: 18.5 x 12 x 5.5 cm (7.7 x 4.7 x 2.1 in)
■Weight: 450 g (17.7 oz)
■Accessories: Japanese manual, AC adapter

Note: The step sequencer, arpeggiator, and other settings and editing are performed via external MIDI control change messages. These settings cannot be configured on the DOMINO itself; a MIDI keyboard, MIDI controller, or DAW software capable of sending MIDI control change messages is required.
