SONIC / 579775

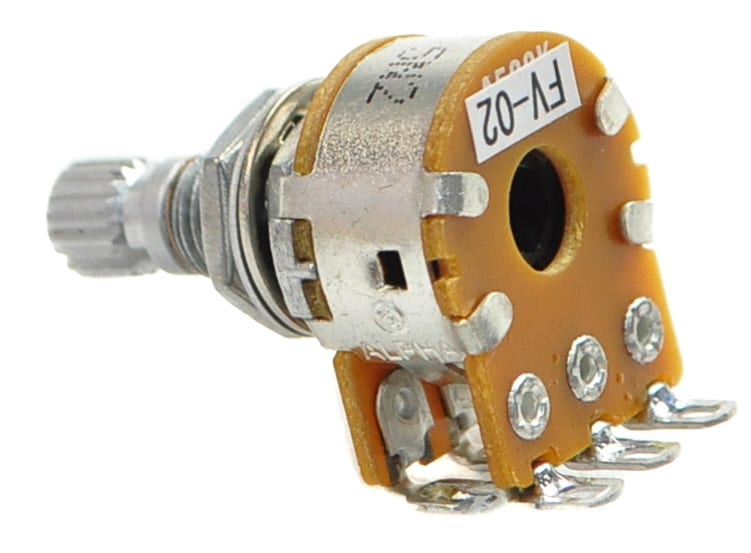

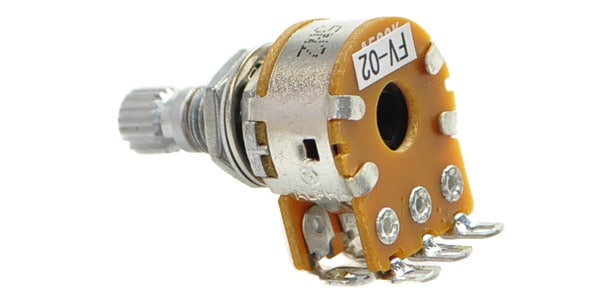

SONIC's full-up volume pot eliminates signal loss when the volume is turned up to full. The FV-02 FULL-UP VOLUME POT 500kΩ 7mm features a 500kΩ specification that's ideal for guitars equipped with humbucking pickups with a 7mm pot hole. When turned up to full, the circuit is bypassed, providing a completely clear, crisp, full-up sound.

■ Full-Up Volume Pot
■ Split Shaft
■ 500kΩ
■ A-Curve
■ Mounting Hole: 7mm

~From the Manufacturer~
With volume and tone circuits using standard potentiometers, even at full volume, some signal passes through the pot's internal circuitry, resulting in loss and a loss of clarity.
However, with Sonic's ""Full-Up Volume Pot"" and ""Full-Up Tone Pot,"" the volume and tone circuits are completely bypassed at full volume, resulting in a completely clear, full-up sound. Of course, turning down the volume or tone controls still allows for conventional control.

- The Full-Up Volume pot's body is metric size (7mm). To install it on guitars of other sizes, please use a pot adapter ring.
- There are no Full-Up Volume pots that fit Gibson Les Paul Models, except for the Historic Collection.
- The Full-Up Volume and Full-Up Tone pots are designed for volume and tone control only. Please note that they cannot be used for any other purpose.
While the Full Up Volume and Full Up Tone can be used individually, we recommend using them together to maximize performance.

*Images are for illustrative purposes only.
*When replacing guitar/bass parts, there may be minor differences in specifications, so we do not guarantee or confirm installation. Please note that part replacement requires modification.
