MONTREUX / 8482

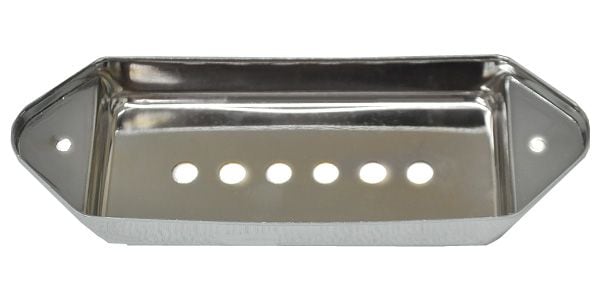

This is a MONTREUX pickup cover for the CASINO bridge (rear) pickup. [LF] String spacing: 10mm, Color: Chrome.

■Pickup Cover
■For CASINO Bridge (Rear) PU
■String Spacing: 10mm
■Screw Hole Spacing: Approx. 98mm
■Size
Square Section (Outer)
・Dimensions: 87mm x 43mm
・Height: 14mm (1st & 6th strings) at the neck side / Approx. 12.5mm (1st & 6th strings) at the center
・Approx. 14mm (1st & 6th strings) at the bridge side / Approx. 12.5mm (1st & 6th strings) at the center
Inner Section (Pull-Up Area)
・Dimensions: Approx. 82.5mm x 39mm
・Height: 13mm (1st & 6th strings) at the neck side / Approx. 11.5mm (1st & 6th strings) at the bridge side / Approx. 11.5mm (1st & 6th strings) at the center
・Thickness of Triangular Section: Approx. 5mm
■Color: Chrome

※Images are for illustrative purposes only. ※Dimensions are measured by our company and not by the manufacturer. Also, please note that the measurements are taken from the package, so please use them as a reference only.
