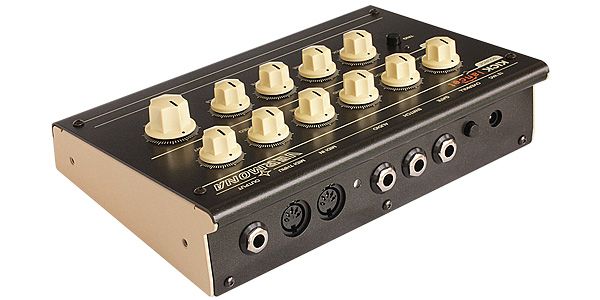

VERMONA / Kick Lancet

VERMONA's analog kick drum generator. It offers a wide range of trigger functions in addition to MIDI. It also features pitch envelope and volume decay time adjustment, and LFO pitch modulation.

Kick Lancet is an analog kick drum generator developed based on the kick channel of the company's 8-channel analog drum sound source, the DRM-1 MkIII.

Kick Lancet has a very clear and intuitive interface, making it easy to create fat analog kick drum sounds. It also has a wide range of trigger functions in addition to MIDI, making it easy to incorporate into a variety of systems and performance sets.

[Product Specifications]
Analog Kick Drum Generator

Sound Generator
Polyphony
1
Sound Generator Method
Fully Analog
LFO
1
Controllers
DECAY
VCA Decay/Release Time
PITCH
Oscillator Pitch
BEND
Pitch Envelope Depth
TIME
Pitch Envelope Decay/Release Time
FM FREQ
LFO Frequency
FM INT
LFO Speed ​​(Pitch Modulation)
ATTACK
Adds a short click to the attack
NOISE
Adds a short noise to the attack
WAVE
Mixes sine and square waves
BALLS
Adds a fat tone
Trigger
MIDI
Can be set to any channel and note number. Velocity compatible (Pitch playing is not supported)
GATE
+5V gate signal
SWITCH
Mementary-type footswitch
AUDIO
Audio signal, trigger signal

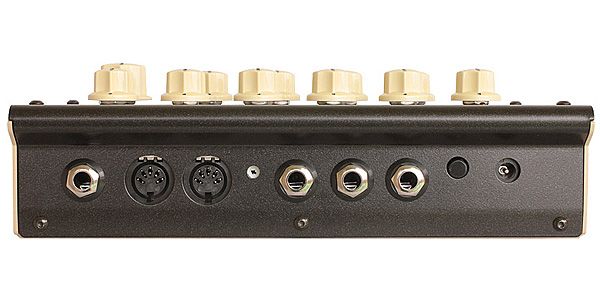

Inputs/Outputs
MIDI
IN, OUT
External trigger input terminal
Standard phone plug (GATE, SWITCH, AUDIO)
Audio output terminal
Mono unbalanced standard phone plug
Power
AC adapter (12VDC)

Dimensions
Width: 210mm
Depth: 145mm
Height: 45mm

Weight: 600g
