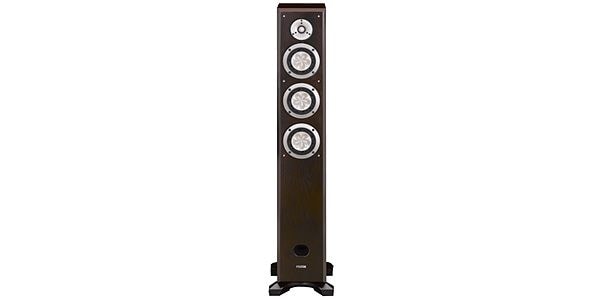

Fostex / GX103MA DB

The GX103MA DB speaker system uses a 20mm pure magnesium ridge dome diaphragm tweeter, achieving both the quality of pure audio and the realism of a surround system at a high level.

■Type: 3-way, bass-reflex (crossover: 150Hz, 1.8kHz)
■Output SPL: 86dB/W (1m) / 87.5dB (1m) at 2.83V input
■Frequency Range: 40Hz-45kHz (-10dB)
■Maximum Input Power: 100W
■Drivers:

20mm magnesium alloy ridge dome TW

10cm HR aluminum alloy diaphragm WF x 2

10cm HR aluminum alloy diaphragm BWF x 1

■Impedance: 6Ω
■Dimensions: 228(W) x 1030(H) x 285(D)mm (including grille base)
■Total Weight: 22.5kg
■Enclosure Material: High-quality CE plywood (camphor/eucalyptus)
■Finish: Natural maple veneer, glossy finish
