MUTEC / iCLOCK dp

Master clock/video sync generator and backup power supply model

■Master Clock/Video Sync Generator with Redundant Power Supply

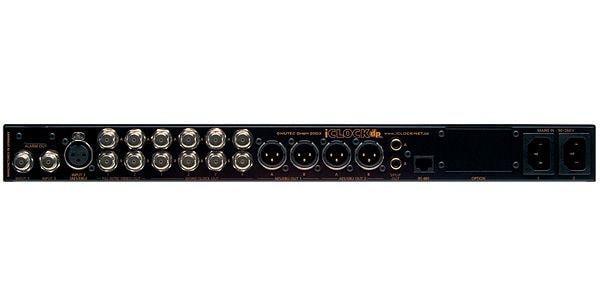

iCLOCKdp with Dual Power Supply

This flagship model of master clock/video sync generator embodies MUTEC's technology. It synchronizes and generates word clocks from 8.0 kHz to 24.576 MHz (Super Clock compatible) and supports a variety of signals, including video sync and DSD clock.

It can simultaneously generate NTSC or PAL video sync. NTSC video sync also supports tri-level sync.

It can detect and lock to up to three different external clocks.

It features various redundant functions for stable clock output, including sequence sync, which automatically switches to the next reference input if the external clock input is unexpectedly interrupted.

Each output pair can output a clock with a different frequency.

An optional video sync setting module is available to expand the video sync output capabilities and drive each output individually.

External Reference Input
- SD (NTSC, PAL/SECAM), HD video sync
- Word Clock: 8.0 kHz to 24.576 MHz (Super Clock compatible)
- AES/EBU3, 11, id, S/PDIF: 32.0 kHz to 24.576 MHz (Super Clock compatible)
- DSD Clock: DSD64, DSD128, DXD
- GPS: 1.0/2.5/5.0/10.0 MHz

Word Clock/Video Sync Output
- SD (NTSC, PAL/SECAM), HD video sync
- Blackboard, composite sync
- Word Clock: 8.0 kHz to 24.576 MHz (Super Clock compatible)
- AES/EBU11, S/PDIF: 16.0 kHz to 192.0 kHz DSD Clock: DSD64, DSD128, DXD
Film/Video Frame

Dimensions and Weight: W483 x H45 x D243 mm, 3.1 kg
