TASCAM / MDCD1BMKIII

The TASCAM MD-CD1BMKIII professional CD player/MD recorder is the successor to the MD-CD1BMKII, a standard professional MD/CD combination device that offers a space-saving 2U footprint while also being equipped with a variety of on-site functions. The CD player and MD recorder can be operated independently or simultaneously, and a wide range of applications are possible, including continuous playback and dubbing from CD to MD at up to 4x speed.

■CD Player/MD Recorder

The CD player and MD recorder can be operated independently and simultaneously, and features include continuous playback and up to 4x speed dubbing from CD to MD, making the most of the combo unit's benefits. The CD player can play not only audio CDs, but also WAV and MP3 files. It also supports CD-R/CD-RW discs. Pitch control from -50% to +16% can be adjusted using a dedicated knob on the front panel, ensuring intuitive and reliable operation. The MD recorder supports LP2 and LP4 long play modes. Both the CD player and MD recorder are equipped with comprehensive playback functions such as auto cue and auto ready.

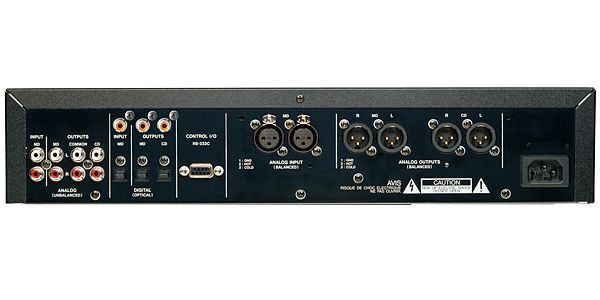

The unit offers unbalanced and balanced analog inputs and outputs, and coaxial and optical digital inputs and outputs. Ideal for a variety of locations, including concert halls, stores, broadcasting stations, theme parks, museums, and event venues, the unit also supports RS-232C serial control, making it suitable for installation in locations requiring remote control.

Main Specifications
CD player compatible with CD/CD-R/CD-RW discs

Playback of audio CDs and CDs recorded with WAV and MP3 files

MD recorder compatible with SP (stereo), MONO, LP2, and LP4 discs (different recording and playback modes possible on the same MD disc)

CD player and MD recorder can be used independently

Program playback settings can be saved for up to 100 discs (MP3 and WAV files occupy two tracks of storage space, reducing the number of discs that can be saved)

RCA unbalanced analog CD output

XLR balanced analog CD output

COAXIAL digital CD output

OPTICAL digital CD output

RCA unbalanced analog MD input/output

XLR balanced analog MD input/output

COAXIAL digital MD input/output

Optical digital MD output

2U rackmount size

Changes from the MD-CD1BMKII

Playback of WAV files and CD discs
Program playback settings for up to 100 discs (CD and MD) can be saved.

COAXIAL digital input/output (CD output and MD input/output).

MD recorder pitch control is not supported.

Direct playback of tracks 1-10 is possible using the PS/2 keyboard's numeric keypad.

Panel lock function prevents accidental operation.

Disc eject block.

Specifications
CD Player
- Disc Formats: 12cm/8cm, CD/CD-R/CD-RW
- Playback Formats: Audio CD (CD-DA), WAV, MP3
MD Recorder
- Disc Formats: MiniDisc
- Recording Modes: STEREO/MONO/LP2/LP4
- Recording Time (using an 80-minute disc): 80 minutes (standard), 160 minutes (MONO), 160 minutes (LP2), 320 minutes (LP4)
Analog Input
- Unbalanced Input (MD): RCA
- Balanced Input (MD) : XLR-3-31 (1: GND, 2: HOT, 3: COLD)
Analog Output
・Unbalanced Output (CD/MD/COMMON): RCA
・Balanced Output (CD/MD): XLR-3-32 (1: GND, 2: HOT, 3: COLD)
PHONES
・Headphone Output: Standard stereo jack
・Maximum Output: 20mW + 20mW (32Ω load)
Digital Input
・COAXIAL (MD): RCA
・OPTICAL (MD): TOS
・Format: Compliant with IEC 60958-3 consumer standard (S/PDIF)
Digital Output

・COAXIAL (CD/MD): RCA
・OPTICAL (CD/MD): TOS
・Format: Compliant with IEC 60958-3 consumer standard (S/PDIF)
Power Consumption: 23W
External Dimensions Dimensions: 483 (W) x 94 (H) x 308 (D) mm
Weight: 5.5 kg
