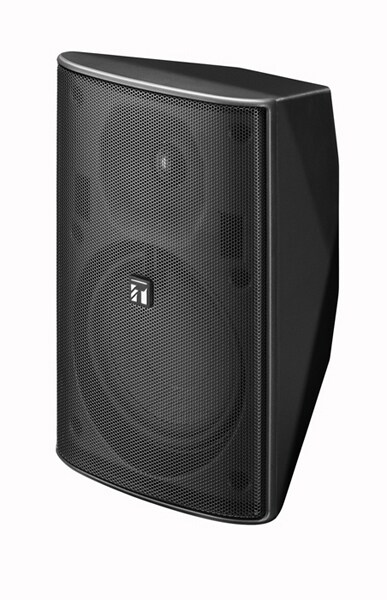

TOA / F-1300BM Compact Speaker

TOA compact speaker, 30W, high impedance, 1 piece

■Compact Speaker
- This is a wide-directivity, 2-way compact speaker system with a high-efficiency, wide-bandwidth, and high-power-resistance design. Using included or separately available brackets, it can be mounted to suit the installation location and application.
■Enclosure Type: Bass-reflex
■Rated Input: 30W
■Rated Impedance: 330Ω (30W), 1kΩ (10W), 3.3kΩ (3W), 10kΩ (1W)
■Output Sound Pressure Level: 90dB (1W, 1m) in a semi-free sound field
■Frequency Response: 80-20,000Hz, -10dB in a semi-free sound field
■Crossover Frequency: 2kHz
■Directivity Angle: Horizontal: 110°, Vertical: 100°
■Speakers Used: Low-frequency: 13cm cone type / High-frequency: 25mm dome tweeter
■Speaker type
10W, 30W: L-class (92dB(A) or higher when measured with the second signal of the audio alarm according to the Fire Service Act Enforcement Regulations)
3W: M-class (87dB(A) or higher when measured with the second signal of the audio alarm according to the Fire Service Act Enforcement Regulations)
1W: S-class (84dB(A) or higher when measured with the second signal of the audio alarm according to the Fire Service Act Enforcement Regulations)
■Input terminal: Push-button terminal
■Dimensions: 162 (W) x 2 50 (H) x 161 (D) mm
■Weight: 3.6 kg (including included brackets)
■Accessories: Speaker bracket... 1, Joint bracket... 1, Wall bracket... 1, Bracket assembly screws... complete set
■Sold separately
Board hanger bracket: HY-BH10B
Ceiling mounting bracket: HY-CM10B (for installing the speakers horizontally)
Cluster bracket: HY-CL10B
Speaker stand: ST-16A
*Bolts and nuts for attaching the brackets to a wall or ceiling are not included.
