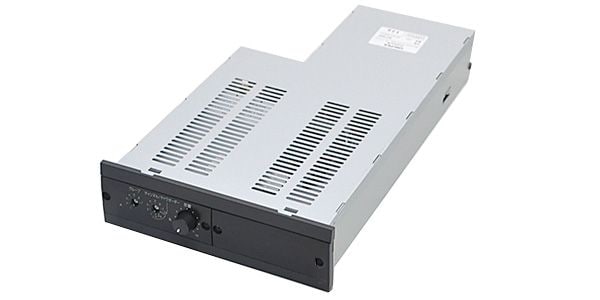

UNI-PEX / AU-800

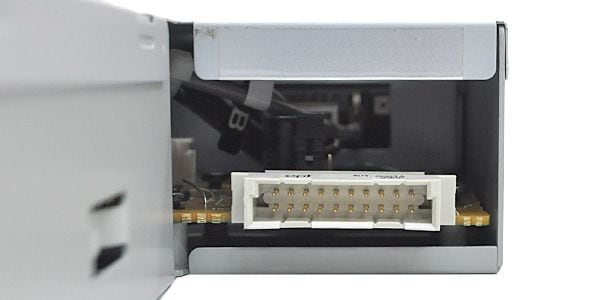

This wireless receiver is for the BX Series unit-type desktop amplifier. By adding the optional DU8200, you can receive up to two channels simultaneously. It is installed in the expansion slot of the BX Series.

■Wireless Receiver

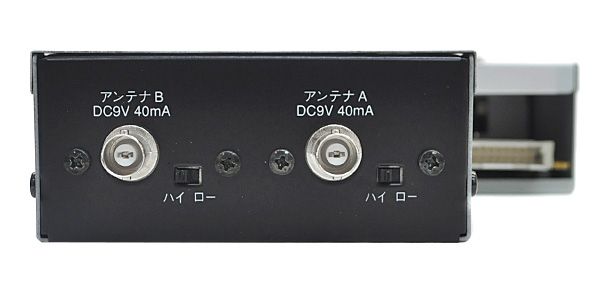

■Diversity
■800MHz Band

■Power Supply: DC12V (Powered from the embedded device)
■Current Consumption: 300mA or less
■Receiving Frequency: 806.125MHz to 809.750MHz (125kHz intervals, 30 frequencies)
■Receiving Method: PLL-Controlled Superheterodyne
■Receiving Indicator: Two-Color Light-Emitting Diode (Red for standby, Green for receiving)
■Rated Output: -22dBV
■Frequency Response: 50Hz to 15kHz (50μs Emphasis)
■Dimensions: 169mm W x 50mm H x 322mm D
■Weight: Approx. 1.2kg

■Option for BX Series Desktop Amplifiers
■Additional Tuner DU8200
