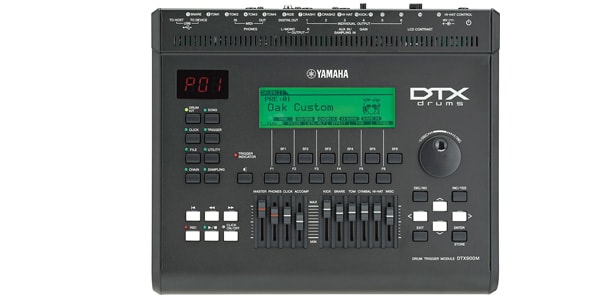

YAMAHA / DTX900

The DTX900M is a sound module featuring carefully crafted acoustic drum sounds that capture the unique characteristics of different materials. The built-in SDRAM allows you to add your own original sounds. It also includes song data for various genres, a metronome function, and a groove check function, all of which are perfect for practicing drums.

■Drum Trigger Module
■DTX drum900 Series
■Sound Generator:
Sound Generation Method: AWM2
Maximum Polyphony: 64 notes
Waveform Memory: 205MB equivalent (16-bit linear conversion)
Number of Voices: Drums/Percussion: 1,115 tones, Keyboard: 211 tones
Number of Drum Kits: Preset: 50 kits, User: 50 kits
Effects: Variation (for drum kits) x 51 types, Chorus x 19 types, Reverb x 9 types, Insertion (AUX IN/SAMPLING Input (for EQ) x 51 types, Master Effects x 9 types, Master EQ (5 bands)
■Trigger:
Trigger Setup: 9 preset types, 5 user types
Pad Song: Start/Stop, Chase, Cutoff, Plays up to 4 songs simultaneously
■Sampler:
Maximum Sample Number: 1,016 (Used as User Voice)
Sampling Source: Analog Input L/R, Stereo Out (Resampling)
Sample Data Bit Rate: 16-bit
Sampling Frequency: 44.1kHz, 22.05kHz, 11.025kHz, 5.5125kHz (Stereo/Mono)
Waveform Memory: Internal SDRAM: 512MB
Maximum Sample Size: 1 mono sample: 32MB, 1 stereo sample: 64MB
Sampling Time per Sample: 44.1kHz: approx. 6 minutes 20 seconds, 22.05kHz: approx. 12 minutes 40 seconds, 11.025kHz: approx. 25 minutes 20 seconds, 5.5125kHz Duration: Approximately 55 minutes and 40 seconds (same for both stereo and mono)
Sample Format: DTX900 original format, WAV, AIFF
■Sequencer
Sequencer Capacity: Approximately 152,000 notes
Note Resolution: Quarter notes/480
Recording Method: Real-time
Number of Tracks: 2
Number of Songs: Demo Songs: 3, Practice Songs: 44, Pad Songs: 40, User Songs: 50
Sequence Format: DTX900 Original format, SMF format
■Metronome
Tempo: 30-300, Tap tempo function
Beat: 1/4-16/4, 1/8-16/8, 1/16-16/16
Timing: Accent, quarter note, eighth note, sixteenth note, triplet
Click Voice: 8 presets, 1 user
■Practice functions: Major break, groove check, rhythm gate
■Other
Display: 240 x 64 pixels Graphic LCD (backlit), 3-digit, 7-segment LED
Connections: Trigger Inputs 1-9, 12-15 (standard stereo phone jack, L: trigger, R: rim switch), Trigger Inputs 10/11 (standard stereo phone jack, L: trigger, R: trigger), HI-HAT CONTROL (standard stereo phone jack), OUTPUT L/MONO, R (standard phone jack), DIGITAL OUT (S/P DIF), INDIVIDUAL OUTPUT 1-6 (standard phone jack), PHONES (standard stereo phone jack), AUX IN/SAMPLING IN (standard stereo phone jack), MIDI IN/OUT, USB (TO HOST, TO DEVICE), DC IN
Power Consumption: 18W
Dimensions and Weight: 344mm (W) x 295mm (D) x 96mm (H), 3.6kg
Accessories: Power Adapter (PA-300B), Warranty Card, Instruction Manual, Data List, Module Holder, Four Module Holder Screws, CUBASE AI DOWNLOAD INFORMATION (About Cubase AI downloads)
