UNI-PEX / WM-8100A

Variations

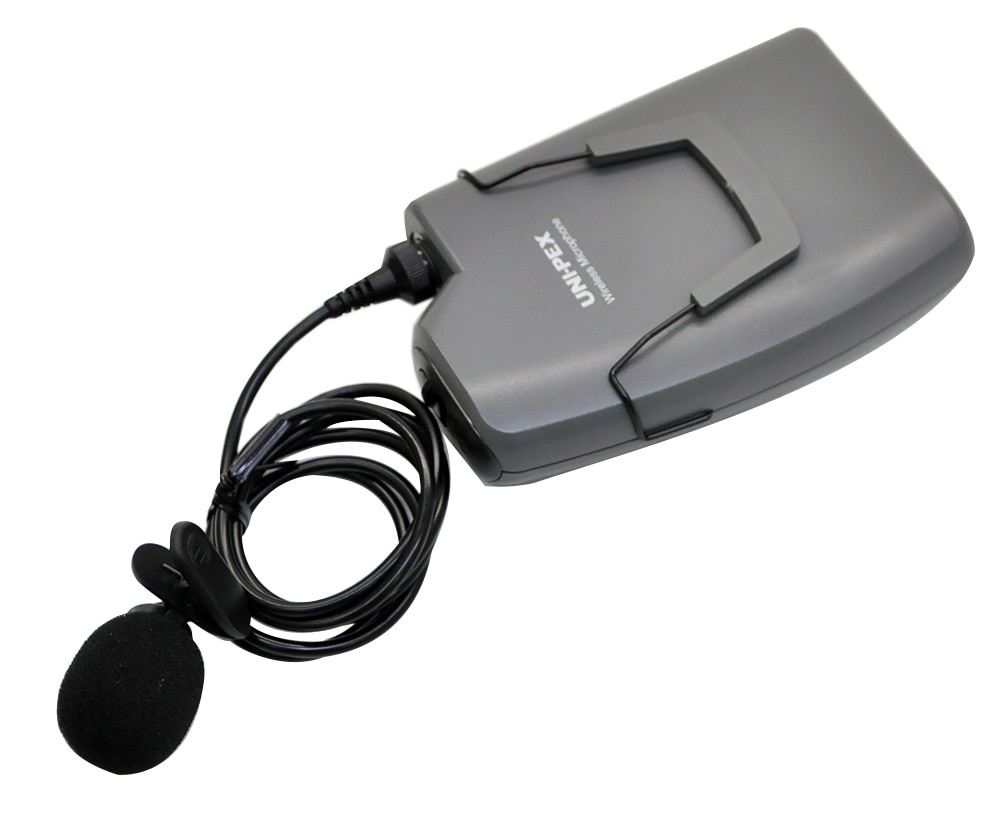

This 800MHz band tie-clip type wireless microphone uses a crystal-controlled PLL synthesizer system and a unidirectional electret condenser microphone unit, enabling clear voice amplification.

- Using a crystal-controlled PLL synthesizer, any one of 30 frequencies can be selected and used.
- When combined with a receiver that supports simultaneous use of 15 frequencies, a wireless system can be created that can use up to 15 microphones simultaneously.
- Noise reduction and tone squelch achieve a wide dynamic range and reduce noise when the power switch is turned on and off.
- Noise reduction can be set to suit the receiver being used.
- Using the separately sold one-button close-talking microphone allows transmission with a hand switch.
- Using the two-button close-talking microphone allows frequency switching, allowing audio output switching on existing receivers.
- The transmission output is switchable between 2mW and 6mW, and can be switched with a switch depending on the application and purpose.
- A built-in antenna is used, resulting in a lightweight and durable design.

■Transmit Frequency: 806.125 MHz to 809.750 MHz (125 kHz intervals, 1 of 30 frequencies)
■Radio Wave Type: 110KF3E
■Transmission Method: Crystal-Controlled PLL Synthesizer
■Modulation Method: Reactance Modulation
■Transmit Bandwidth: Within 110 kHz
■Frequency Stability: Within ±20 ppm
■2 mW/6 mW (Switchable)
■Antenna: Built-in Antenna
■Modulation Sensitivity: ±5.00 kHz FM (SENS1 90 dBSPL, SENS2 80 dBSPL at 1 kHz)
■Maximum Frequency Deviation: ±40.0 kHz FM
■Microphone: Unidirectional Electret Condenser Microphone
■Frequency Response: 100 Hz to 10 kHz (1kHz reference, 50μs emphasis)
■Maximum input sound pressure: 116dBSPL (SENS1)
■Battery: 1 x AA battery (R6PU)
■Current consumption: Approximately 65mA (6mW, at room temperature, 1.5V), approximately 45mA (2mW, at room temperature, 1.5V)
■Operating temperature range: 0°C to +40°C

■Dimensions:
- Main unit: Width 66mm, Length 106mm, Thickness 22mm
- Microphone: Diameter φ14mm, Length 25.5mm
- Microphone-to-main unit cable: Approximately 800mm

■Weight: Approximately 120g (including battery)
■Finish: ABS polycarbonate resin, Stone Silver (approximate Munsell N4.5 color)

■Accessories:
- Microphone holder x 1
- Microphone clip x 1
- Windscreen x 1 1
- Channel setting driver x 1
- Channel display label x 1
- AA battery (R6PU) x 1
