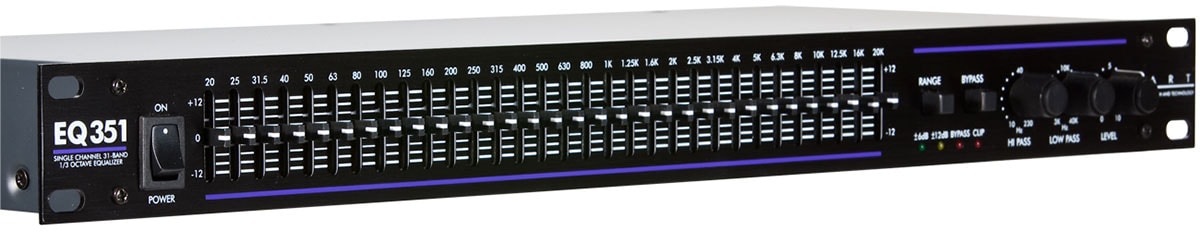

ART / EQ351

A mono 31-band graphic equalizer that supports not only XLR and phone, but also RCA input and output.

■Type: Mono Graphic Equalizer
■Frequency Range: 31 Bands
■Frequency Response: 20Hz–20kHz (+0.5dB)
■THD + Noise: 0.01%
■Power Consumption: 12W

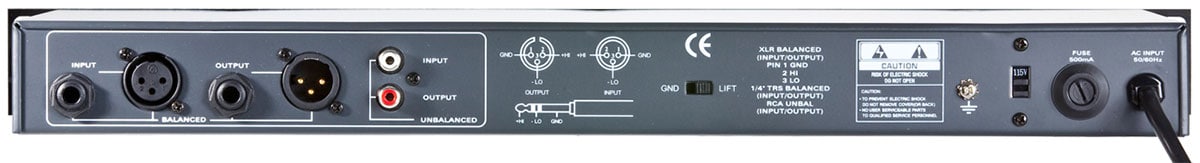

■Input Connectors: XLR, TRS Phone, RCA (Unbalanced)
■Output Connectors: XLR, TRS Phone, RCA (Unbalanced)
■Dimensions: 48.2W x 4.4H x 21.5Dcm, 1U
■Weight: 4.1kg
■S/N Ratio: 94dB
■High-Pass Filter: 10–250Hz
■Low-Pass Filter: 3kHz–40kHz
■Level Adjustment: ±6dB/±12dB
■Fader: 20mm
■Clip Level Indicator
■Ground Lift Switch
■Power Supply: (Switchable) 95–130VAC, 50/60Hz
