AVIOM / 6416Y2

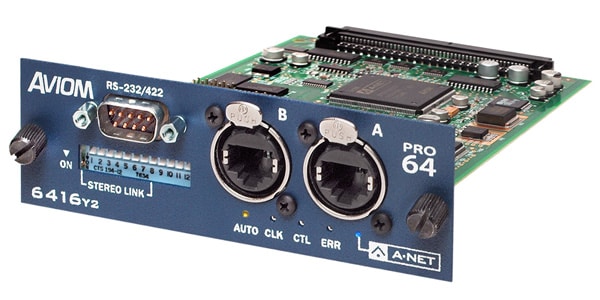

The 6416Y2 is an interface card manufactured by AVIOM. It is compatible with YAMAHA digital mixers and allows simultaneous 16-channel input/output.

■16-channel input/output card compatible with Yamaha digital mixers.

*16-channel input/output possible simultaneously.
*Variable sample rate: 44.1kHz to 96kHz.
*Stereo link (for Pro16).
*RS-422/232 VDC I/O (Yamaha remote control protocol).
*Multiple cards can be used simultaneously.
*YAMAHA mini-YGDAI

[Key Specifications]

- Input/Output: 16 in / 16 out
- Format: YAMAHA mini-YGDAI Expansion Card
- Sample Rate: 44.1 kHz - 96 kHz
- VDC: RS-232/RS-422 (DB9; DIP switch)
- A-Net: 2 x RJ45 (EtherCon)
- Dimensions: 121 x 159 x 38 mm, 0.3 kg

* Specifications and prices are subject to change.
