CLASSIC PRO / AU-9

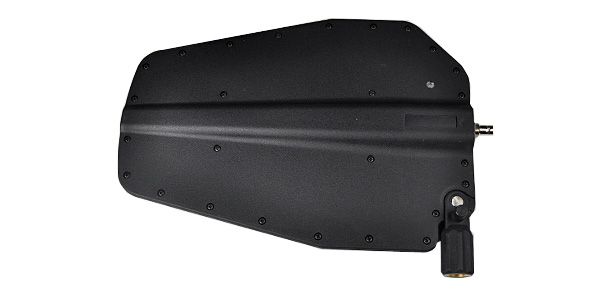

This unidirectional extension antenna for the CLASSIC PRO wireless system can be mounted on a microphone stand.

Extended Wideband Antenna
Microphone stand mountable (5/8"")
Cable sold separately

- Unidirectional design enhances forward sensitivity, reduces noise and interference from outside the desired direction, and improves signal quality and reception efficiency.
- Suitable for both indoor and outdoor use.

- Product Specifications
■ Type: Log Periodic Antenna
■ Frequency Band: UHF Wideband (500-950MHz)
■ Gain: 3-5dBi
■ Impedance: 50Ω
■ Voltage Standing Wave Ratio: 2.0 or less (500-950MHz)
■ Reception Range: Cardioid
■ 3dB Sensitivity Increase: 80° E-plane, 140° H-plane
■ Connector: BNC female connector

- Dimensions: 295(W) x 210(H) x 31(D) (mm)
