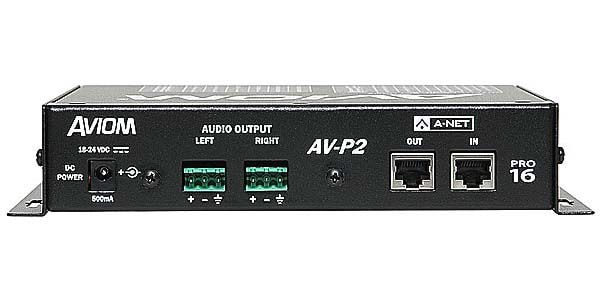

AVIOM / AVP2

This two-channel output module can be installed in the Pro16 series and any two channels can be selected and output.

■Cue System Pro16 Series
■2-channel (or 1-channel) output module
■By incorporating it into the Pro16 series, you can select and extract any two channels.
■2-channel balanced line-level output
■2 x Euroblock
■Channel select: 16-position rotary switch
■Output level: +4dBu to -31dBu (1.5dB steps) 6-position DIP switch
■1 x A-Net In, 1 x A-Net Out
■External DC 100-240V 50-60Hz 30VA 18-24VDC 0.5amp
■Size: 189mm(W) x 178mm(D) x 1 U(H) 1.5kg
