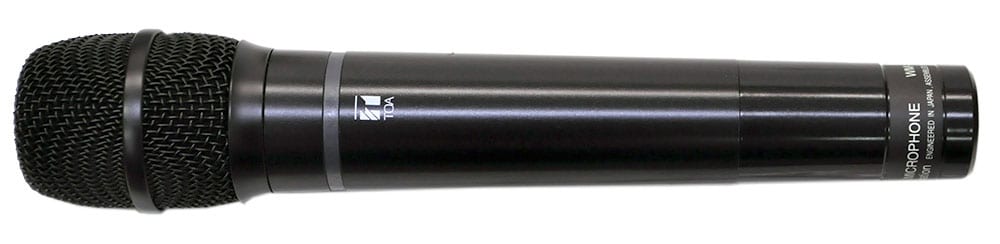

TOA / WM-1230

This 800MHz handheld, waterproof wireless microphone meets IPX4 waterproof standards. It uses a PLL synthesizer, making it suitable for a wide range of applications, from simultaneous multi-channel use to long-distance operation.

This handheld, waterproof wireless microphone complies with the standards for specific low-power radio station radio microphones (800MHz band). Its waterproof performance meets IPX4 standards. The use of a PLL synthesizer allows you to select and transmit any one of the 30 frequencies assigned to Type B with a switch. The transmission output can be switched between 2mW (L) and 6mW (H), making it suitable for a wide range of usage conditions, from simultaneous multi-channel use to situations requiring long reach. It is also antibacterial-treated, so you can use it with peace of mind.



■Radio Wave Type: F3E
■Transmit Frequency: 806.125-809.750 MHz (1 of 30 frequencies)
■Tone Signal: 3-frequency switching
■Transmission Method: Crystal-Controlled PLL Synthesizer
■Rated Antenna Power: 2 mW (L) / 6 mW (H)
■Range:

2 mW (L): Approximately 60 m under good outdoor conditions

6 mW (H): Approximately 100 m under good outdoor conditions
■Modulation Sensitivity: ±4.8 kHz (1 kHz, 90 dB SPL input)
■Maximum Sound Pressure Input: 126 dB SPL (at ±38 kHz deviation)
■Input Equivalent Noise: 34 dB SPL or less (using A-curve)
■Microphone: Unidirectional electret condenser type
■Frequency Response: 100 Hz to 12 kHz
■Pre-emphasis: 50 μS
■Antenna: Built-in
■Battery: 1 R6PU AA battery
■Battery Life:
2 mW: Approximately 14 hours
6 mW: Approximately 10 hours
Manganese battery (black) R6PU, continuous use at room temperature
■Operating Temperature: 0°C to +40°C
■Water Resistance: IPX4
■Finish:
Body: Aluminum, dark gray (approximate Munsell N2.0 color) paint
Head: Metal mesh (iron), dark gray (approximate Munsell N2.0 color) Painted
■Weight: 285g (including batteries)
■Accessories
- Microphone holder (φ30-φ35, with NS5/8 to U5/16 adapter) x 1
- AA battery (R6PU) x 1
- Setting screwdriver (built-in) x 1
- Color mark (6 colors) x 1
- Channel sticker x 1
- Storage case x 1
- Anti-roll pad x 1
