CLEAR-COM / CS-702

This is a 2-channel main station for the Encore series made by CLEAR-COM.

[直輸入品][Direct Import]

[Headset Microphone]
- Input: 1KΩ dynamic type
- Input level: -55dBV, -10dBV MAX
- Frequency response: 250Hz - 12KHz
- Limiter range: 20dB
- Gain: +41dB
[Headphones]
- Load impedance: 50Ω - 2KΩ
- Output level: +20dBV (600Ω)
- Distortion: <0.2% THD (1KHz)
- Frequency response: 200Hz - 18KHz (±) 2dB
- Gain: (from intercom line) +37dB
[Program Amplifier (MIC/LINE) (Select the input level)
- Input impedance: 1 kΩ balanced (MIC) / 100 kΩ balanced (LINE)
- Input level: -65 dBv (MIC) / -15 dBv (LINE)
- Frequency response: 150 Hz to 18 kHz (±) 2 dB

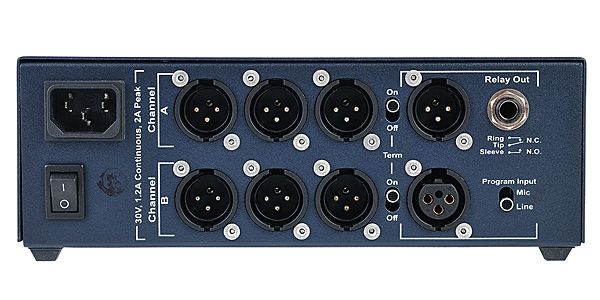

[Connectors]
- Headset: XLR-4-32 x 1
- Intercom line: XLR-3-32 x 6
- External program input: XLR-3-31 x 1
- Stage announcement output: XLR-3-32 x 1
- Monitor: 3.5 mm mini jack x 1
[General specifications]
- Output voltage/current: 30 V DC/1 A MAX
Operating Voltage: AC 100V, 50-60Hz
Power Consumption: 60W
Connectable Station Capacity: 7 speaker stations or 40 1-channel beltpack stations
Dimensions: 216(W) x 76(H) x 254(D) mm (excluding protrusions)
Weight: 2.28 kg
