SONY / ECM-673/9X

The ECM-673 is a highly directional electret condenser microphone that is ideal for use in compact HDV camcorders!

■Condenser Microphone
■Acute Directivity
■Includes Microphone Holder/Windscreen/Connection Cord

■Type: Back Electret Condenser

■Power Supply: External Power Supply: DC40-52V

■Connector: XLR-3-12C Equivalent (Male)

■Cable: φ5.0mm, 2-Core Shielded, Approx. 500mm Long

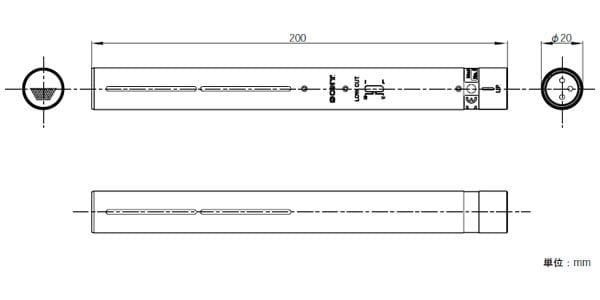

■Dimensions: Approx. φ20 x 200mm (Maximum Diameter x Total Length)

■Weight: Approx. 135g


■Frequency Response: 40Hz-20kHz
■Directivity: Acute Directivity
■Output Impedance: 220Ω±20%, Balanced
■Front Sensitivity: -36±3dB (0dB=1V/Pa, 1kHz)

■Signal-to-Noise Ratio: 77dB or More (1kHz, 1Pa)

■Noise:
・Inherent Noise: 17dB SPL or less (0dB = 2×10-5 Pa)

- Wind noise *1:

50dB SPL or less (without windscreen)

45dB SPL or less (with windscreen)

- External magnetic field induced noise: 0dB SPL/1×10-7T (1mG) or less

■ Maximum input sound pressure level: 124dB SPL *2

■ Dynamic range: 107dB SPL or more

■ Allowable operating temperature: 0-50°C
■ Allowable storage temperature: -20-+60°C


■ Accessories: Windscreen x 1, microphone holder x 1, microphone spacer x 1, connection cord x 1, instruction manual x 1, warranty card x 1

*1 The average noise output generated by the microphone when an airflow of 2m/sec is directed in each direction of the microphone, converted into equivalent input sound pressure. (0dB = 2 x 10-5 Pa)
*2 Equivalent input sound pressure converted to the input level at which the microphone output signal produces 3% waveform distortion at 1 kHz (0dB = 2 x 10-5 Pa)
