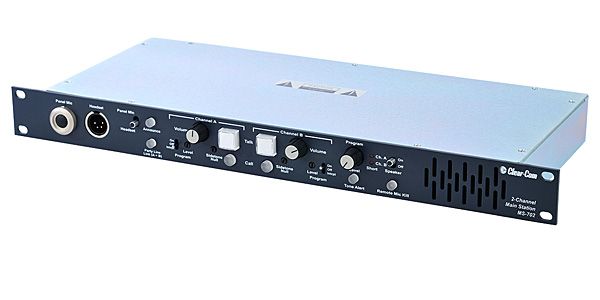

CLEAR-COM / MS702 2chメインステーション

2ch main station with built-in speaker. Hands-free calling is possible by using a headset microphone and gooseneck microphone. You can also adjust the listen level and side tone for each channel.

[直輸入品][Direct Import]

[Headset microphone]
・Input: 1KΩ dynamic type
・Input level: -55dBV, -10dBV MAX
・Frequency characteristics: 250Hz-12KHz
・Gain: +41dB
[Headphones]
・Load impedance: 50Ω to 2KΩ
・Output level: + 20dBV (600Ω)
・Distortion rate: <0.2% THD (1kHz)
・Frequency characteristics: 200Hz-18KHz (±) 2dB
・Gain: (from intercom line) + 37dB
[Speaker]
・Output level: 110dB SPL
[Program amplifier (electronic balance input)]
・Input impedance: 100KΩ electronic balance
・Input level: -20dBV (LINE)
・Frequency characteristics: 150Hz-18KHz (±) 2dB
[Connector]
・Headset: XLR-4-32
・Intercom line: XLR-3-32 × 6
・External program input: XLR-3-31
・Stage announcement output: XLR-3-32 x 1
・Relay output: 1/4 phone jack
・Hot microphone output: 1/4 phone jack
[General specifications]
・Output voltage/current: 30V DC/2A MAX (1.75A/Channel Max)
・Operating voltage: AC100V, 50-60Hz
・Power consumption: 80W
・Number of remote stations: 10 speaker stations or 40 1ch belt pack stations
・Size: 483 (W) x 44 (H) x 178 (D), EIA19 "1U * Excluding protrusions
・Weight: 2.75kg
