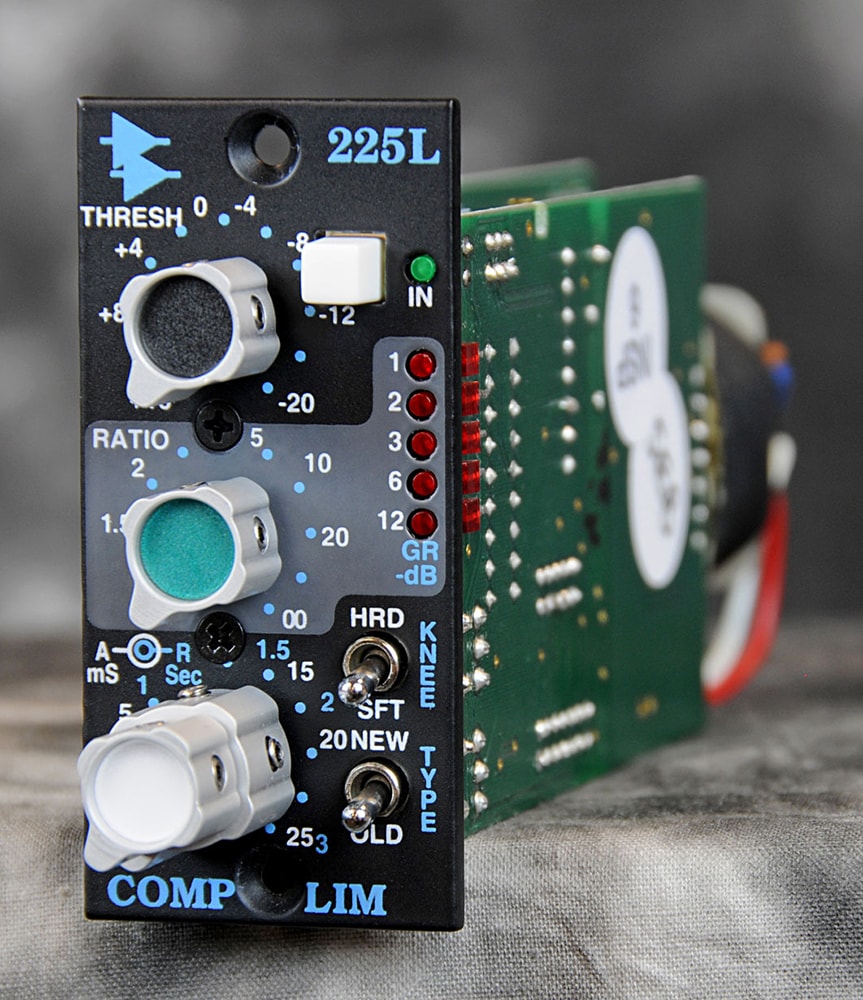

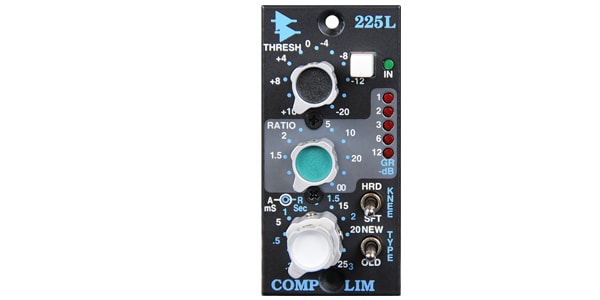

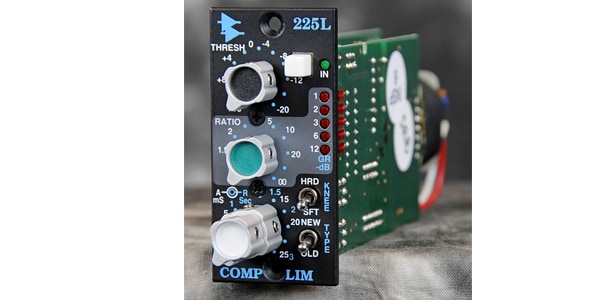

API / 225L

The API/225L is a compressor/limiter module from the 200 series. It offers switchable OLD/NEW compression modes and soft/hard knee settings, allowing for everything from natural volume adjustment to powerful limiting. It's recommended for those who want flexible sound shaping for recording and live performances.

[直輸入品][Direct Import]

■ API 200 Series

■ Compressor Limiter

■ Threshold Range: -20 to +10 dBu

■ Continuously Variable Ratio Setting: 0 to ∞

■ Adjustable Release Time: Up to 3 Seconds

■ Maintains Constant Gain

■ LED Gain Reduction Meter

■ +28 dBu Transformer Output

■ 'Old' yet 'New' Sound

【Specifications】

■ Input Impedance: >40kΩ (Balanced)

■ Output Impedance: 85Ω (Transformer Balanced)

■ Operating Level: -10 dBu to +20 dBu

■ Clipping Level: +28 dBu

■ Noise: <-98 dBu (+10 dBm output, unweighted, 20-20 kHz)

■ Frequency Response: 30-20 kHz (+0 dB/-0.3 dB)

■ Distortion:

0.02% (+4 dBu output @ (2kHz),

0.01% (+15dBu output @ 2kHz),

0.05% (-15dBu output @ 2kHz)

■Threshold Range… -20dBu to +10dBu

■Compression Ratio… 0 to ∞

■Release Time… 50ms to 3s

■Dimensions… W32×H67×D152mm

The 225L discrete compressor provides ideal sound processing for all studios, live stages, and broadcast stations. Regardless of threshold level or ratio settings, the output level always maintains unity gain. Various adjustments are made in real time without changing the output level. Both ""feedforward"" (NEW) and ""feedback"" (OLD) gain reduction modes are selectable on the front panel. There is also a soft or hard selector to choose between a very natural ""over-easy"" compression or a typical hard-knee type that produces a strong limiting effect. The 225L can be used individually for each channel, or two units can be stereo-linked via rear access pins for stereo use. It also has a sidechain input.
