Whimsical Raps / Atrium

Atrium is a 5-voice polyphonic analog synthesizer that combines fingertip gestures with a sound system that changes organically in response to the performance.

Building on the modular synth concepts Whimsical Raps has explored over the past decade through its Mannequins Eurorack series, this unit expands the possibilities of polyphony from a new perspective.

Each of the five analog voices can be assigned a distinct tone and movement. In addition to three types of timber modes and a low-pass gate, the Spectre section—which combines an analog filter, BBD delay, and feedback—allows you to create complex and creative sounds.

Modulation can be freely combined, and real-time operations can be recorded as gestures. Actions such as touching, sliding, and pressing directly influence the sound, allowing you to play by repeating these movements or modifying them further.

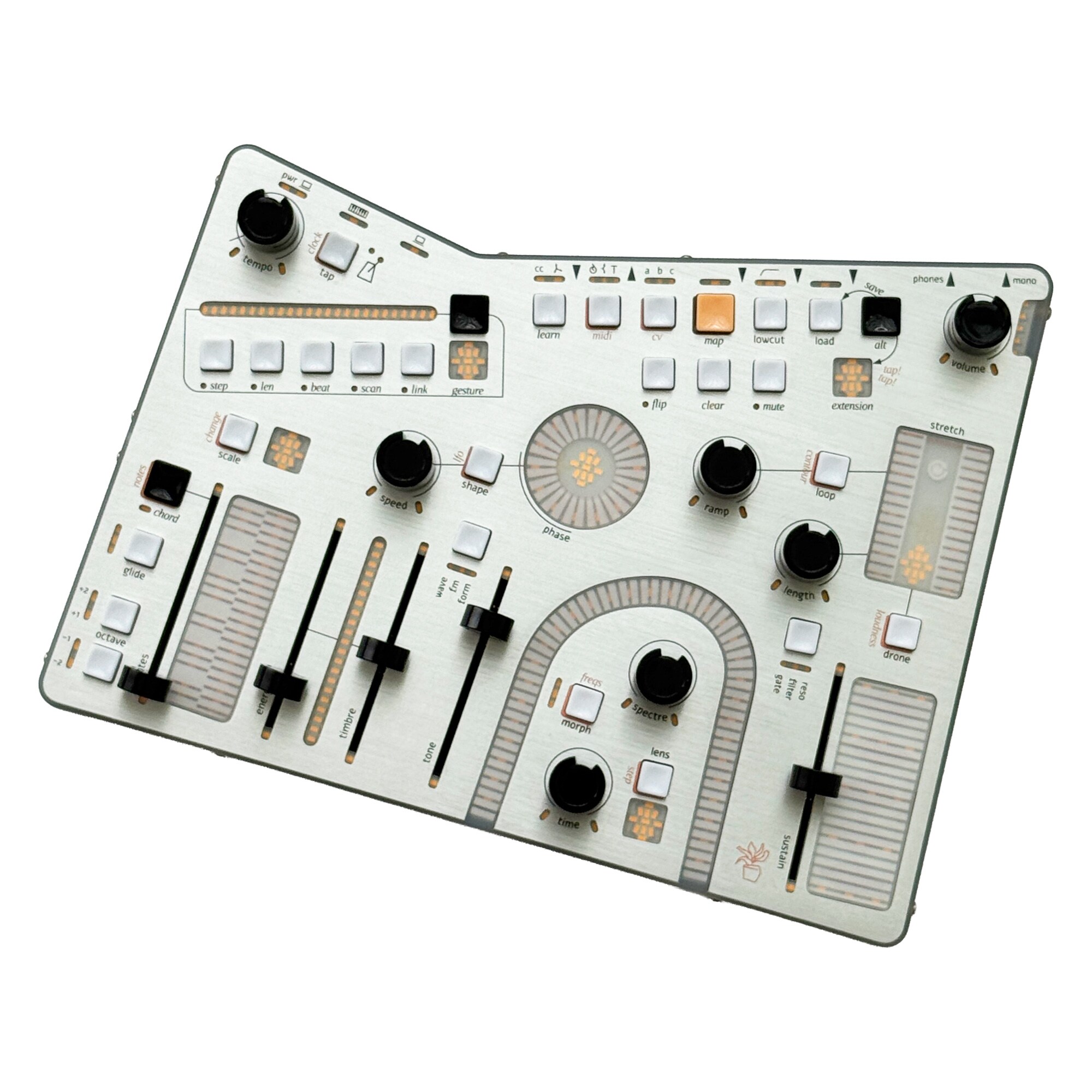

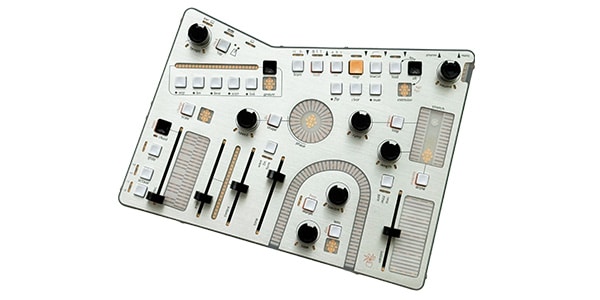

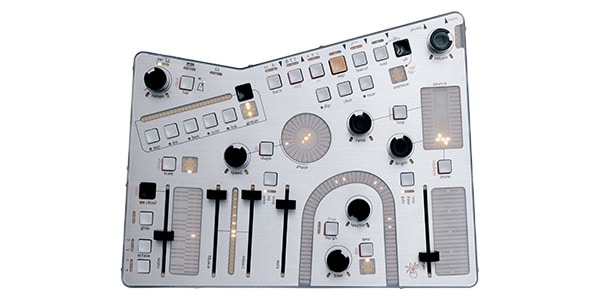

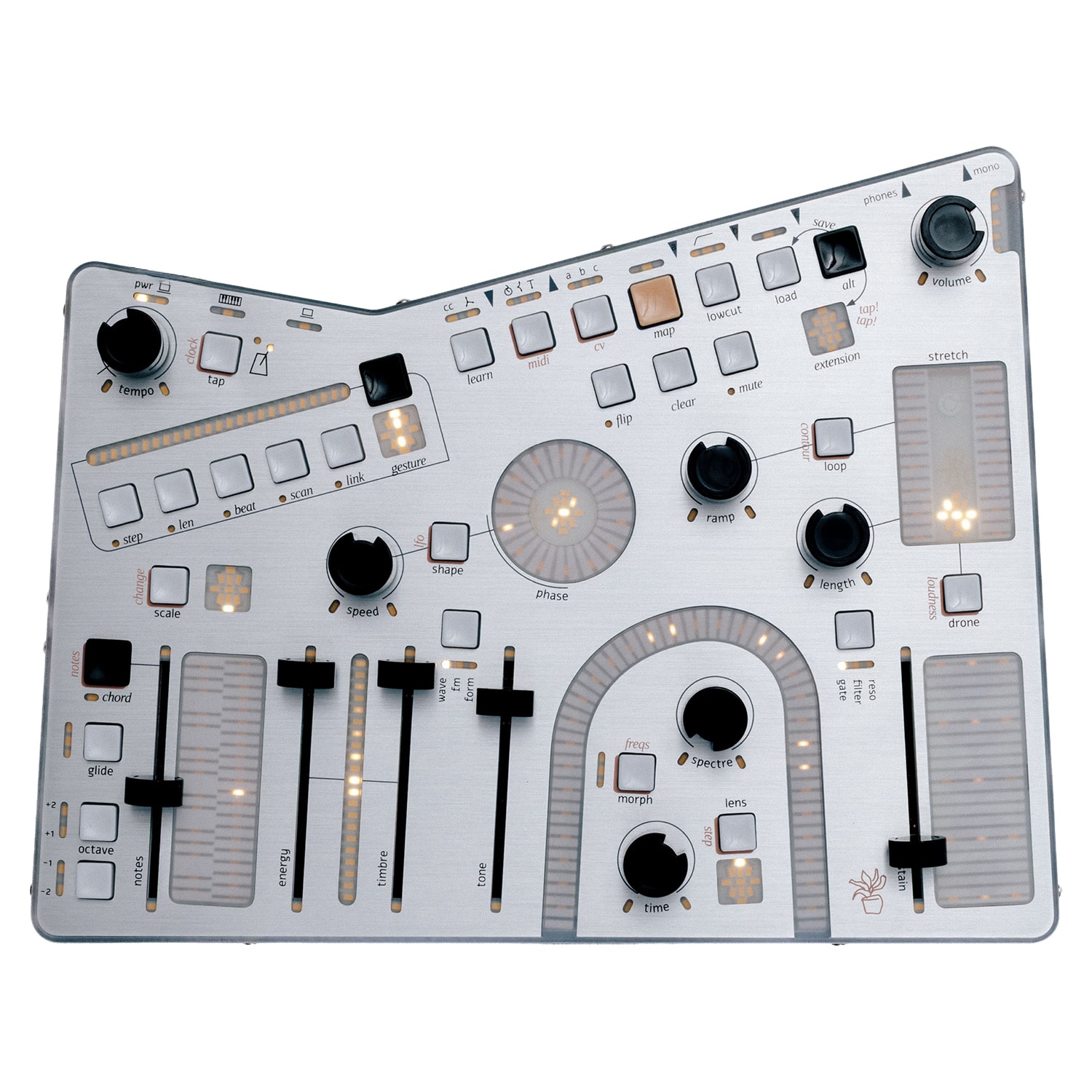

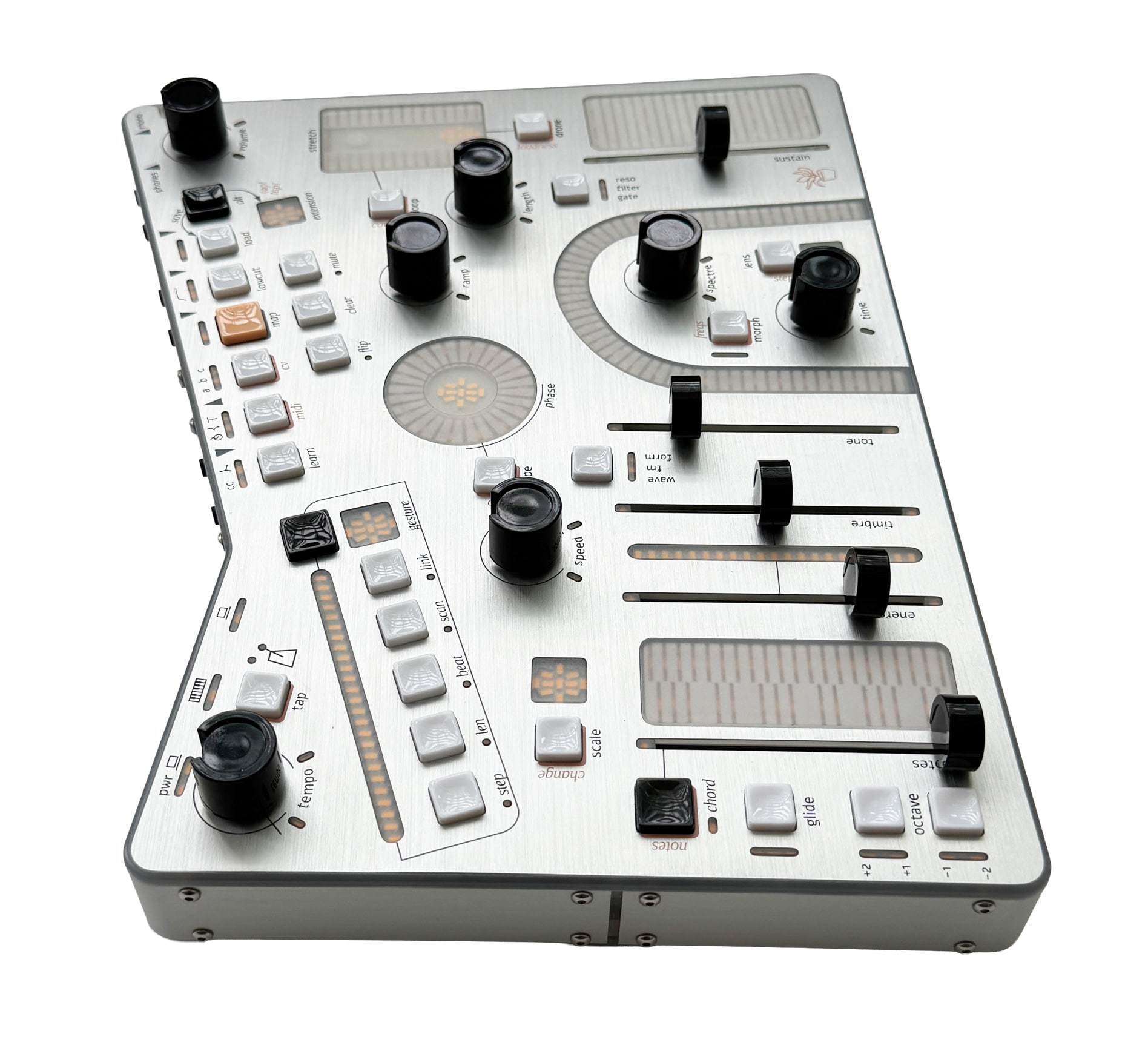

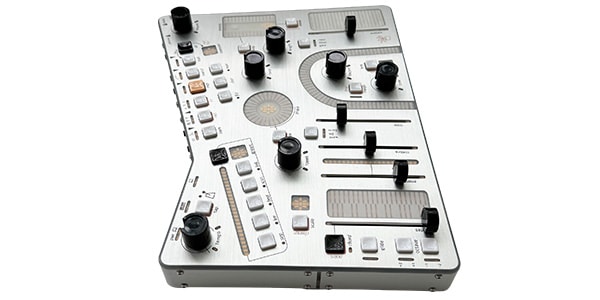

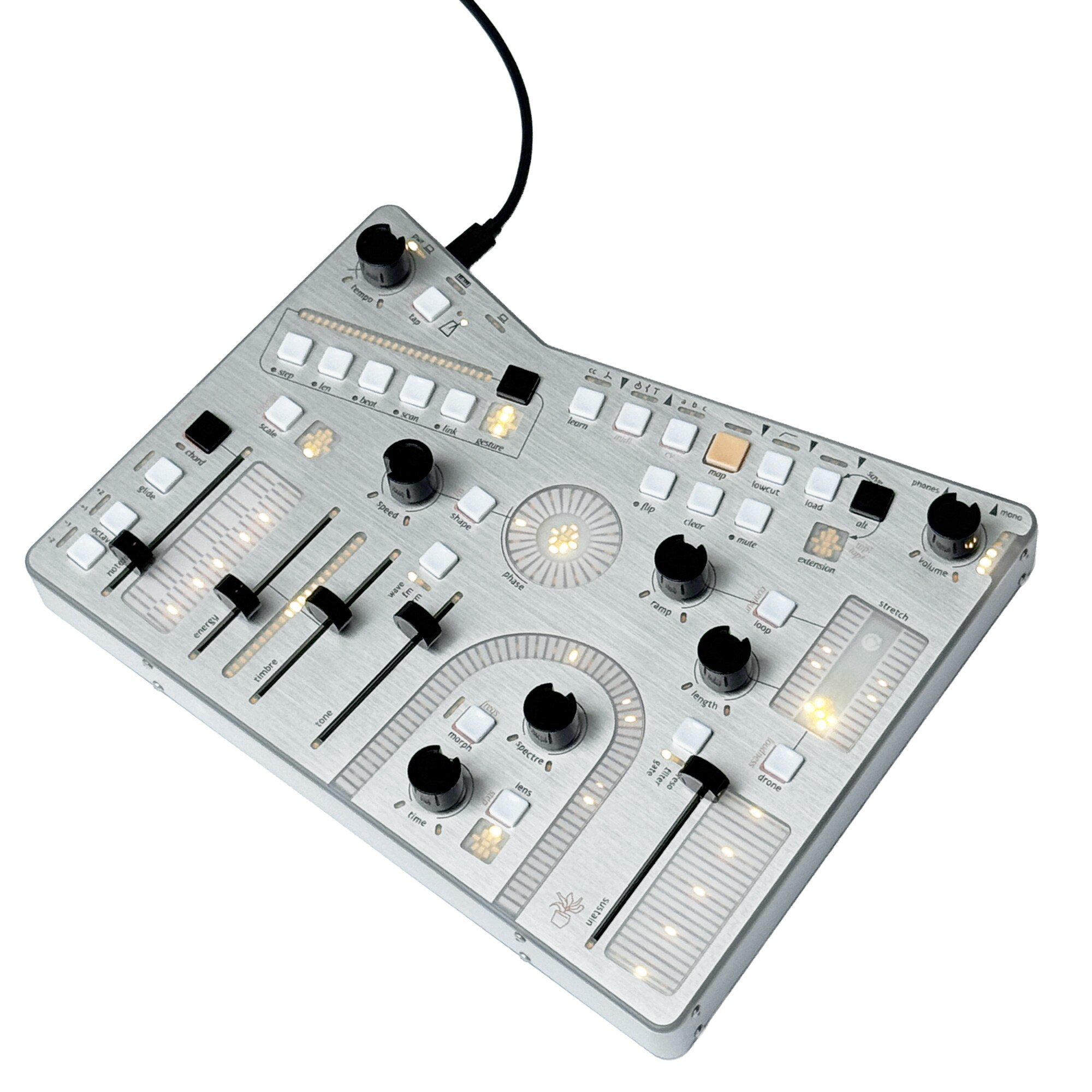

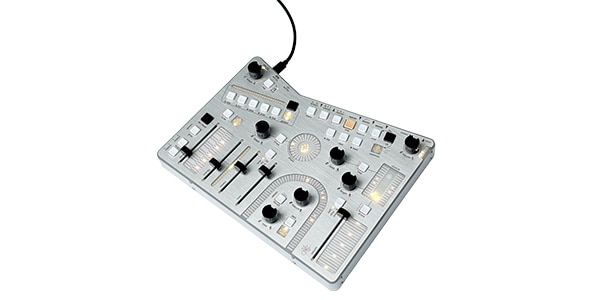

It features an intuitive, tactile interface consisting of faders, knobs, mechanical keys, and a multi-touch plate. You can engage with the sound directly—feeling the instrument’s response to your hand movements—without relying on a screen.

Atrium is an instrument that offers deep exploration, yet allows you to produce sound and begin playing from the very first moment you touch it.

Composing.
Expressing.
Performing.

Atrium opens up new possibilities for all of these.

[SPECIFICATIONS]
■ Voices
　・5 analog oscillators with wave-shaping support
　・3 timbre modes: Sub-octave + Noise (WAVE), Frequency Modulation (FM), Formant Synthesis (FORM)
　・Low-pass gates × 5: 3 modes (amp + filter, filter, resonant filter)

■ Spectre ? Resonant Tone Shaper
　・Analog bandpass filters × 3
　・BBD delays × 2 placed within the feedback loop
　・Built-in sequencer

■ Variable high-pass filter (6dB)

■ Gesture Recording
　・Recorders × 5
　・Multiple parameters can be recorded in a single recording
　・Any operation can be recorded
　・Optional quantization of recording length and playback start/stop
　・Step-by-step or continuous playback
　・No limit on recording time
　・Timing can be linked between recorders
　・Variable playback rate (adjusted via clock speed)

■ Modulation
　・Any modulation source can be mapped to any parameter
　・Depth and polarity can be set continuously for each mapping
　・No limit on the number of mappings
　　・Clock: Continuous time setting or tap tempo (supports musical division/multiplication)
　　・LFO: Polyphonic, 11 default waveforms, phase offset between voices
　　・Contour: Polyphonic envelope, loopable, with individual timing stretch/compression per voice
　　・6 additional sources generated from the synthesizer’s state
　　・External sources from MIDI and CV inputs

■ Patch Storage
　・5 built-in patch slots
　・Instant recall
　・Patch management via companion software

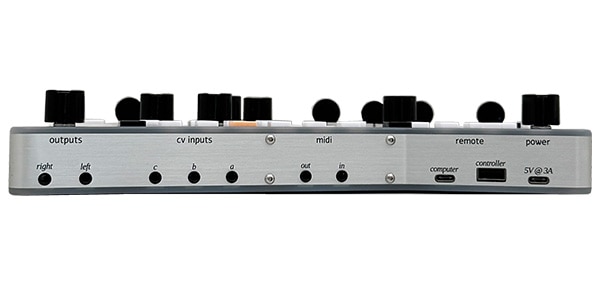

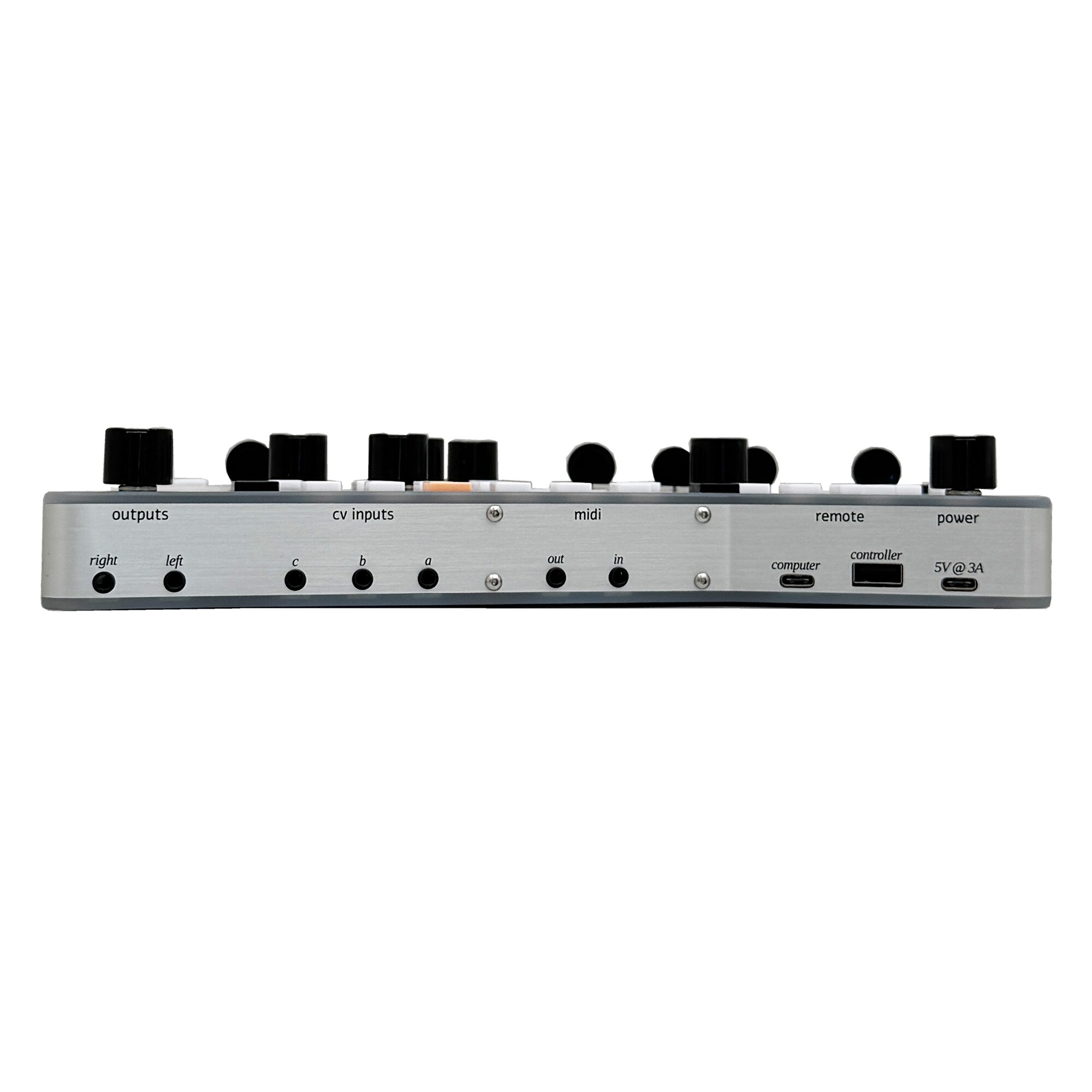

■ Hardware
　・MIDI Input (3.5mm): Supports both Type A and Type B
　・MIDI Output (3.5mm): Type A
　・CV Inputs × 3 (3.5mm, ±5V range, protected up to ±12V)
　・Stereo Output (3.5mm)
　・Dual Mono (left/right)
　・Headphones / Stereo TRS (left)
　・Mono Mix (right)
　・USB-C Power: 5V, 3A
　・USB-A Host: Allows connection of MIDI or serial devices (keyboards, controllers). Supplies up to 900mA of power
　・USB-C Device: MIDI and serial communication (DAWs and other software)

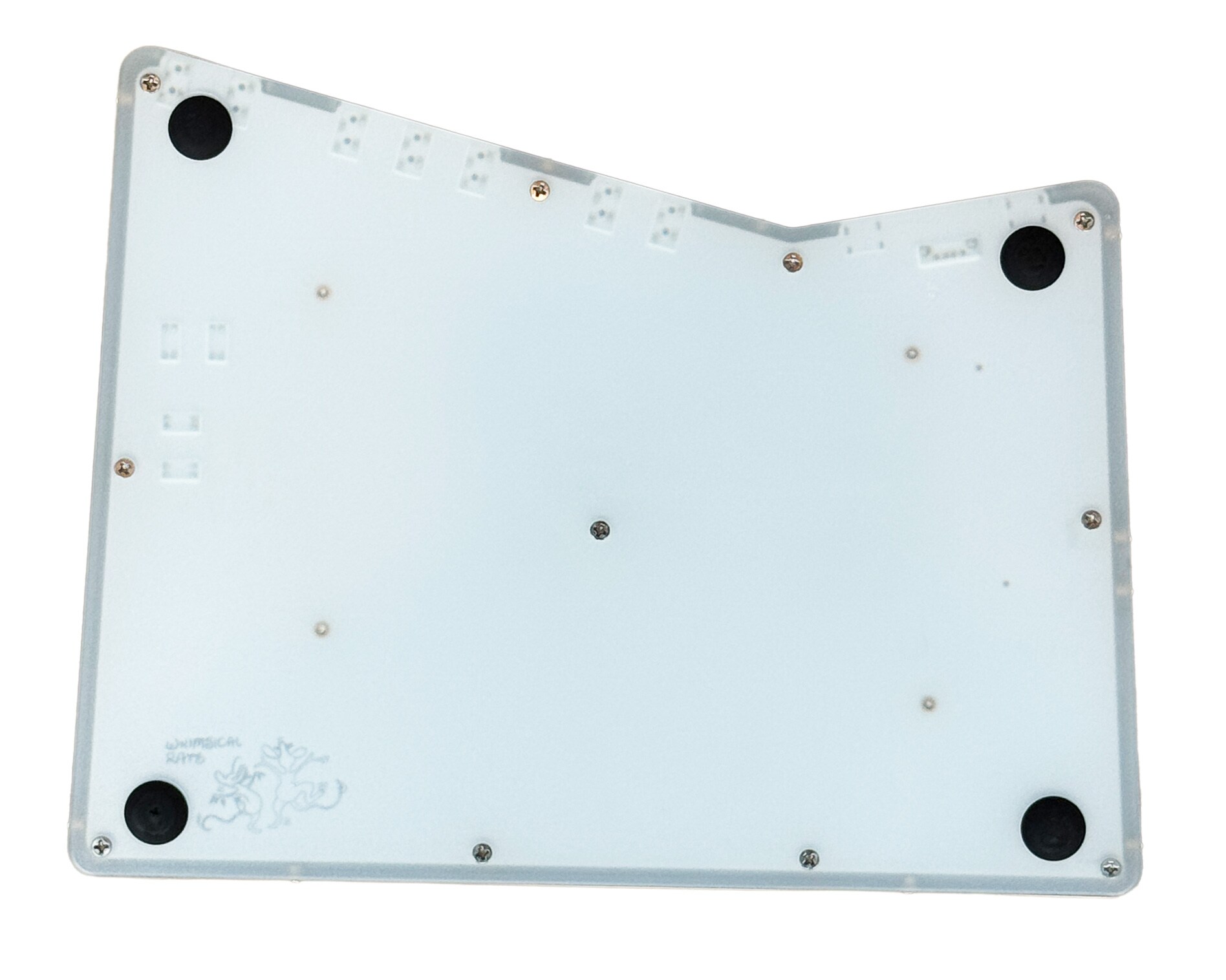

■ Dimensions and Construction

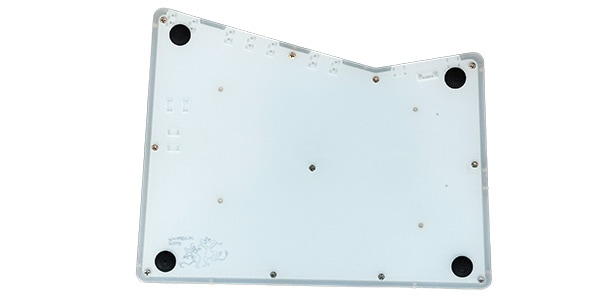

　・Polycarbonate and aluminum enclosure
　・Mechanical key switches
　・Capacitive multi-touch plate
　・286 × 222 × 48 mm, 1.06 kg

● Includes a 100V power adapter compatible with use in Japan
