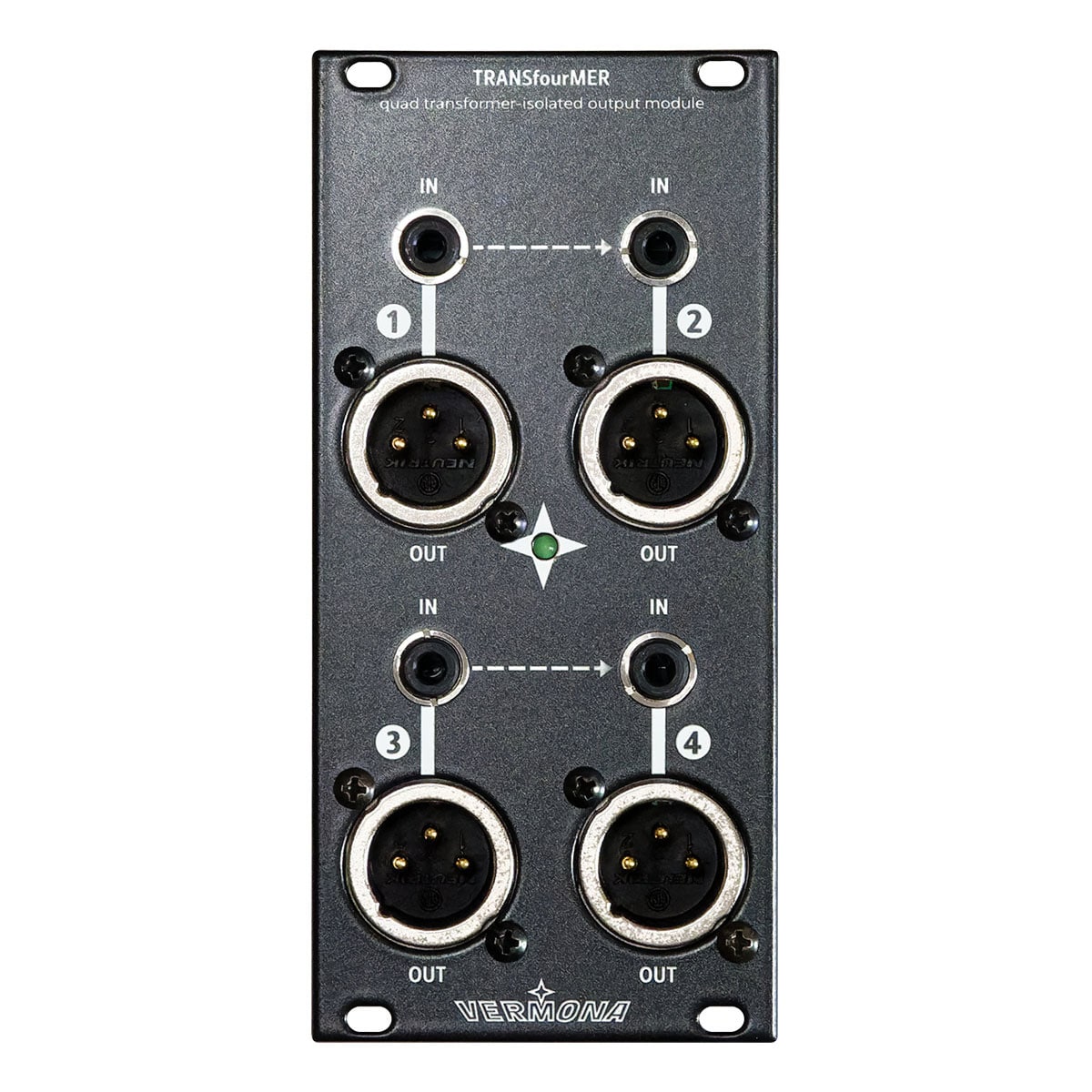

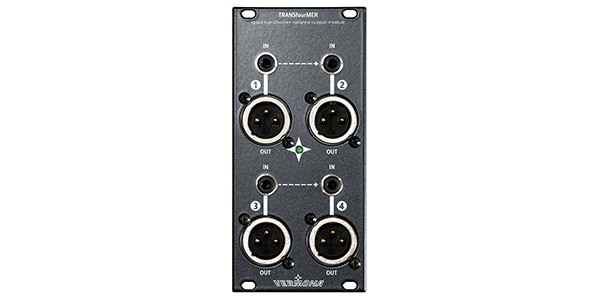

VERMONA / TRANSfourMER

If you're looking for a way to connect your Eurorack system to external devices, the TRANSfourMER is the perfect module for you. It's a 4-channel output module that optimizes your modular signals for use in professional recording studios and live performance venues.

Overview

VERMONA developed the TRANSfourMER specifically to meet the needs of Eurorack users. It features four channels, each equipped with both unbalanced and balanced outputs. This allows you to connect modular signals to external studio equipment, audio interfaces, or PA systems without worrying about input/output levels or gain staging.

Features
The TRANSfourMER offers various benefits that enhance the sound quality of your Eurorack system.

Balancing: The TRANSfourMER provides balanced audio signal transmission, which is essential for professional-grade signal handling. This helps prevent external interference noise.
Galvanic Isolation: It provides isolation from other studio and live equipment, protecting modular signals from hum caused by ground loops.
Split Function: It allows for paired routing between channels. Each channel can be used independently or as a dual splitter. For example, this enables simultaneous transmission of audio signals to both an audio interface and a monitor system without the need for additional cables or equipment.
Simple Design: The TRANSfourMER gets the job done without any complicated settings or controls. This allows performers to focus entirely on their creative expression without worrying about level indicators or gain staging.
The TRANSfourMER is extremely useful for Euro Rack modular systems, providing optimal, professional-grade signal processing at all times, whether in the studio or on stage.

Specifications
Specifications
Frequency Range: 20 Hz – 20 kHz (-1 dB)
Maximum Input Level: +30 dBu (±12 V)
Input Impedance: 10 kΩ
Maximum Output Level: +12.8 dBu (±3.4 V)
Output Impedance: <100 Ω
Signal-to-Noise Ratio: 103 dB
Total Harmonic Distortion (THD) + Noise (50 Hz – 20 kHz) <0.06%

Width: 12 HP
Depth: 43 mm
Current Consumption: +12 V: 20 mA
-12 V: 20 mA
