DJI / DJI Mic Mini 2 (2 TX + 1 Mobile RX + Charging Case)

<> The Mic Mini 2 inherits the performance of the original Mic Mini while being designed to be a stylish accessory! This set includes two transmitters, one receiver, and a charging case. It's recommended for recording conversations between two people! The receiver is very small and lightweight, and is designed to be unobtrusive even when plugged directly into a smartphone.

■Wireless Microphone for Smartphones
■Set Contents

DJI Mic Mini 2 Transmitter x2

DJI Mic Series Mobile Receiver x1

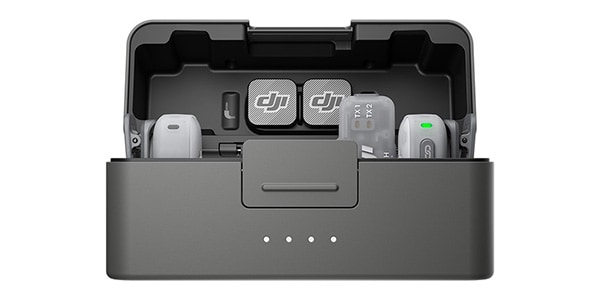

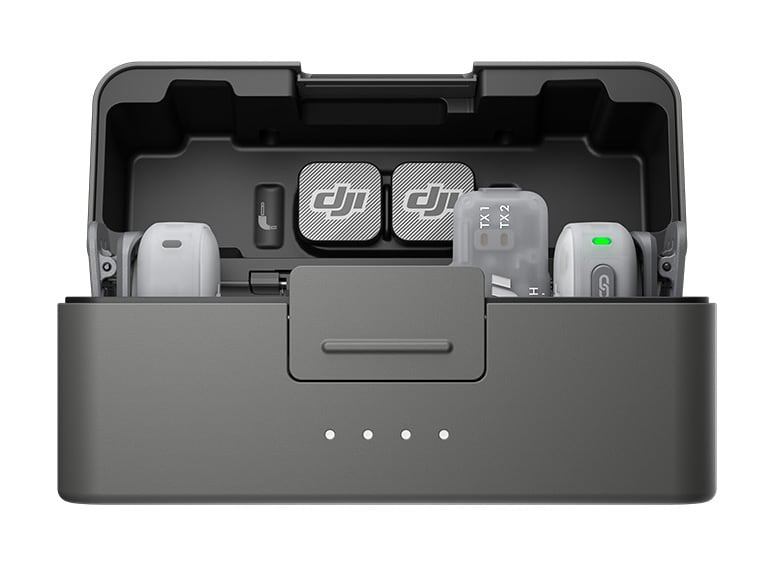

DJI Mic Mini 2 Charging Case x1

DJI Mic Mini 2 Windscreen (Black/Gray) x2

DJI Mic Mini 2 Magnetic Front Cover (Obsidian Black) x2

DJI Mic Mini 2 Magnetic Front Cover (Glaze White) x2

DJI Mic Mini 2 Magnetic Clip x2

DJI Mic 3 Magnet x2

DJI Mic USB-C Charging Cable x1

DJI Mic Mini Carrying Pouch *Contents are subject to change without notice.

【DJI Mic Mini 2 Transmitter Specifications】
■Model: DMMT02
■SIZE: 28.58 x 28.04 x 13.52 mm (Length x Width x Height)

■Weight: Approx. 11 g (excluding magnetic clip and magnet body)

■Wireless Specifications

Wireless Mode: GFSK 2 Mbps

Operating Frequency: 2.400 - 2.4835 GHz

EIRP (Equivalent Isotropic Radiated Power): <20 dBm

■Bluetooth Specifications

Bluetooth Protocol: Bluetooth 5.3

Operating Frequency: 2.400 - 2.4835 GHz

Bluetooth Transmission Power (EIRP): <20 dBm

■Battery Specifications Battery Type: Li-ion

Battery Capacity: 114 mAh

Battery Energy: 0.45 Wh

Battery Voltage: 3.87 V

■Charging Specifications

Charging Voltage: Max. 5 V

Charging Temperature Range: 5℃ - 45℃

Charging time: Approximately 70 minutes

■Operating Specifications

Operating temperature: -10℃ to 45℃

Operating time: Approximately 11.5 hours

*Operating time is measured using a DJI Mic Mini 2 (TXx2 + RXx1) with noise cancellation turned off, in a short-range environment without interference.


【DJI Mic Series Mobile Receiver Specifications】

■Model: DMMR02

■Size: 39.26 x 27.26 x 8.97 mm (L x W x H)

■Weight: Approx. 6.5 g

■Wireless Mode: GFSK 2Mbps

■EIRP (Equivalent Isotropic Radiated Power): <20 dBm

■Operating Frequency: 2.400–2.4835 GHz

■Bluetooth Protocol: Bluetooth 5.3

■Bluetooth Transmission Power (EIRP): <20 dBm

■Bluetooth Operating Frequency: 2.400–2.4835 GHz

■Charging Temperature Range: 5℃–45℃

■Operating Ambient Temperature: -10℃–45℃


【DJI Mic Mini 2 Charging Case (TX x 1 + Mobile RX x 1)】

■Model: DMMCS2

■Size: 78.8 x 33.07 x 44.70 mm (L x W x H)

■Weight: Approx. 71.0 g g (Charging Case Only)

■Battery Type: Li-ion

■Battery Capacity: 275 mAh

■Battery Energy: 1.07 Wh

■Battery Voltage: 3.87 V

■Charging Specifications: Maximum 5 V, 3 A

■Charging Temperature Range: 5℃～40℃

■Operating Temperature: 5℃～45℃

■Charging Time: Approximately 1 hour

■Transmitter Charging Cycles: Approximately 1.3 charging cycles are possible when charging one transmitter.

[General]
■ Polar Pattern: Omnidirectional
■ Frequency Response:
Low-cut Off: 20 Hz–20 kHz
Low-cut On: 100 Hz–20 kHz
■ Maximum Sound Pressure Level (SPL): 120 dB SPL
■ Maximum Input Level (3.5 mm): -
■ Equivalent Noise: 24 dBA
■ Monitor Interface Output Power: 20 mW @ 1 kHz, 32 Ω (DJI Mic Series Mobile Receiver)
■ Maximum Transmission Distance:
400m
When using a DJI Mic Mini 2 (2 TX + 1 RX) with a DJI Mic Mini Receiver, transmission is possible up to 400 m in an open environment without interference or obstacles.
300m
When two DJI Mic Mini 2 or DJI Mic Mini transmitters are connected to a DJI Mic Series Mobile Receiver and used in Green Light mode, transmission is possible up to 300m in an open environment free from interference and obstacles.

200m
When two transmitters from the DJI Mic Series Mobile Receiver (DJI Mic Mini 2, DJI Mic 3, DJI Mic Mini, or DJI Mic 2) are connected and used in Blue Light mode, transmission is possible up to 200m in an open environment free from interference and obstacles.
