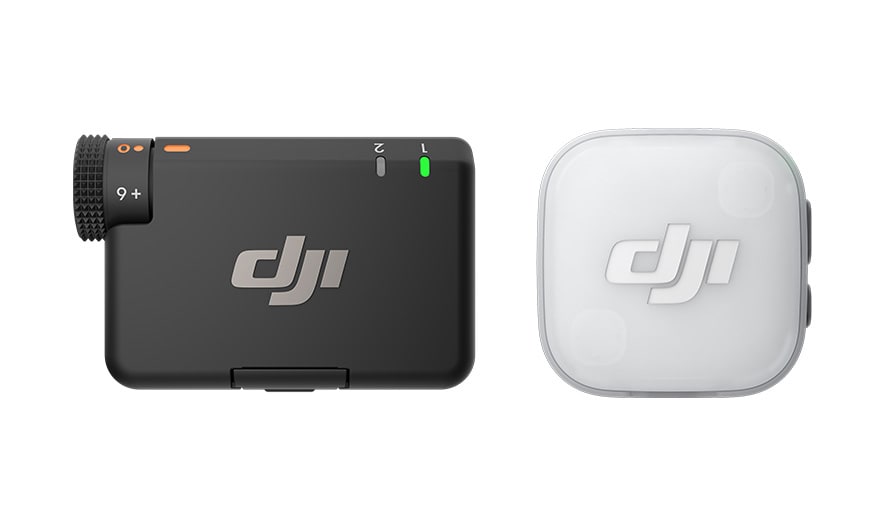

DJI / DJI Mic Mini 2 (1 TX + 1 RX)

<> The Mic Mini 2 inherits the performance of the original Mic Mini while being a stylish accessory that can be used like a fashionable accessory! This set includes one microphone with transmitter and one receiver.

■Wireless Microphone for Cameras
■Package Contents

DJI Mic Mini 2 Transmitter x1

DJI Mic Mini Receiver x1

DJI Mic Mini 2 Windscreen (Black/Gray) x1

DJI Mic Mini 2 Magnetic Front Cover (Obsidian Black) x1

DJI Mic Mini 2 Magnetic Front Cover (Glaze White) x1

DJI Mic Mini 2 Magnetic Clip x1

DJI Mic 3 Magnet x1

DJI Mic Mini Compact Carrying Pouch x1

DJI Mic Mini Smartphone Adapter (USB-C) x1

DJI Mic Mini Camera Audio Cable (3.5 mm TRS) x1

DJI Mic USB-C Charging Cable x 1

DJI Mic Mini 2 Transmitter Magnetic Charging Cable x1

【DJI Mic Mini 2 Transmitter Specifications】

■Model: DMMT02

■SIZE: 28.58 × 28.04 × 13.52 mm (Length × Width × Height)

■Weight: Approx. 11 g (excluding magnetic clip and magnet body)

■Wireless Specifications

Wireless Mode: GFSK 2 Mbps

Operating Frequency: 2.400 – 2.4835 GHz

EIRP (Equivalent Isotropic Radiated Power): <20 dBm

■Bluetooth Specifications

Bluetooth Protocol: Bluetooth 5.3

Operating Frequency: 2.400 – 2.4835 GHz

Bluetooth Transmission Power (EIRP): <20 dBm

■Battery Specifications
Battery Type: Li-ion

Battery Capacity: 114 mAh

Battery Energy: 0.45 Wh

Battery Voltage: 3.87 V

■Charging Specifications

Charging Voltage: Max. 5 V

Charging Temperature Range: 5℃ – 45℃

Charging Time: Approx. 70 minutes

■Operating Specifications

Operating Ambient Temperature: -10℃ – 45℃

Battery life: Approximately 11.5 hours

*Battery life is measured using a DJI Mic Mini 2 (TX x 2 + RX x 1) with noise cancellation turned off, in a short-range environment without interference.

【DJI Mic Mini Receiver Specifications】
■Model: DMMR01

■Size: 46.50 x 29.61 x 19.32 mm (L x W x H)

■Weight: Approx. 17.8 g (including interface cover)

■Wireless Mode: GFSK 2Mbps

■EIRP (Equivalent Isotropic Radiated Power): <20 dBm

■Operating Frequency: 2.400–2.4835 GHz

■Bluetooth Protocol: Bluetooth 5.3

■Bluetooth Transmission Power (EIRP): <20 dBm

■Bluetooth Operating Frequency: 2.400–2.4835 GHz

■Battery Type: Li-ion

■Battery Capacity: 170 mAh

■Battery Energy: 0.66 Wh

■Battery Voltage: 3.87 V

■Charging Specification: Max. 5 V

■Charging Temperature Range: 5℃–45℃

■Operating Ambient Temperature: -10℃–45℃

■Charging Time: Approx. 100 minutes

■Operating Time: Approximately 10.5 hours

Measured using a DJI Mic Mini 2 (TXx2 + RXx1) with noise cancellation turned off, during short-range audio recording without interference. The transmitter was connected to the receiver, and the receiver was connected to the camera via a camera audio cable (3.5 mm TRS).


[General]
■ Polar Pattern: Omnidirectional
■ Frequency Response:
Low-cut Off: 20 Hz–20 kHz
Low-cut On: 100 Hz–20 kHz
■ Maximum Sound Pressure Level (SPL): 120 dB SPL
■ Maximum Input Level (3.5 mm): -
■ Equivalent Noise: 24 dBA
■ Monitor Interface Output Power: 20 mW @ 1 kHz, 32 Ω (DJI Mic Series Mobile Receiver)
■ Maximum Transmission Distance:
400m
When using a DJI Mic Mini Receiver with DJI Mic Mini 2 (2 TX + 1 RX), transmission is possible up to 400 m in an open environment without interference or obstacles.

300m
When connecting two DJI Mic Mini 2 or DJI Mic Mini transmitters to a DJI Mic Series Mobile Receiver and using Green Light mode, transmission is possible up to 300 m in an open environment without interference or obstacles. 200m
When two transmitters (DJI Mic Mini 2, DJI Mic 3, DJI Mic Mini, or DJI Mic 2) are connected to a DJI Mic Series Mobile Receiver and used in Blue Light Mode, transmission is possible up to 200m in an open environment free from interference and obstacles.
