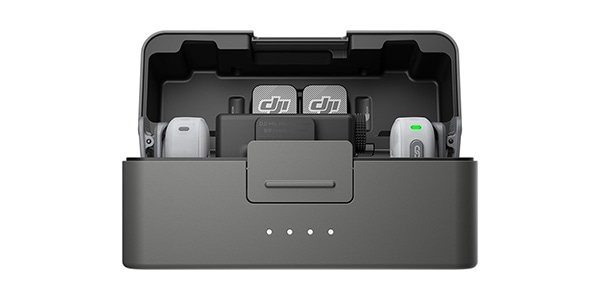

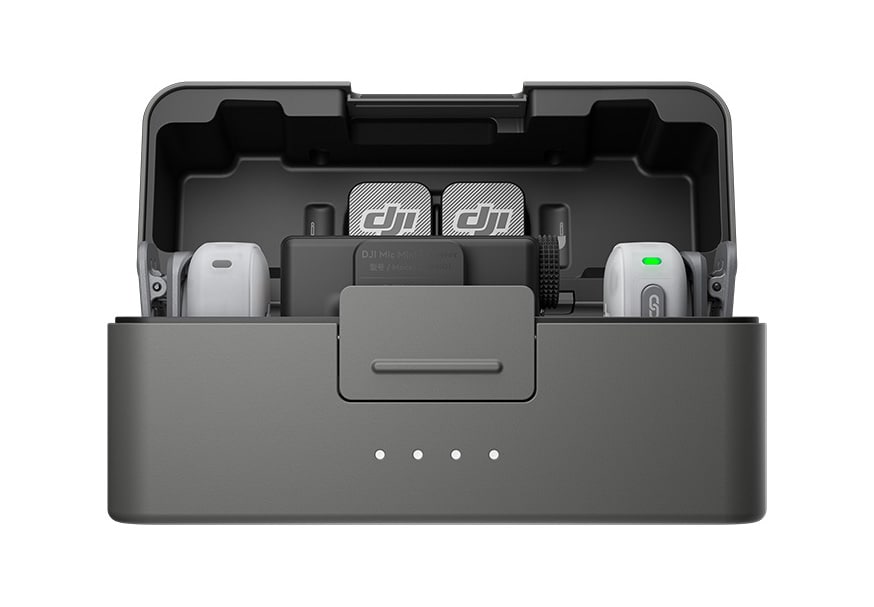

DJI / DJI Mic Mini 2 (2 TX + 1 RX + Charging Case)

<> The Mic Mini 2 inherits the performance of the original Mic Mini while being a stylish accessory! This convenient set includes two microphones with transmitters, one receiver, and a charging case!

■Wireless Microphone for Cameras
■Set Contents
DJI Mic Mini 2 Transmitter x2
DJI Mic Mini Receiver x1
DJI Mic Mini 2 Charging Case x1
DJI Mic Mini 2 Windscreen (Black/Gray) x2
DJI Mic Mini 2 Magnetic Front Cover (Obsidian Black) x2
DJI Mic Mini 2 Magnetic Front Cover (Glaze White) x2
DJI Mic Mini 2 Multicolor Magnetic Front Cover x1
DJI Mic Mini 2 Magnetic Clip x2
DJI Mic 3 Magnet x2
DJI Mic Mini Carrying Pouch x1
DJI Mic Mini Smartphone Adapter (USB-C) x1
DJI Mic Mini Camera Audio Cable (3.5 mm TRS) x1
DJI Mic USB-C Charging Cable
*Contents are subject to change without notice.

【DJI Mic Mini 2 Transmitter Specifications】
■Model: DMMT02
■SIZE: 28.58 × 28.04 × 13.52 mm (Length × Width × Height)

■Weight: Approx. 11 g (excluding magnetic clip and magnet body)

■Wireless Specifications

・Wireless Mode: GFSK 2 Mbps

・Operating Frequency: 2.400 - 2.4835 GHz

・EIRP (Equivalent Isotropic Radiated Power): <20 dBm

■Bluetooth Specifications

・Bluetooth Protocol: Bluetooth 5.3

・Operating Frequency: 2.400 - 2.4835 GHz

・Bluetooth Transmission Power (EIRP): <20 dBm

■Battery Specifications

Battery Type: Li-ion

Battery Capacity: 114 mAh

Battery Energy: 0.45 Wh

Battery Voltage: 3.87 V

■Charging Specifications

Charging Voltage: Maximum 5 V

Charging Temperature Range: 5℃ ~ 45℃
Charging time: Approximately 70 minutes
■Operating specifications
Operating ambient temperature: -10℃ to 45℃
Operating time: Approximately 11.5 hours
*Operating time is measured using a DJI Mic Mini 2 (TX x 2 + RX x 1) with noise cancellation turned off, in a short-range environment without interference.

【DJI Mic Mini Receiver Specifications】
■Model: DMMR01

■Size: 46.50 x 29.61 x 19.32 mm (L x W x H)

■Weight: Approx. 17.8 g (including interface cover)

■Wireless Mode: GFSK 2Mbps

■EIRP (Equivalent Isotropic Radiated Power): <20 dBm

■Operating Frequency: 2.400–2.4835 GHz

■Bluetooth Protocol: Bluetooth 5.3

■Bluetooth Transmission Power (EIRP): <20 dBm

■Bluetooth Operating Frequency: 2.400–2.4835 GHz

■Battery Type: Li-ion

■Battery Capacity: 170 mAh

■Battery Energy: 0.66 Wh

■Battery Voltage: 3.87 V

■Charging Specification: Max. 5 V

■Charging Temperature Range: 5℃–45℃

■Operating Ambient Temperature: -10℃–45℃

■Charging Time: Approx. 100 minutes

■Operating time: Approximately 10.5 hours

This value was measured using a DJI Mic Mini 2 (TXx2 + RXx1) with noise cancellation turned off, during short-range audio recording without interference. Connect the transmitter to the receiver, and the receiver connects to the camera using the camera audio cable (3.5 mm TRS).

[DJI Mic Mini 2 Charging Case Specifications]

■Model: DMMC02

■Size: 106.30 x 42.50 x 59.20 mm (L x W x H)

■Weight: Approx. 159.3 g (Charging case only)

■Battery Type: Li-ion

■Battery Capacity: 1950 mAh

■Battery Energy: 7.55 Wh

■Battery Voltage: 3.87 V

■Charging Specifications: Max. 5 V, 3 A

■Charging Temperature Range: 5℃～40℃

■Operating Ambient Temperature: 5℃～45℃

■Charging Time: Approx. 2 hours

■Transmitter/Receiver Charging Cycles: When charging two transmitters and one receiver simultaneously, a fully charged charging case can provide approximately 3.6 full charges.

[General]

■Polarity Pattern: Omnidirectional

■Frequency Response:

Low Cut Off: 20 Hz to 20 kHz
Low-cut On: 100 Hz to 20 kHz
■Maximum Sound Pressure Level (SPL): 120 dB SPL
■Maximum Input Level (3.5 mm): -
■Equivalent Noise: 24 dBA
■Monitor Interface Output Power: 20 mW @ 1 kHz, 32 Ω (DJI Mic Series Mobile Receiver)
■Maximum Transmission Distance:
400m
When using a DJI Mic Mini Receiver with DJI Mic Mini 2 (2 TX + 1 RX), transmission is possible up to 400 m in an open environment without interference or obstacles.

300m
When connecting two DJI Mic Mini 2 or DJI Mic Mini transmitters to a DJI Mic Series Mobile Receiver and using Green Light mode, transmission is possible up to 300 m in an open environment without interference or obstacles.

200m
When two transmitters (DJI Mic Mini 2, DJI Mic 3, DJI Mic Mini, or DJI Mic 2) are connected to a DJI Mic Series Mobile Receiver and used in Blue Light Mode, transmission is possible up to 200m in an open environment free from interference and obstacles.
