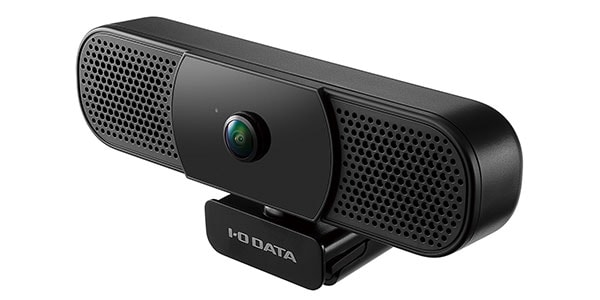

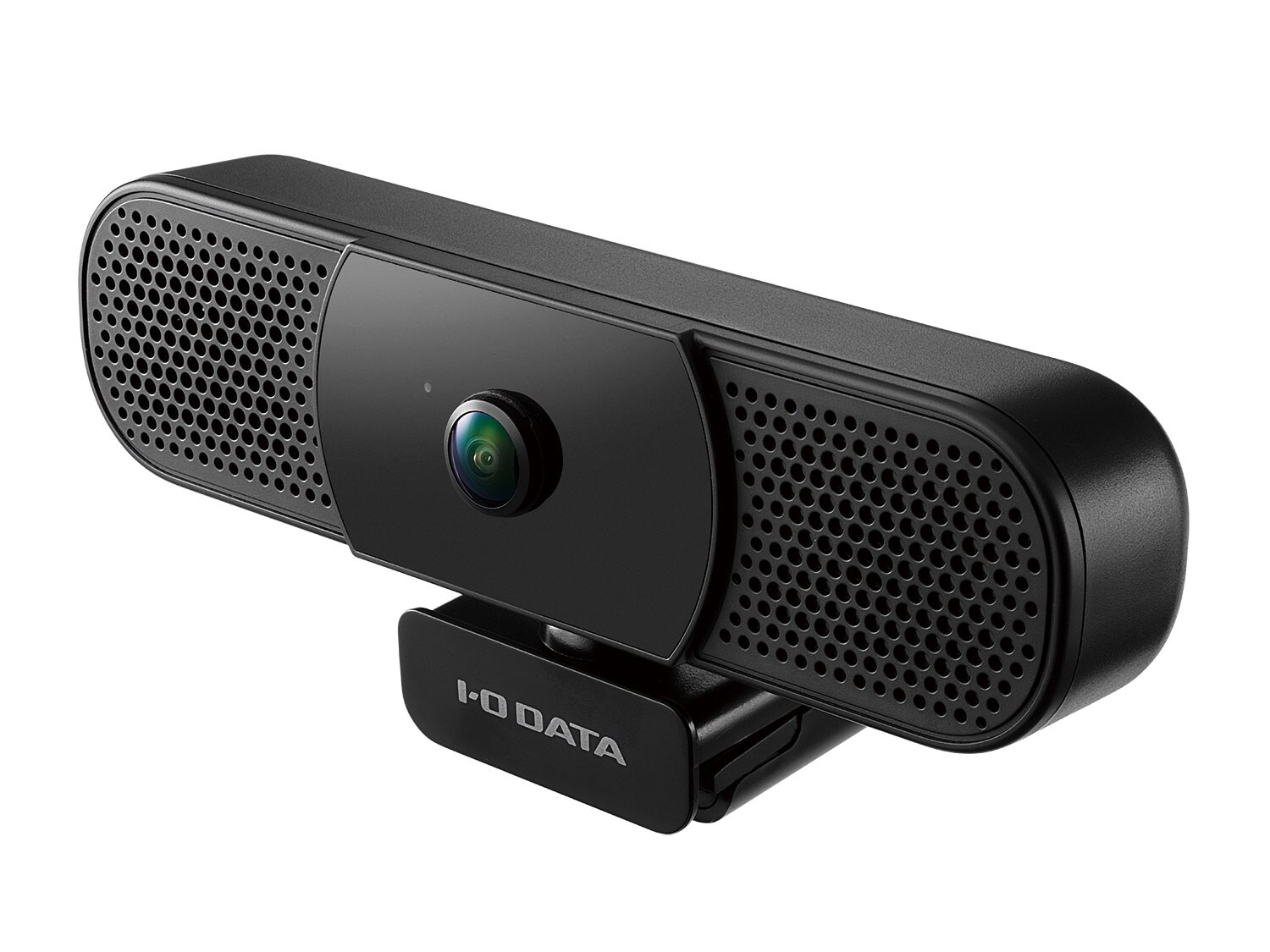

I-O DATA / TC-MC400W

The TC-MC400W is a USB camera with a microphone that achieves an ultra-wide angle of view of 180 degrees.

■Webcam

【Specifications】
■Camera: 3.6-megapixel CMOS sensor

■Maximum Resolution: 2560×1440

■Shooting Distance: 15cm～∞

■Aperture: F2.0

■Maximum Frame Rate: 30fps

■Supported Formats: MJPEG, YUV

■Field of View:

・180° Mode: Approx. 180° Horizontal / Approx. 100° Vertical

・150° Mode: Approx. 150° Horizontal / Approx. 86° Vertical

・120° Mode: Approx. 120° Horizontal / Approx. 69° Vertical

■Focus: Fixed

■Microphone: Omnidirectional ×2

■Sound Pickup Range: Recommended Approx. 2m / Max. Approx. 4m

■Audio Processing: Noise Reduction, Auto Gain Control

■Tested Apps: Microsoft Teams, Skype, Zoom, Google Meet, Cisco Webex Meetings

■Tripod Compatible: Yes (1/4 inch)

■Stand Angle Adjustment: 360° Rotation Left/Right / ±15° Up/Down

■Interface: USB 2.0

■Power Supply: USB bus power

■Certifications: RoHS compliant (10 substances), VCCI Class B

【Dimensions/Weight】

■Main Unit: Approx. 158(W) x 73(D) x 65(H) mm (excluding protrusions) / Approx. 220g

■Cable Length: Approx. 3m

【Compatible Devices/OS】

■Compatible Devices: Windows PCs with USB 2.0 ports (USB-A connector), Apple Mac series, Chromebooks, and our Android STBs (DS-ASTB2 only)

■Compatible OS: Windows 11, Windows 10/10 IoT Enterprise, macOS 11-15, macOS 26, Chrome OS

【Included Accessories】

・Fixing screws

・Anti-slip sheet

・Instruction manual
