I-O DATA / LCD-YC162HX

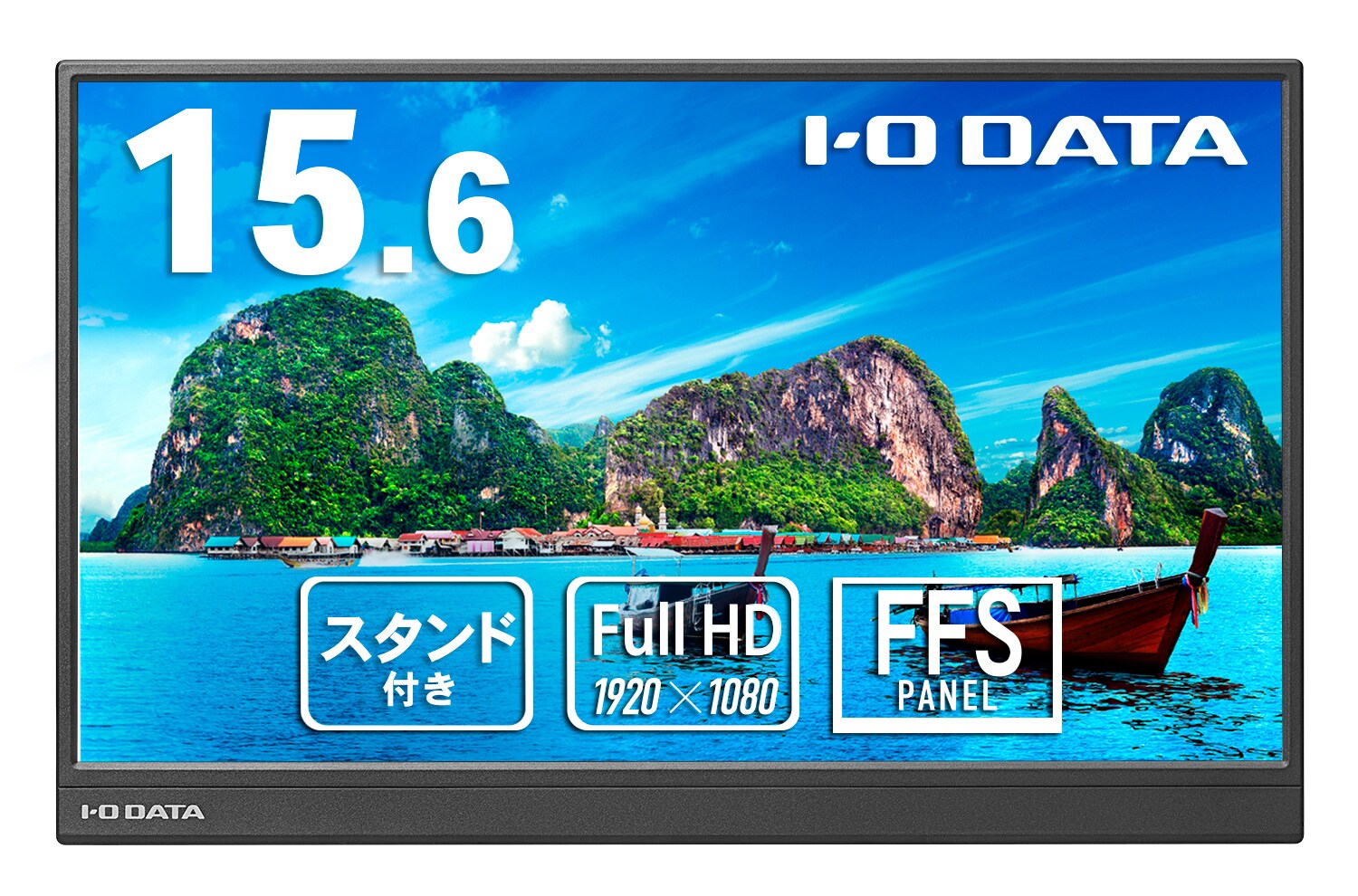

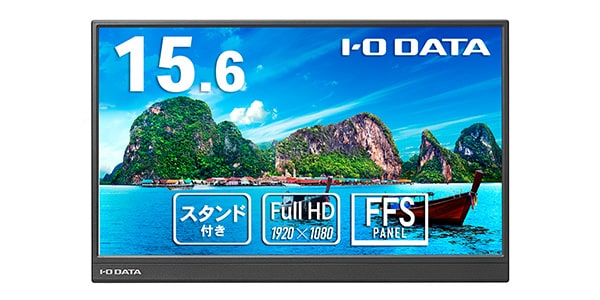

The LCD-YC162HX is a 15.6-inch mobile display that can be stacked on top of a notebook PC.

■Mobile Display

【Compatible Devices】

■Compatible Devices: Windows PCs, Macs, Chromebooks

■Compatible Game Consoles: Nintendo Switch (HDMI only), PlayStation 4, PlayStation 4 Pro, PlayStation 5, Xbox Series X, Xbox Series S

*Compatibility may vary depending on the game console version.

【Specifications】
■Color: Black
■Panel Type: 15.6-inch Wide TFT/FFS (Non-Glossy)
■Maximum Display Resolution: 1920×1080
■Pixel Pitch: 0.17925(H)×0.17925(V)mm
■Display Area: 344.16(H)×193.59(V)mm

■Maximum Display Colors: 16.77 million colors

■Viewing Angle: 178° Vertically, 178° Horizontally

■Maximum Brightness (Typical Value): 300cd/m²

■Contrast Ratio (Typical Value): 1000:1

*With CREX Level 2 setting: 13840:1

■Response Time: 5ms [GTG]

*With Overdrive Level 2 setting

■Horizontal Scan Frequency:

・HDMI: 31.0～67.5kHz

・USB Type-C: 31.0～67.5kHz

■Vertical Scan Frequency:

* HDMI: 59.9–60.3Hz

* USB Type-C: 59.9–60.3Hz

* Maximum Refresh Rate (at Maximum Resolution): 60Hz

* Input Terminals: HDMI (mini), USB Type-C (DisplayPort Alt Mode)

* USB Ports: -

* Audio Input/Output:

* Audio Input: -

* Speakers: -

* Headphone Jack: Stereo mini jack φ3.5mm

* Audio Output: -

* Rated Voltage: DC5V

* Power Consumption:

* Maximum: 7.7W

* Normal Use (On Mode): 4.8W

* Annual Power Consumption: 14.96kWh

* Standby: 0.1W

* Plug & Play: VESA DDC2B

* External Dimensions (W×D×H):

* Stand at 20°–60°: Approx. 359×88–207×217–123mm (including rubber feet)

• Stand dimensions when folded: Approximately 359 x 16 x 226 mm (excluding protrusions)

*Please refer to the specifications of the included stand in the stand set model at the bottom of the page for dimensions of the stand alone and when combined.

■Weight:

・With stand: Approx. 0.8kg

・Without stand: -

■Tilt angle: Up 20-60°

■Swivel angle: -

■Height adjustment: -

■Pivot (rotation): -

■VESA mount interface: -

■Anti-theft hole: ○

■Packaged weight/dimensions (W×D×H):

・Unit only: Approx. 1.8kg / Approx. 442×117×351mm

・Stand set: Approx. 2.3kg / Approx. 442×117×351mm

■Operating temperature conditions:

・Operating: 0-40℃

・Storage: -20-60℃

■Operating humidity conditions: 20-80% (non-condensing)

■Estimated assembly time: Approx. 1 minute (1 adult)

Time from unpacking to removing the product and setting it up.

■Certifications and Legal Regulations: J-Moss Green Mark, PC Green Label (Ver.14★★☆), PC Recycling Mark, RoHS Directive Compliant (10 substances), VCCI Class B, Green Purchasing Law, International Energy Star Program

【Included Accessories】

・HDMI Cable (approx. 1.5m, HDMI-HDMI (mini))

・USB Cable (approx. 1.5m, C-C USB 3.2 Gen1)

・Carrying Case

・Stand

・Stand Storage Case

・Please Read Carefully
