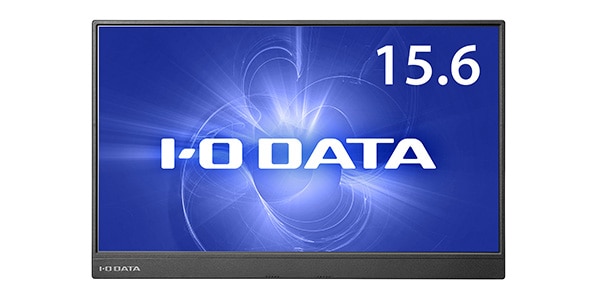

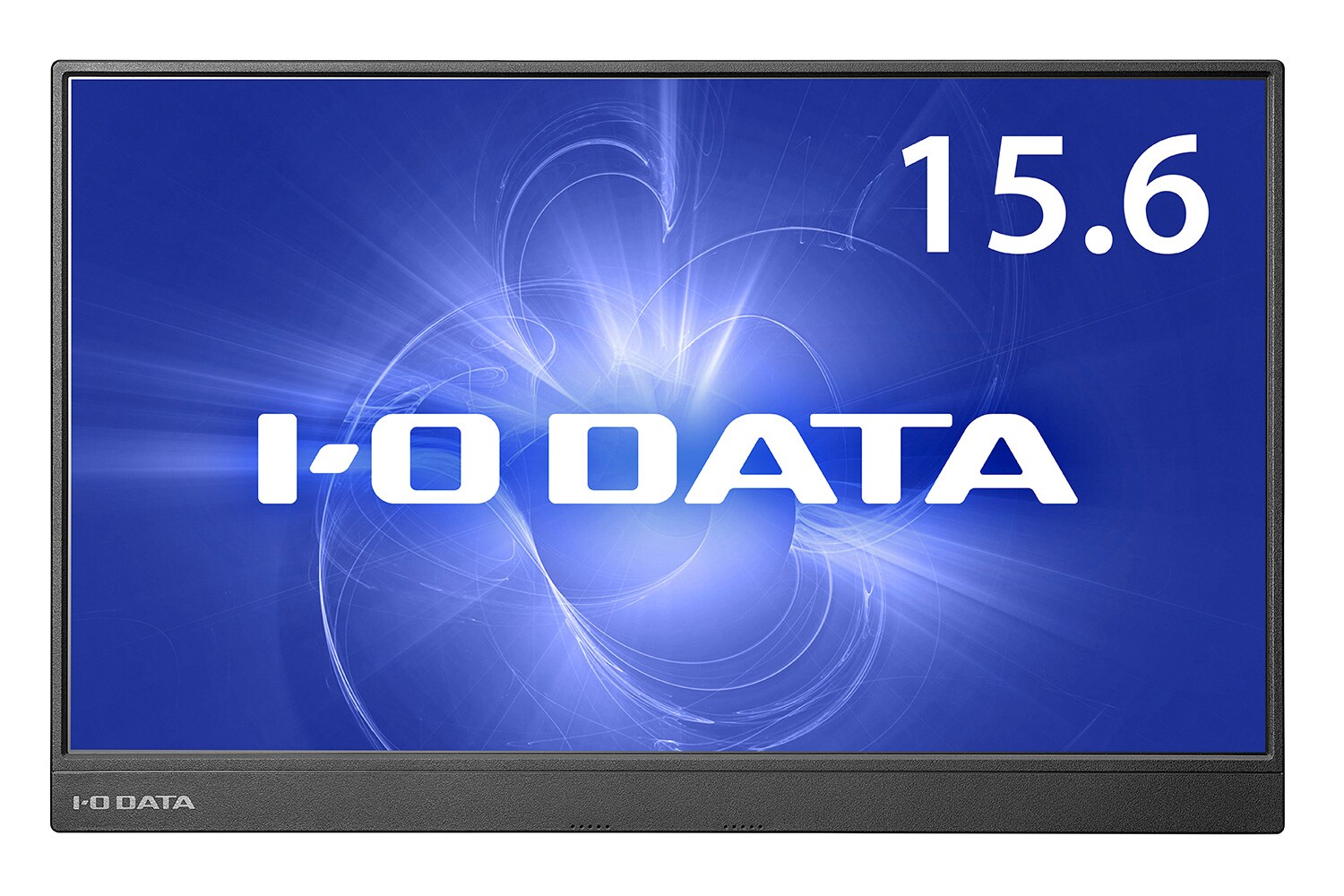

The 15.6-inch mobile display ""LCD-CF161XDB-M"" boasts a slim and lightweight body that is approximately 7mm at its thinnest point and weighs approximately 730g.
■Mobile Display

【Specifications】

■Color: Black

■Panel Type: 15.6-inch Wide TFT/ADS

■Panel Surface Treatment: Non-glare

■Maximum Display Resolution: 1920×1080

■Pixel Pitch (mm×mm): 0.17925(H)×0.17925(V)

■Display Area (mm×mm): 344.16(H)×193.59(V)

■Maximum Display Colors: 16.19 million colors (pseudo-full color)

■Viewing Angle: Up/Down: 170° Left/Right: 170°

■Maximum Brightness (Typical Value): 250 cd/m²

■Contrast Ratio (Typical Value): 800:1 *CREX Level 2 setting: 33600:1

■Response Time: 21ms [GTG] *Overdrive Level 2 setting: 4ms [GTG]

■Horizontal Scan Frequency (kHz):

・HDMI (mini): 15.7~67.5

* USB-C: 31.0–67.5

* Vertical Scan Frequency (Hz):

* HDMI (mini): 59.9–60.0

* USB-C: 59.9–60.3

* Maximum Refresh Rate (Hz) [at Maximum Resolution]: 60

* Video Input Terminals: HDMI (mini), USB Type-C (DisplayPort Alt Mode)

* USB Ports:

* Upstream: –

* Downstream: –

* Audio Input/Output:

* Audio Input: –

* Speakers: 0.5W + 0.5W (Stereo)

* Headphone Jack: Stereo mini jack φ3.5mm

* Audio Output: –

* Rated Voltage: AC100V 50/60Hz (Power supplied from AC adapter) / DC5V (Power supplied from USB Type-C)

* Power Consumption:

* Maximum: 9.2W

* Normal Use: 5.9W

* Annual Power Consumption: 20.3kWh

• Standby Power Consumption: 0.4W

■ Power Management: VESA DPM Compatible

■ Plug & Play: VESA DDC2B

■ External Dimensions (W×D×H):

• Stand at 45°: Approx. 355×167×161mm (including rubber feet)

• Stand folded: Approx. 355×224×14mm (including rubber feet)

■ Weight:

• With stand: Approx. 730g

• Without stand: - (Stand is not easily removable)

■ Tilt Angle: Max. 62°

■ Swivel Angle: -

■ Height Adjustment: -

■ Pivot (Rotation): -

■ VESA Mount Interface: -

■ Anti-theft Hole: ○

■ Packaged Weight/Dimensions (W×D×H): Approx. 1.8kg / Approx. 448×348×109mm

■ Operating Temperature Conditions:

• Operating: 0℃~40℃

• Stored: -20℃~60℃

■ Operating Humidity Conditions: 20% to 80% (non-condensing)

■ Standards and Regulations: VCCI Class B, J-Moss Green Mark, RoHS Directive compliant (10 substances), Electrical Appliances and Materials Safety Act (AC adapter), International Energy Star Program, Green Purchasing Law, PC Recycling Mark

■ Included Accessories:

・HDMI Cable (1.5m, HDMI-HDMI (mini))

・USB Cable (1.5m, C-C USB3.2 Gen1)

・AC Adapter (PSE compliant)

・Carrying Case

・Instruction Manual
